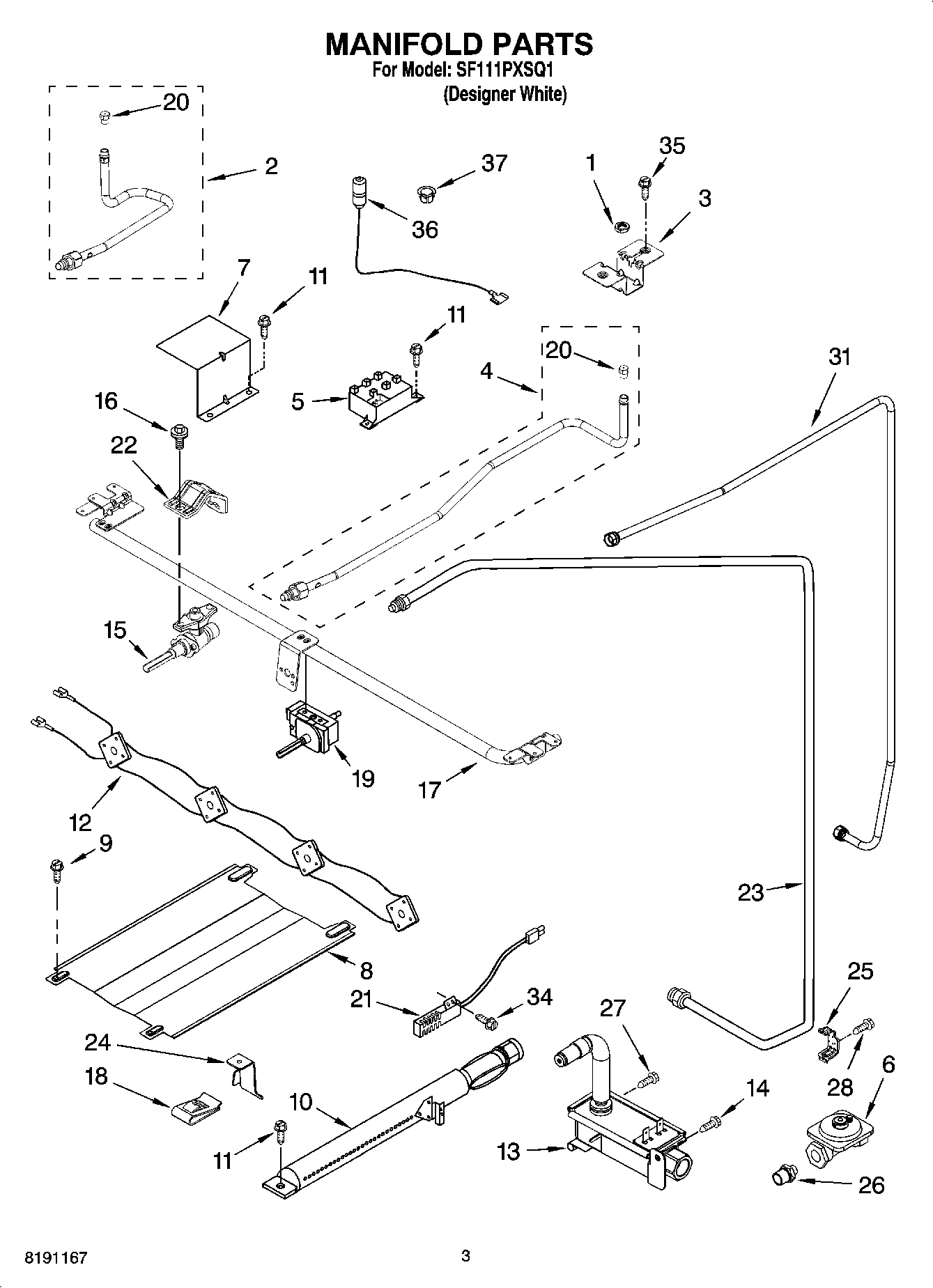

SF111PXSQ1 03 – MANIFOLD PARTS

Products

Position	Product
1	WPY703856 Whirlpool Nut
2	WP98017582 Whirlpool Venturi
3	WP98017741 Whirlpool Mounting Bracket
4	WP98017359 Whirlpool Venturi Assembly
5	W11590249 Whirlpool Spark Module
6	Regulator
7	98007192 Whirlpool Cover Model
8	98015099 Whirlpool Oven Burner Baffle
9	SCREW
10	WP98012138 Whirlpool Oven Burner
12	WPW10361492 Whirlpool Wire Harness
13	WP98014893 Whirlpool Gas Safety Valve Assembly
14	W10837731 Whirlpool Screw Assembly
15	Valve, Burner (4)
16	98017517 Whirlpool Oven Screw
17	98017558 Whirlpool Oven Manifold Pipe
18	98009179 Whirlpool Oven Nut
19	WP3400882 Whirlpool Screw
19	WPW10641988 Whirlpool Oven Thermostat
20	WP98017348 Whirlpool Orifice
21	W10918546 Whirlpool Oven Range Igniter
22	98017516 Whirlpool Mounting Bracket
23	WPW10469571 Whirlpool Gas Tubing
24	98013314 Whirlpool Oven Support Bracket
25	98007410 Whirlpool Oven Mounting Bracket
26	98007431 Whirlpool Oven Fitting
27	98013634 Whirlpool Oven Screw
28	Screw, Ground
31	WP98017171 Whirlpool Gas Tubing
34	W11676351 Whirlpool Screw
35	W10837674 Whirlpool Screw
36	WPW10209657 Whirlpool Oven Surface Igniter
36	WPW10209656 Whirlpool Surface Ignitor
37	WPW10032010 Whirlpool Spud Orifice
37	WPW10278150 Whirlpool Clip Assembly
37	Following Parts Not Illustrated
