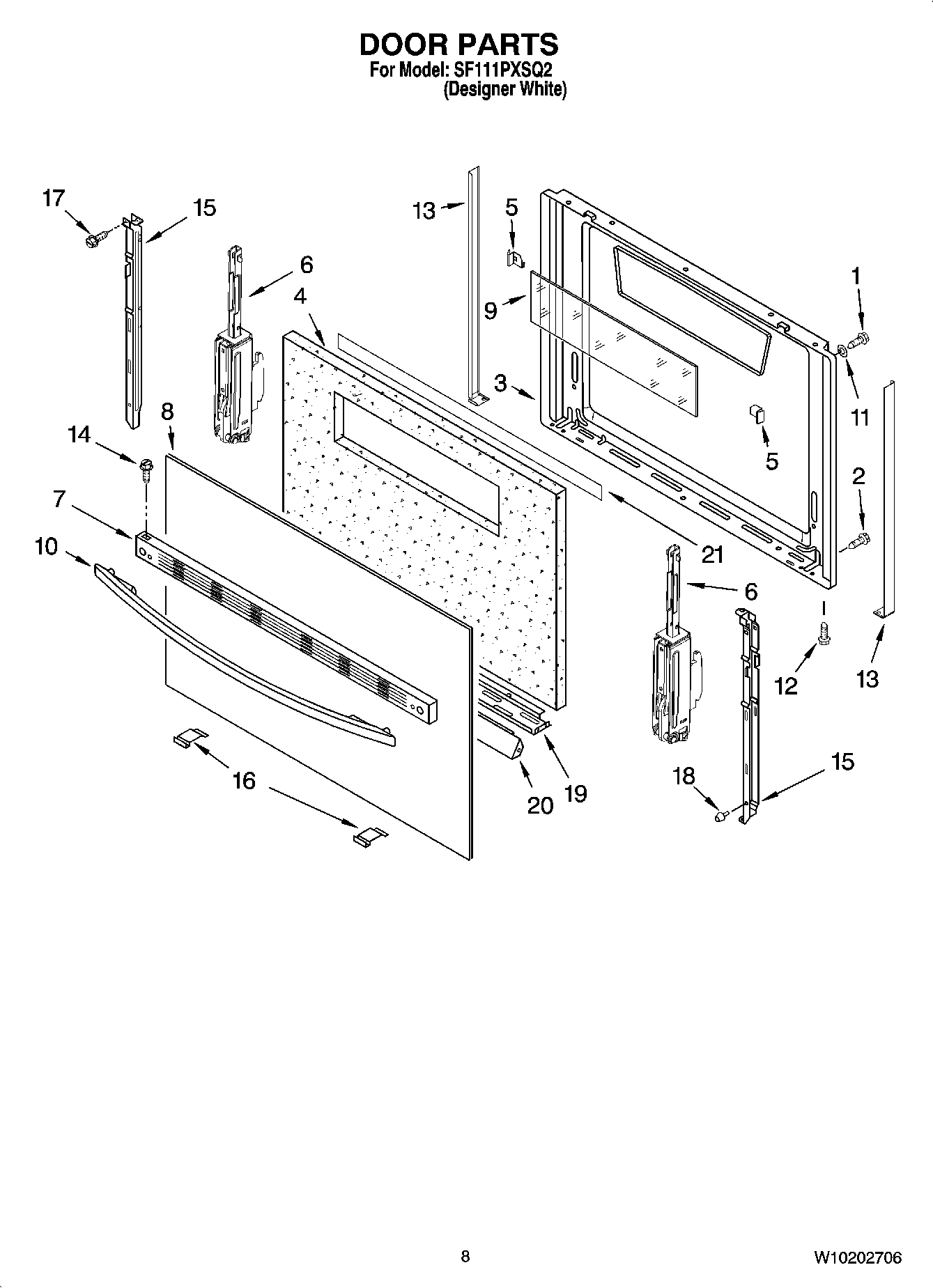

SF111PXSQ2 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

SF111PXSQ2 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

SF111PXSQ2 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI128911A
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
CLIP, WIRE
8212471 Whirlpool Oven Paint
3196696 Whirlpool Clip
Grease
WPL 8316781
98015022 Whirlpool Bushing Assembly
WP3391018 Whirlpool Wire Tie
WPL ARI128912A
WPW10477747 Whirlpool Anchor Tip
6610437 Whirlpool Wire Harness
WPL ARI128907A
WPL ARI128908A
WPL ARI128909A
WPL ARI128910A
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
549193 Whirlpool Refrigerator Power Clamp
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
WPW10208653 Whirlpool Insulation
WPL 799832
1SCREW
2W11206744 Whirlpool Screw
398010182 Whirlpool Door Liner
4Insulation, Door
598004952 Whirlpool Oven Clip
598004953 Whirlpool Clip
6Hinge, Door (Right)
7WHITE
8Panel, Door
9WP98006801 Whirlpool Door Glass
10WP98017790W Whirlpool Door Handle
11Actuator (2)
12WP59002061 Whirlpool Microwave Screw
13Side Trim, Door (Right Hand)
13Side Trim, Door (Left Hand)
14WP98008544 Whirlpool Screw Assembly
1598004564 Whirlpool Oven Retainer
1598004629 Whirlpool Oven Retainer
16WP98010185 Whirlpool Door Trim
17WP3400805 Whirlpool Screw Assembly
1898004227 Whirlpool Oven Bumper
1998004938 Whirlpool Oven Retainer
20Insulation, Retainer-Bottom
21Retainer, Upper (2)
