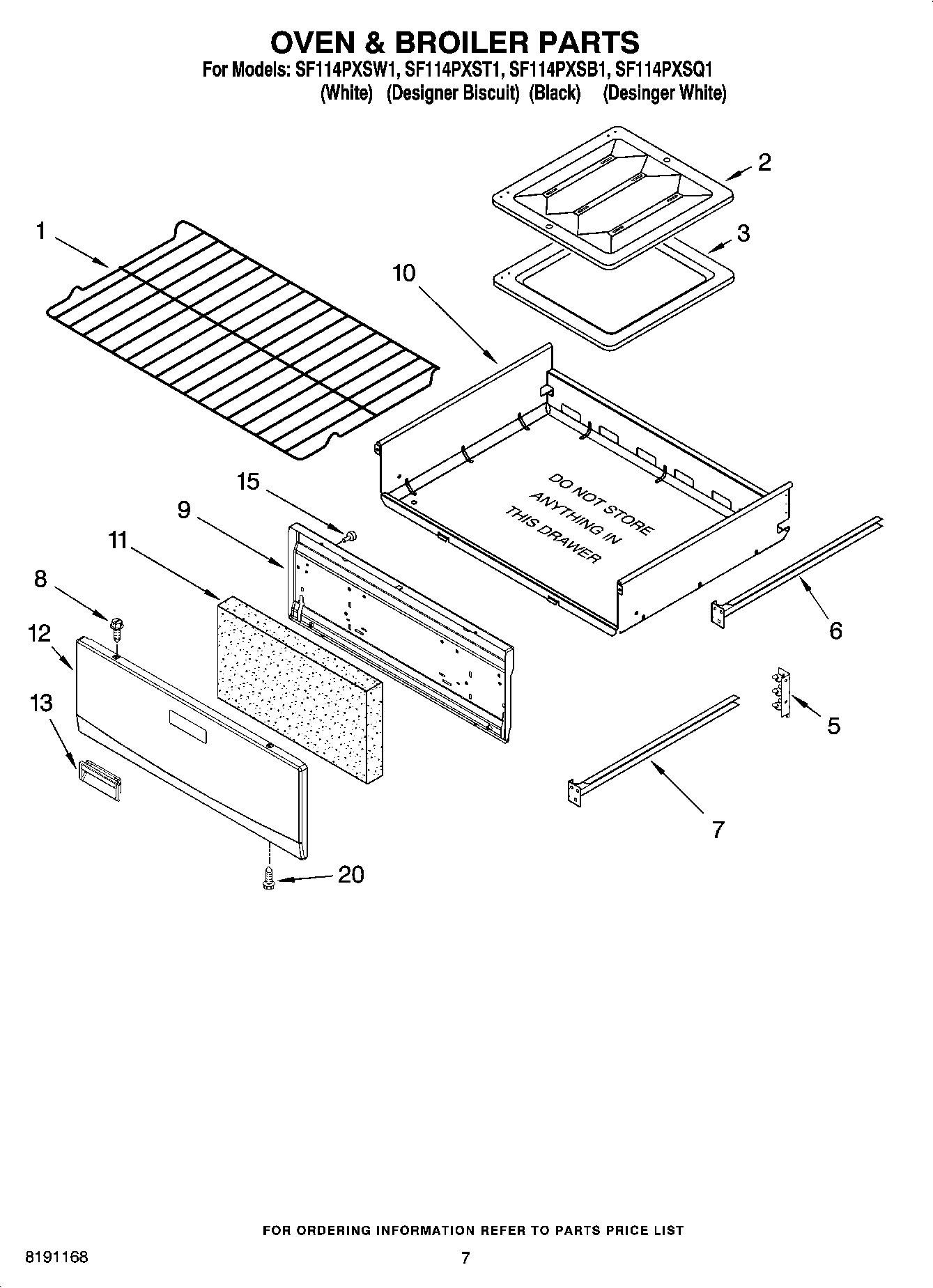

SF114PXSB1 05 – OVEN & BROILER PARTS

SF114PXSB1 05 – OVEN & BROILER PARTS

Written by

in

SF114PXSB1 05 – OVEN & BROILER PARTS

Products

PositionProduct
1Rack, Oven (2)
2WP98003480 Whirlpool Grill Pan
3WP98016005 Whirlpool Broiler Pan
598016664 Whirlpool Oven Support Assembly
598016666 Whirlpool Oven Support
698004994 Whirlpool Oven Drawer Guide
6WPW10206639 Whirlpool Drawer Guide
7WPW10206641 Whirlpool Drawer Guide
7W10206642 Whirlpool Drawer Guide
83196166 Whirlpool Screw
8Screw (Biscuit)
8WP3400832 Whirlpool Screw
9Liner, Door
10Drawer, Broiler
11Insulation, Door
12Panel, Door (White)
1298009341 Whirlpool Drawer Panel
1298009343 Whirlpool Oven Black Drawer Panel
13WP3405189 Whirlpool Handle
13WP3405190 Whirlpool Handle Assembly
13WP3405184 Whirlpool White Door Handle
15BUMPER, DOOR
20WP3400805 Whirlpool Screw Assembly
