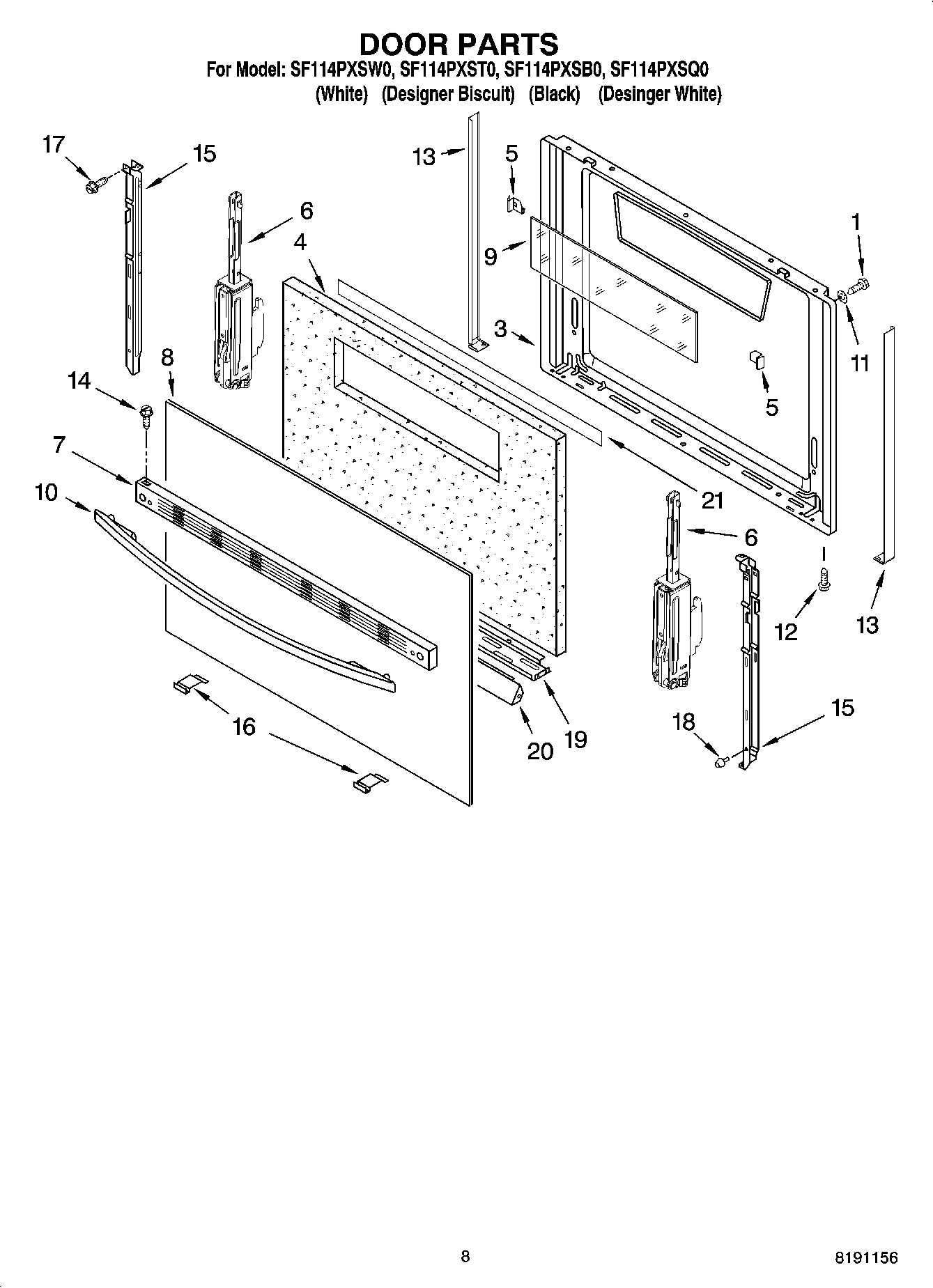

SF114PXSQ0 06 – DOOR PARTS, OPTIONAL PARTS

SF114PXSQ0 06 – DOOR PARTS, OPTIONAL PARTS

Written by

in

SF114PXSQ0 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	98017831 Whirlpool Oven Anchor Tip
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	WPL ARI128943A
	8212471 Whirlpool Oven Paint
	3196696 Whirlpool Clip
	Grease
	WPL 8316781
	WPL ARI128942A
	98015022 Whirlpool Bushing Assembly
	WP3391018 Whirlpool Wire Tie
	CLIP, WIRE
	WPL ARI128941A
	WPL 98017728
	WPL ARI128946A
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL ARI128945A
	WPL ARI128944A
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	549193 Whirlpool Refrigerator Power Clamp
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	WPW10208653 Whirlpool Insulation
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
1	SCREW
3	98010182 Whirlpool Door Liner
4	Insulation, Door
5	98004952 Whirlpool Oven Clip
5	98004953 Whirlpool Clip
6	Hinge, Door (Right)
7	Trim, Top Door (Black)
7	WHITE
7	Trim, Top Door (Biscuit)
8	Panel, Door
8	Panel, Door (Biscuit)
8	Panel, Door (Black)
9	WP98006801 Whirlpool Door Glass
10	WP98017790W Whirlpool Door Handle
10	Handle, Oven Door (Black)
10	Handle, Oven Door (Biscuit)
11	Actuator (2)
12	WP59002061 Whirlpool Microwave Screw
13	98016795T Whirlpool Door Trim
13	Side Trim, Door (2) (Black Right)
13	Side Trim, Door (2) (Black Left)
13	98016787T Whirlpool Door Trim
13	Side Trim, Door (Right Hand)
13	Side Trim, Door (Left Hand)
14	WP98008544 Whirlpool Screw Assembly
14	WP98008545 Whirlpool Screw
14	Screw (Biscuit)
15	98004629 Whirlpool Oven Retainer
15	98004564 Whirlpool Oven Retainer
16	WP98010185 Whirlpool Door Trim
16	98010184 Whirlpool Oven Door Trim
16	WP98010187 Whirlpool Range Door Trim
17	WP3400805 Whirlpool Screw Assembly
18	98004227 Whirlpool Oven Bumper
19	98004938 Whirlpool Oven Retainer
20	Insulation, Retainer-Bottom
21	Retainer, Upper (2)
