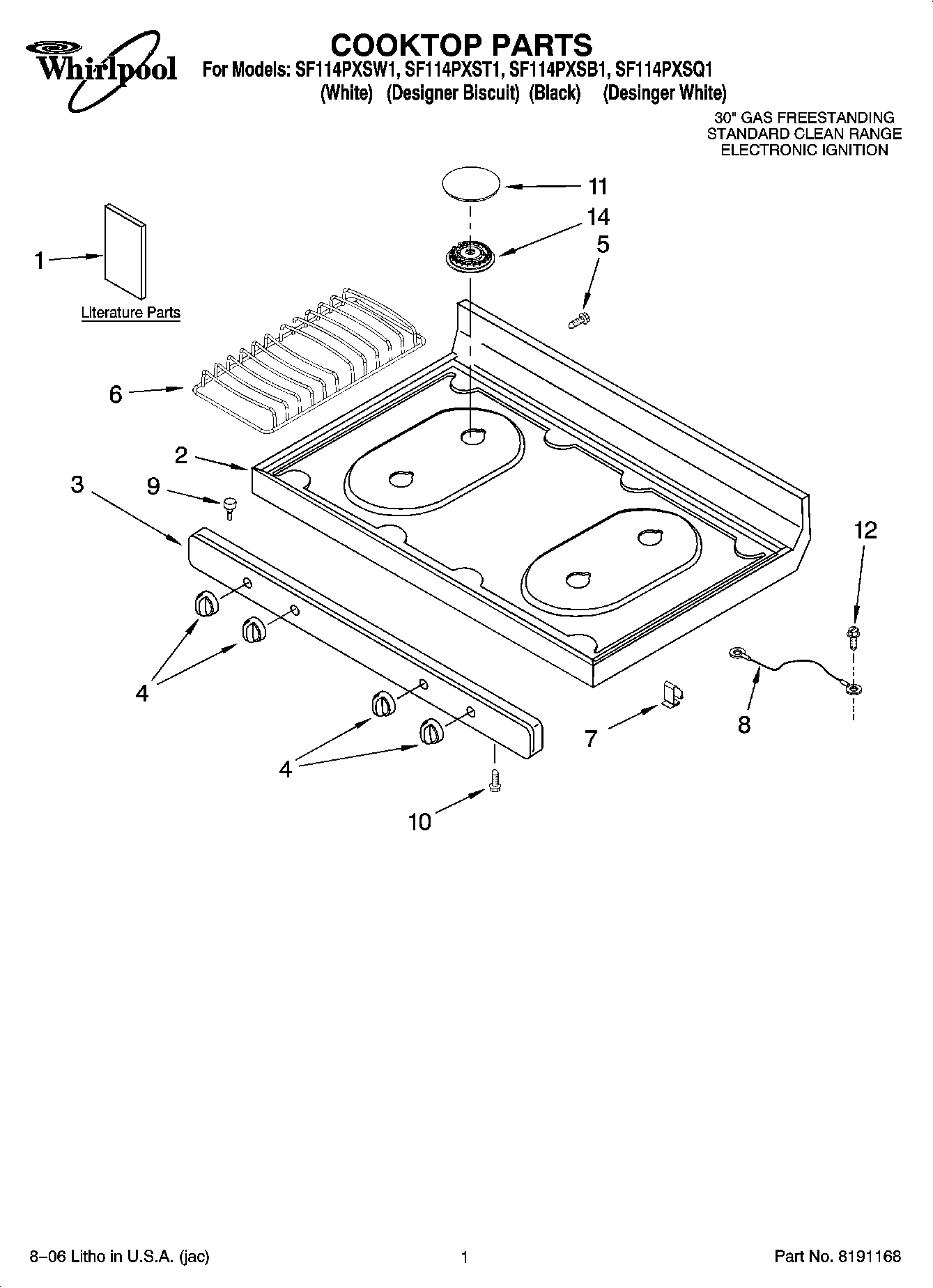

SF114PXSQ1 01 – COOKTOP PARTS

SF114PXSQ1 01 – COOKTOP PARTS

Written by

in

SF114PXSQ1 01 – COOKTOP PARTS

Products

PositionProduct
1Guide, Use & Care
1Installation Instr (Template)
1Safer Cooking Tips
1Instruct, Install (English (Template))
1Instruct, Install (Canadian)
1Tech Sheet
1LITERATURE PARTS
2Cooktop (Black)
2Cooktop (Biscuit)
2WP98017619W Whirlpool Cooktop
3Panel, Manifold (Black)
3Panel, Manifold (Biscuit)
3Panel, Manifold (White)
4WP98006100 Whirlpool Knob
4WP98008208 Whirlpool Knob
4WP98006102 Whirlpool Knob
5WP98007225 Whirlpool Screw Assembly
6Grate, Burner (2) (Grey)
6Grate, Burner (2) (Black)
7CLIP, COOKTOP
83184020 Whirlpool Oven Wire
9W10831827 Whirlpool Bumper
10SCREW
11WP98017461 Whirlpool Burner Cap
12W10850756 Whirlpool Screw
14WP98017537 Whirlpool Top Burner
