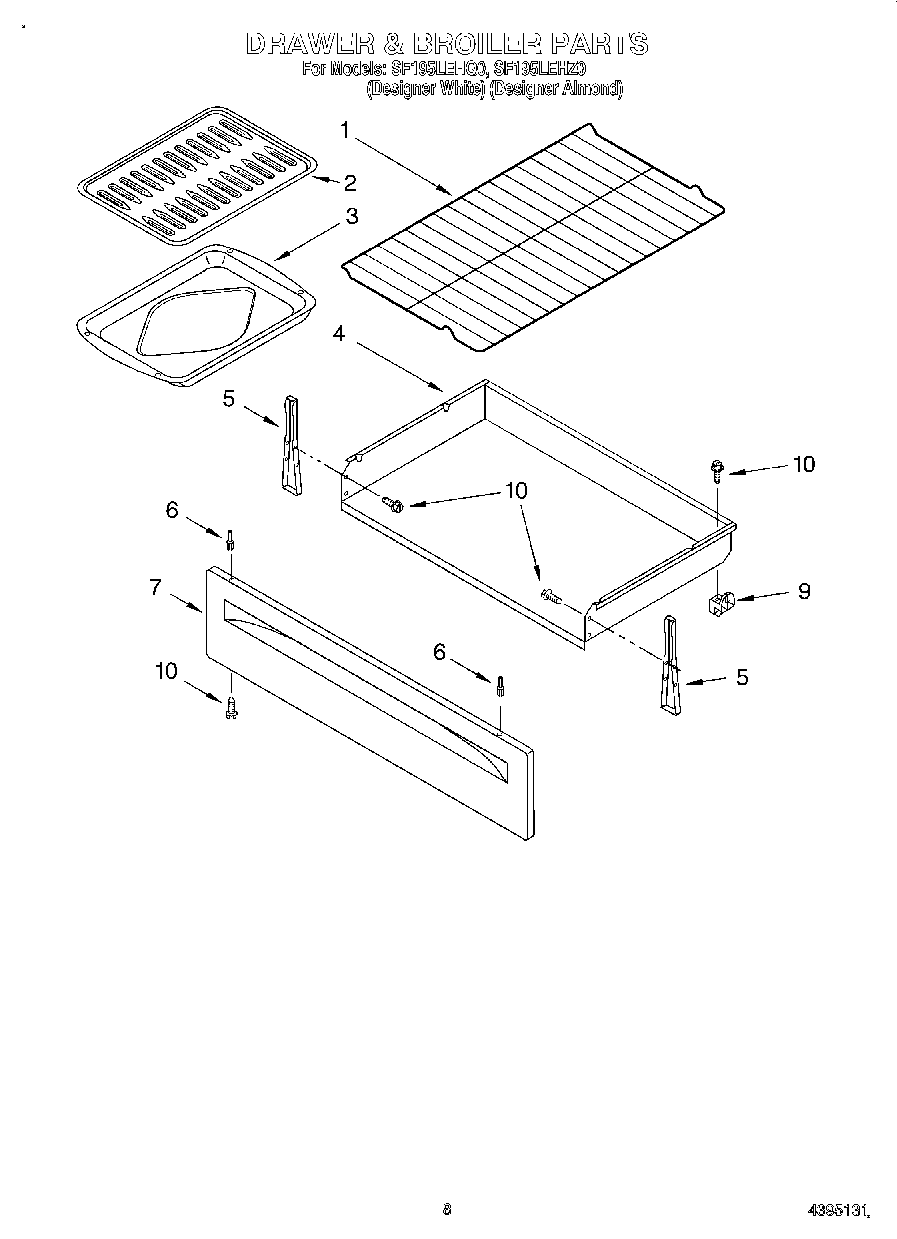

SF195LEHQ0 06 – DRAWER AND BROILER, OPTIONAL

SF195LEHQ0 06 – DRAWER AND BROILER, OPTIONAL

Written by

in

SF195LEHQ0 06 – DRAWER AND BROILER, OPTIONAL

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	BRKT-MNTG
6	WP3196814 Whirlpool Rivet
6	3196815 Whirlpool Oven Rivet
7	W11230486 Whirlpool Drawer Panel
7	Panel, Drawer Front (Almond)
9	WP8053334 Whirlpool Drawer Glide
10	Wire (14 Ga. 150 c Green)
10	Wire (14 Ga. 150 c Brown)
10	Wire (14 Ga. 150 c Blue)
10	242831 Whirlpool Oven Wire
10	16515 Whirlpool Clip
10	3400964 Whirlpool Oven Clip
10	Wire (14 Ga. 150 c Orange)
10	Wire (14 Ga. 150 c Yellow)
10	WPL 8053527
10	3196896 Whirlpool Clip
10	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
10	Grease
10	8212471 Whirlpool Oven Paint
10	WP3400832 Whirlpool Screw
10	1
10	Wire (14 Ga. 200 c Brown)
10	18 Ga. 80~c Rating (Red)
10	Wire (12 Ga. 150 c Black)
10	WPL 3196916
10	Wire, 25“ Roll (White 14 GA.)
10	814381 Whirlpool Pin
10	Enamal, Toast (1 Qt. Uncut)
10	Paint, Spray (13 Oz.) (Platinum)
10	Toast
10	Golden Harvest (Uncut)
10	Golden Harvest
10	72113 Whirlpool Touch-Up Paint
10	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
10	Almond (Uncut)
10	WP72107 Whirlpool Touchup
10	799344 Whirlpool Refrigerator Paint
10	72017 Whirlpool Appliance Touch-Up Paint White
10	350956 Whirlpool Spray Assembly
10	Platinum (Uncut)
10	WPL 72112
10	Paint, Spray 13 Oz. (Avocado)
10	paint, spray 13 oz. (coffee)
10	Paint, Touch-Up 1/2 Oz. (Coffee)
10	72109 Whirlpool Dacor Avocado Touch-Up Paint
10	285006 Whirlpool Spray
10	Wire, 25` Roll (Red 14 Ga.)
10	Wire, 25` Roll (Black 14 Ga.)
10	FOIL, ALUMINUM OVEN (18“ X 25 )
10	WPW10208653 Whirlpool Insulation
10	WPL 799832
10	511873 Whirlpool Refrigerator Paint
10	350942 Whirlpool Spray Paint
10	350930 Whirlpool White Spray Paint
