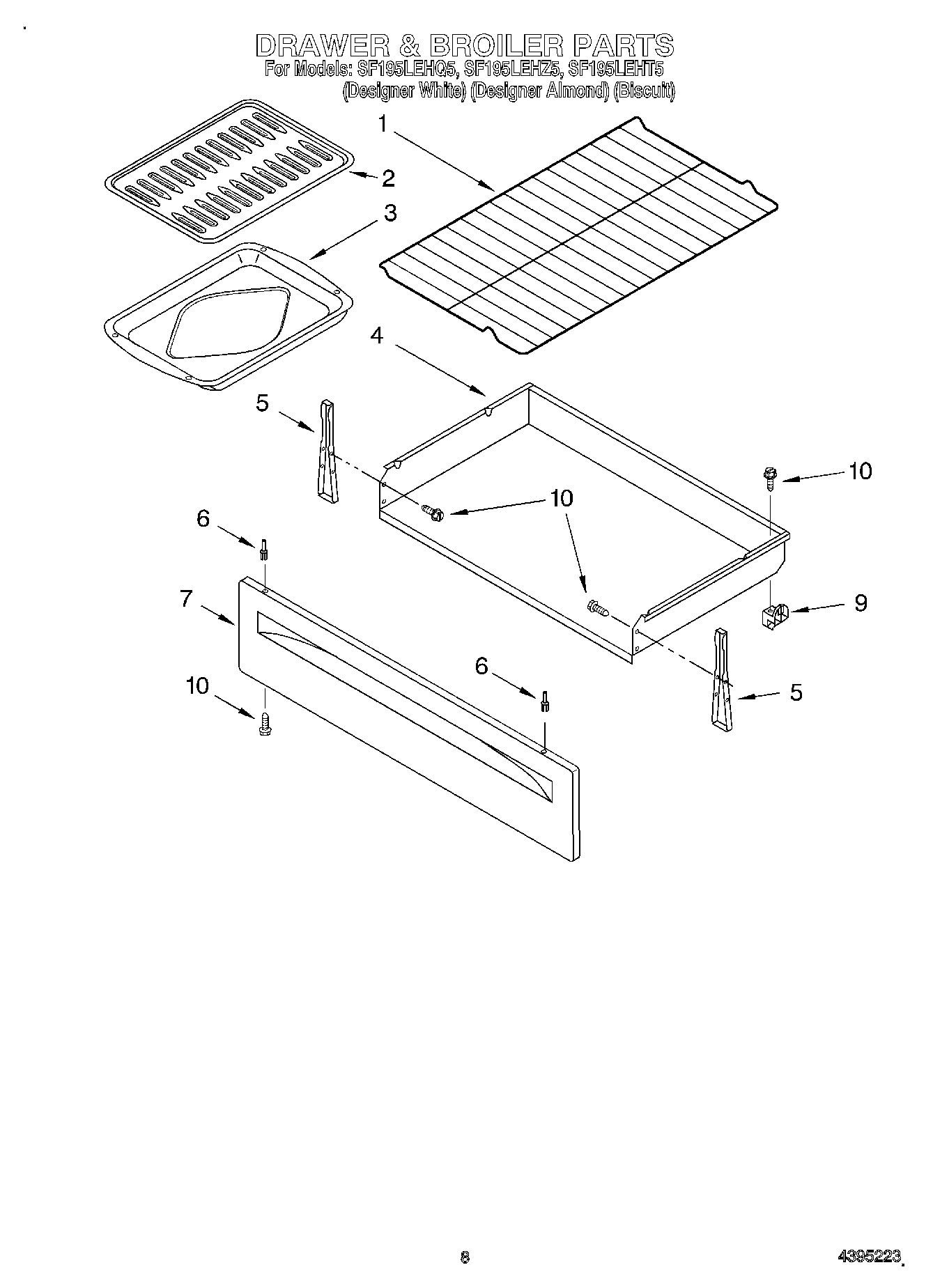

SF195LEHQ5 06 – DRAWER AND BROILER

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	BRKT-MNTG
6	3196815 Whirlpool Oven Rivet
6	WP3196814 Whirlpool Rivet
7	Panel, Drawer Front (Almond)
7	PANEL, DRAWER FRONT (BISCUIT)
7	W11230486 Whirlpool Drawer Panel
9	WP8053334 Whirlpool Drawer Glide
10	WPL 8272466
10	18 Ga. 80~c Rating (Red)
10	Wire (12 Ga. 150 c Black)
10	Wire (14 Ga. 150 c Yellow)
10	Wire (14 Ga. 150 c Orange)
10	Wire (14 Ga. 200 c Brown)
10	1
10	WP3400832 Whirlpool Screw
10	WPL 8273341
10	WPL 8054086
10	WPL 8054085
10	WPL 8053527
10	Grease
10	3196896 Whirlpool Clip
10	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
10	3196696 Whirlpool Clip
10	8212471 Whirlpool Oven Paint
10	Wire (14 Ga. 150 c Green)
10	Wire (14 Ga. 150 c Brown)
10	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
10	511873 Whirlpool Refrigerator Paint
10	4392901 Whirlpool Biscuit Spray Paint
10	4392899 Whirlpool Biscuit Touch-Up Paint
10	350942 Whirlpool Spray Paint
10	Almond (Uncut)
10	WP72107 Whirlpool Touchup
10	799344 Whirlpool Refrigerator Paint
10	72017 Whirlpool Appliance Touch-Up Paint White
10	350956 Whirlpool Spray Assembly
10	WPL 799832
10	WPW10208653 Whirlpool Insulation
10	Wire (14 Ga. 150 c Blue)
10	242831 Whirlpool Oven Wire
10	16515 Whirlpool Clip
10	3400964 Whirlpool Oven Clip
10	814381 Whirlpool Pin
10	285006 Whirlpool Spray
10	Wire, 25“ Roll (White 14 GA.)
10	Wire, 25` Roll (Red 14 Ga.)
10	Wire, 25` Roll (Black 14 Ga.)
10	FOIL, ALUMINUM OVEN (18“ X 25 )
10	350930 Whirlpool White Spray Paint
