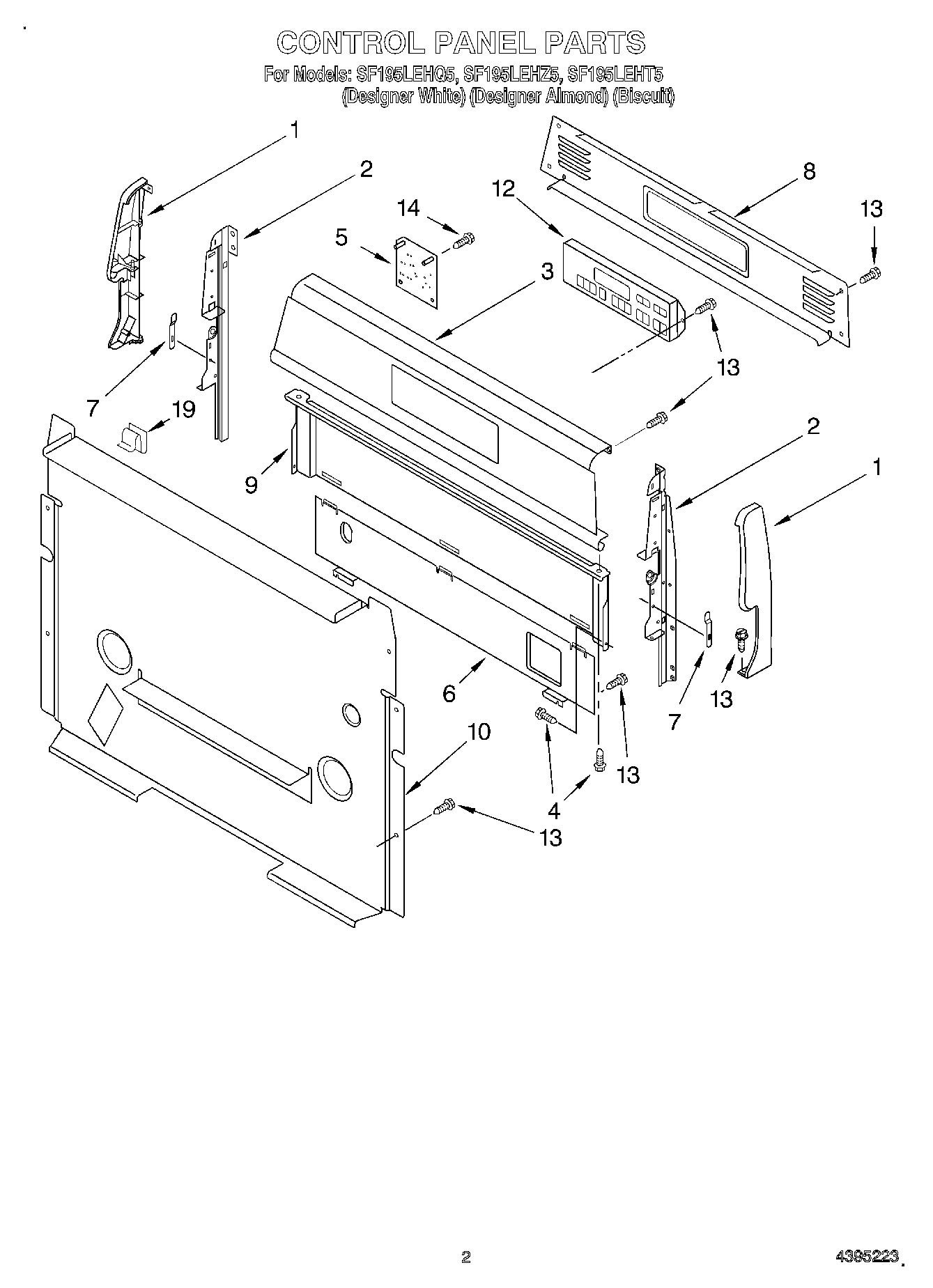

SF195LEHZ5 02 – CONTROL PANEL

SF195LEHZ5 02 – CONTROL PANEL

Written by

in

SF195LEHZ5 02 – CONTROL PANEL

Products

PositionProduct
1End Cap
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap (Almond Right Hand)
1Endcap (Almond Left Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Almond)
3Panel, Backguard
3Panel, Backguard (Biscuit)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
12Control, Range (White)
12Control, Range (Biscuit)
12Control, Range (Almond)
13SCREW
14WP3196557 Whirlpool Screw
19WP8273564 Whirlpool Clip
