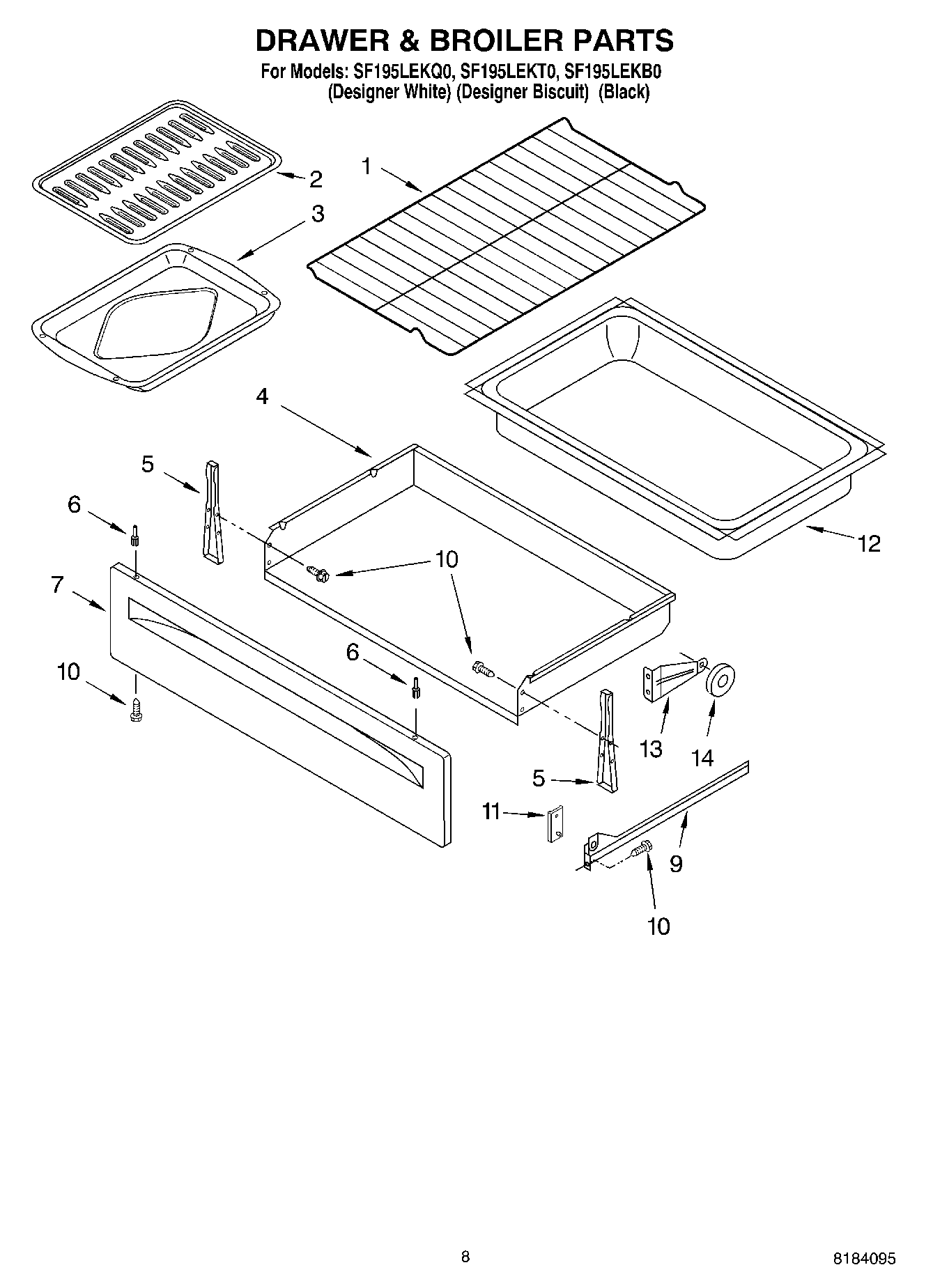

SF195LEKB0 06 – DRAWER & BROILER

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	BRKT-MNTG
6	WP3196814 Whirlpool Rivet
7	PANEL, DRAWER FRONT (BISCUIT)
7	W11230486 Whirlpool Drawer Panel
7	W11230490 Whirlpool Drawer Panel
9	Rail, Drawer (Left Hand)
9	Rail, Drawer (Right Hand)
10	WP3400832 Whirlpool Screw
11	Spacer, Glide
12	Liner, Drawer
13	Bracket, Roller
14	Wire (14 Ga. 200 c Brown)
14	18 Ga. 80~c Rating (Red)
14	Wire (12 Ga. 150 c Black)
14	1
14	8212471 Whirlpool Oven Paint
14	WPL 8522613
14	WPL 8273901
14	WPL 8274195
14	WPL 8053527
14	3196896 Whirlpool Clip
14	Grease
14	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
14	3196696 Whirlpool Clip
14	Wire (14 Ga. 150 c Yellow)
14	Wire (14 Ga. 150 c Orange)
14	Wire (14 Ga. 150 c Green)
14	WPW10208653 Whirlpool Insulation
14	WPL 799832
14	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
14	511873 Whirlpool Refrigerator Paint
14	4392901 Whirlpool Biscuit Spray Paint
14	4392899 Whirlpool Biscuit Touch-Up Paint
14	350942 Whirlpool Spray Paint
14	799344 Whirlpool Refrigerator Paint
14	72017 Whirlpool Appliance Touch-Up Paint White
14	FOIL, ALUMINUM OVEN (18“ X 25 )
14	Wire, 25` Roll (Black 14 Ga.)
14	Wire, 25` Roll (Red 14 Ga.)
14	Wire (14 Ga. 150 c Brown)
14	Wire (14 Ga. 150 c Blue)
14	242831 Whirlpool Oven Wire
14	16515 Whirlpool Clip
14	3400964 Whirlpool Oven Clip
14	814229 Whirlpool Primary Roller
14	814381 Whirlpool Pin
14	285006 Whirlpool Spray
14	Wire, 25“ Roll (White 14 GA.)
14	350930 Whirlpool White Spray Paint
