SF195LEKB1 02 – CONTROL PANEL PARTS

SF195LEKB1 02 – CONTROL PANEL PARTS

Written by

in

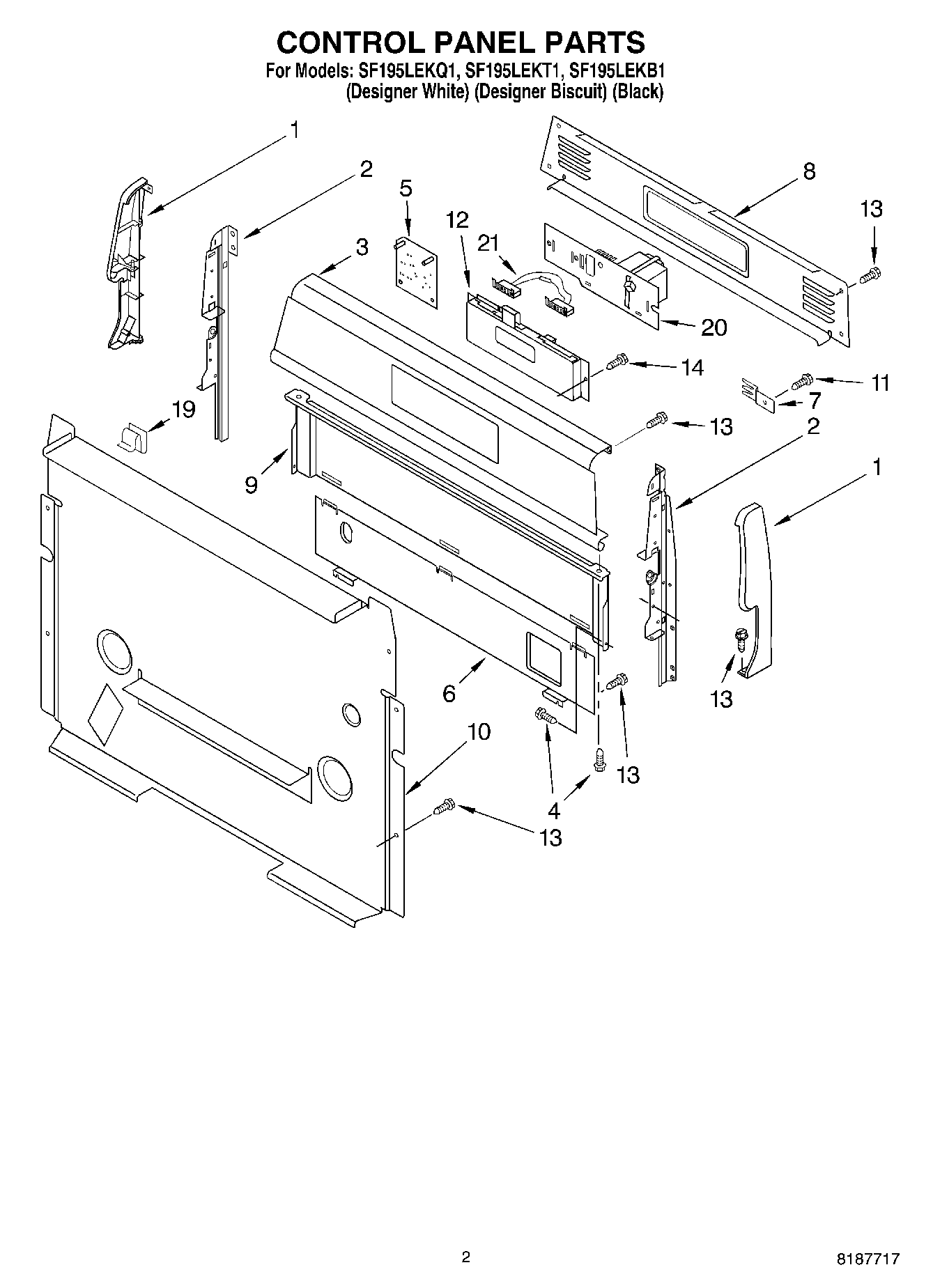

SF195LEKB1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap, Right Hand (Black)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Black Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Black)
3Panel, Control (Black)
3Panel, Backguard (Biscuit)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
78523412 Whirlpool Mounting Bracket
8Cover, Upper
9Shield, Heat
10Cover, Lower
11WP3196557 Whirlpool Screw
12Control, Range (Black)
12Control, Range (White)
12Control, Range (Biscuit)
13SCREW
14WP3196170 Whirlpool Screw
19WP8273564 Whirlpool Clip
20Power Supply, PCA
21Jumper W/Fuse
