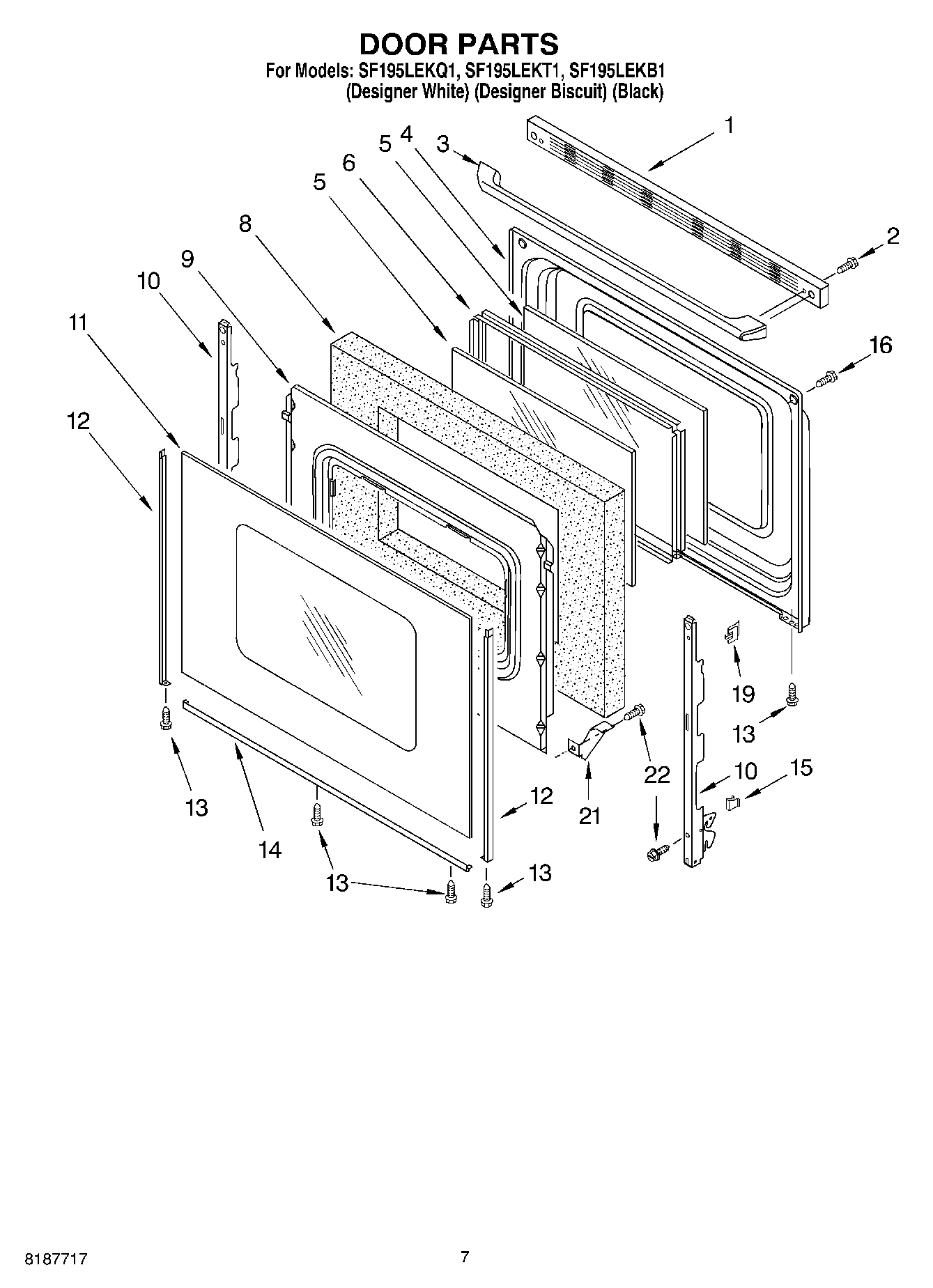

SF195LEKB1 05 – DOOR PARTS

Products

Position	Product
1	Trim, Top (Biscuit)
1	Trim, Top (Black)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	W10202219 Whirlpool Door Handle Assembly
3	WPW10202217 Whirlpool Door Handle
3	Handle, Door (Biscuit)
4	Liner, Door
5	WP8053948 Whirlpool Door Glass
6	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	Glass, Outer Door (Biscuit)
11	WP8053834 Whirlpool Door Glass
11	WPW10118455 Whirlpool Door Glass Assembly
13	W10491985 Whirlpool Screw
14	8184860 Whirlpool Oven Door Trim
14	8184858 Whirlpool Door Trim
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
15	WP3196925 Whirlpool Clip Assembly
16	WP179051 Whirlpool Screw
19	Clip, Glass (4)
21	WP3196794 Whirlpool Glass Bracket
22	WP3196175 Whirlpool Screw
