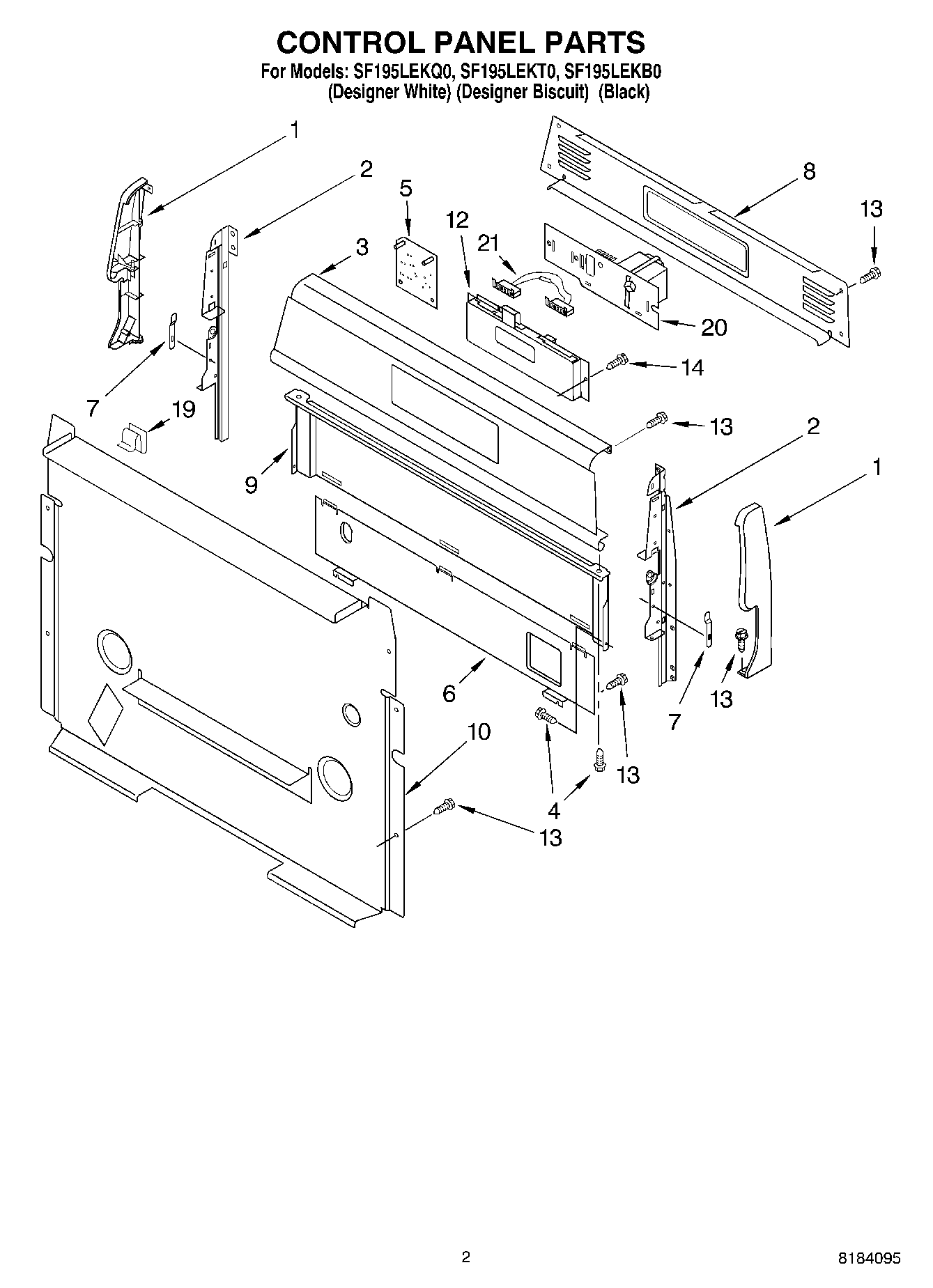

SF195LEKQ0 02 – CONTROL PANEL

SF195LEKQ0 02 – CONTROL PANEL

Written by

in

SF195LEKQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap (Biscuit Left Hand)
1Endcap (Biscuit Right Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
1Endcap, Right Hand (Black)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Control (Black)
3Panel, Control (Biscuit)
3Panel, Control
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
12Control, Range (White)
12Control, Range (Black)
12Control, Range (Biscuit)
13SCREW
14Switch, Infinite (Screw (8))
19WP8273564 Whirlpool Clip
20Power Supply, PCA
21Jumper W/Fuse
