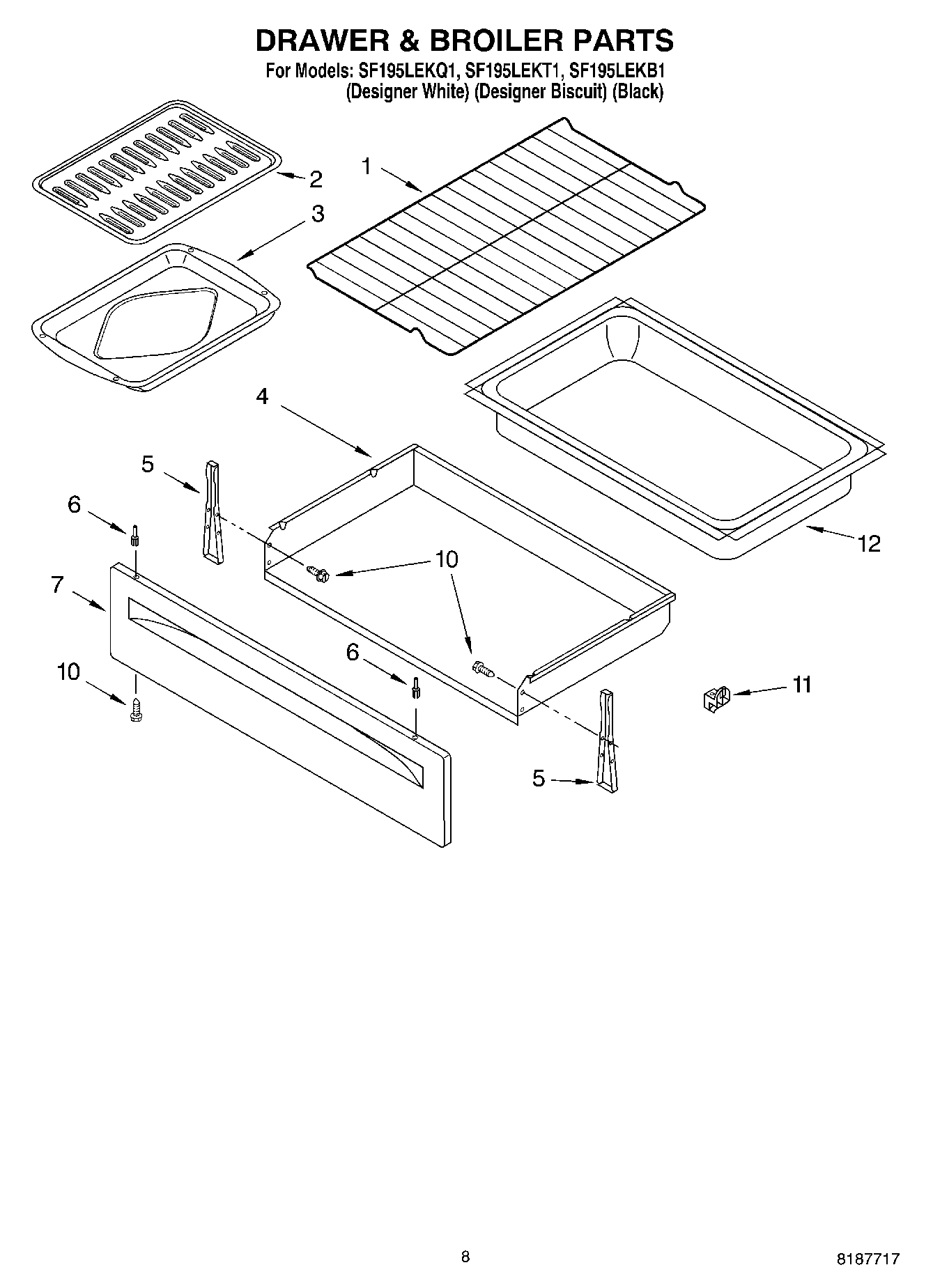

SF195LEKQ1 06 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI162619A
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	Grease
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	3196896 Whirlpool Clip
	WPL 8053527
	8523599 Whirlpool Oven Wire Harness
	WPL ARI162618A
	WPL ARI162617A
	WPL ARI162616A
	WPL ARI162615A
	WPL ARI162614A
	WPL ARI162613A
	WPL ARI162612A
	WPL 8523427
	WPL 8273901
	TIE,WIRE
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	Wire, 25“ Roll (White 14 GA.)
	3400964 Whirlpool Oven Clip
	16515 Whirlpool Clip
	242831 Whirlpool Oven Wire
	285006 Whirlpool Spray
	814381 Whirlpool Pin
	Wire (14 Ga. 150 c Blue)
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	BRKT-MNTG
6	WP3196814 Whirlpool Rivet
7	W11230486 Whirlpool Drawer Panel
7	PANEL, DRAWER FRONT (BISCUIT)
7	W11230490 Whirlpool Drawer Panel
10	WP3400832 Whirlpool Screw
11	WP8053334 Whirlpool Drawer Glide
12	Liner, Drawer
