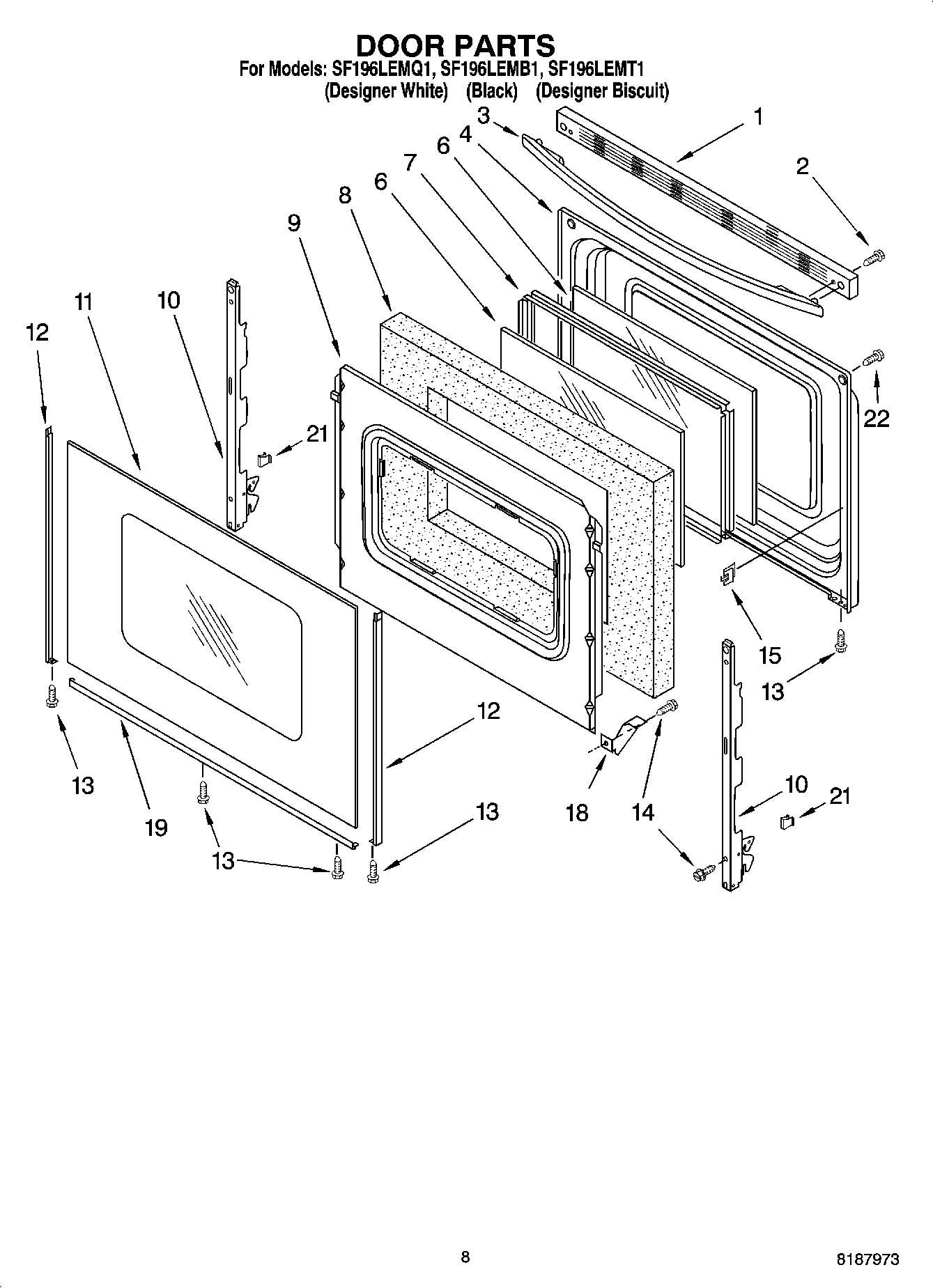

SF196LEMB1 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

SF196LEMB1 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

SF196LEMB1 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI162651A
3196696 Whirlpool Clip
8212471 Whirlpool Oven Paint
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Grease
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
WPL ARI162650A
WPL ARI162649A
WPL ARI162648A
WPL ARI162647A
WPL ARI162646A
WPL 8524207
WPL 8523424
TIE,WIRE
8523599 Whirlpool Oven Wire Harness
WPL ARI162652A
3196896 Whirlpool Clip
WPL 8316781
16515 Whirlpool Clip
3400964 Whirlpool Oven Clip
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
WPL 799832
511873 Whirlpool Refrigerator Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
814381 Whirlpool Pin
4392901 Whirlpool Biscuit Spray Paint
350942 Whirlpool Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
4392899 Whirlpool Biscuit Touch-Up Paint
1Trim, Top (Black)
1Trim, Top (Biscuit)
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3Handle, Door (Biscuit)
3WPW10202217 Whirlpool Door Handle
3W10202219 Whirlpool Door Handle Assembly
4Liner, Door
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WP8053807 Whirlpool Oven Door Hinge
11Glass, Outer Door (Biscuit)
11Glass, Outer Door (White)
11WPW10118455 Whirlpool Door Glass Assembly
12W10761014 Whirlpool Right Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523172 Whirlpool Left Door Trim
12WP8523173 Whirlpool Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523166 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP3196175 Whirlpool Screw
15Clip, Glass (4)
18WP3196794 Whirlpool Glass Bracket
19WP8523177 Whirlpool Door Trim Assembly
19WP8523178 Whirlpool Door Trim
19WP8523175 Whirlpool Door Trim Assembly
21WP3196925 Whirlpool Clip Assembly
22WP179051 Whirlpool Screw
