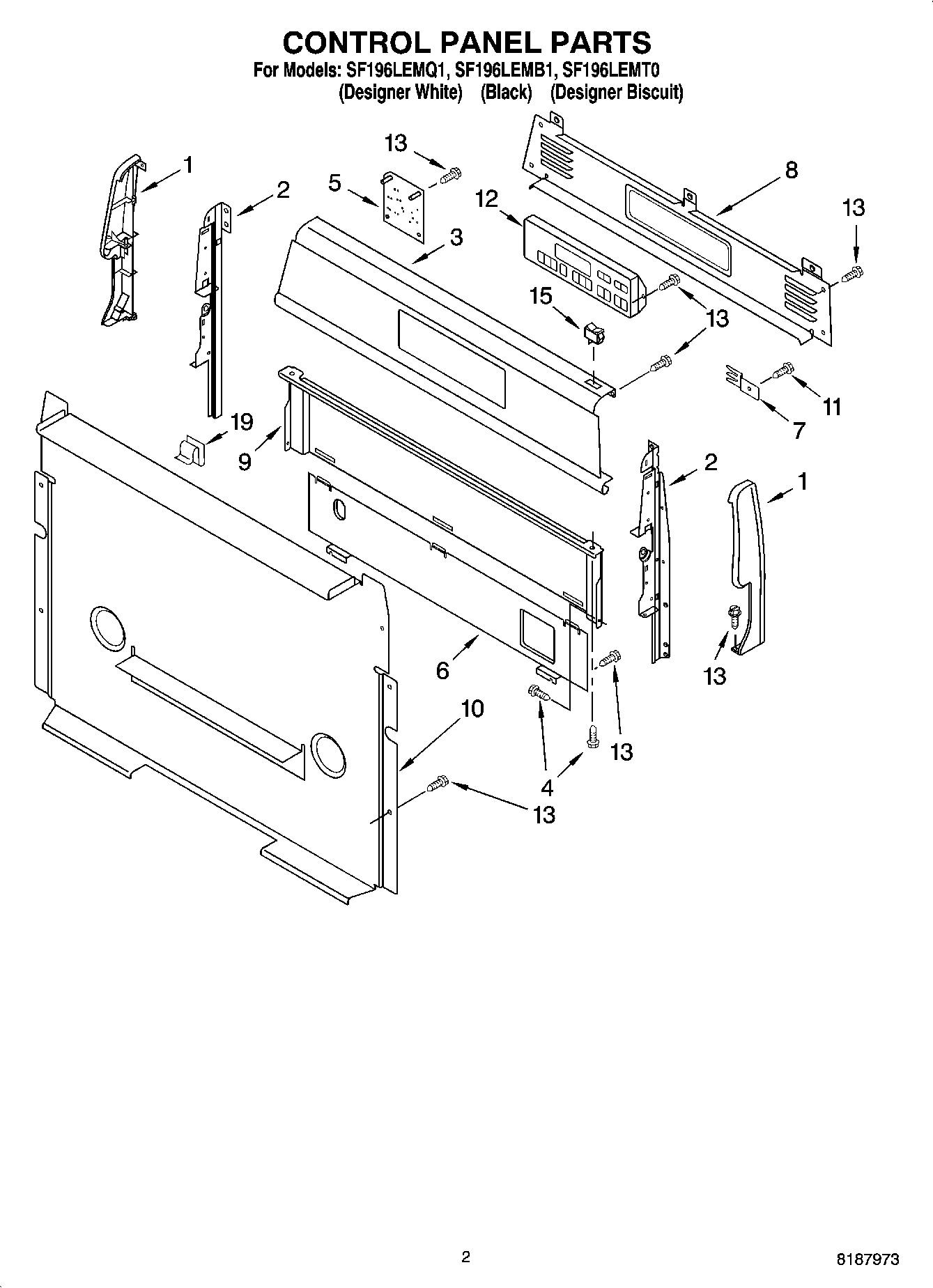

SF196LEMT0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap, Right Hand (Black)
1	Endcap (Black Left Hand)
1	Endcap (Biscuit Left Hand)
1	Endcap (White Left Hand)
1	Endcap (White Right Hand)
1	Endcap (Biscuit Right Hand)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Backguard (Black)
3	Panel, Backguard (White)
3	Panel, Backguard (Biscuit)
4	Screw
5	WPW10331686 Whirlpool Oven Spark Module
6	8053505 Whirlpool Oven Shield
7	8523412 Whirlpool Mounting Bracket
8	Cover, Upper
9	Shield, Heat
10	Cover, Lower
11	WP3196557 Whirlpool Screw
12	Control, Range (White)
12	Control, Range (Biscuit)
12	WP6610449 Whirlpool Electronic Control Board
13	SCREW
15	3149360 Whirlpool Light Switch
15	Switch, Rocker (Biscuit)
15	WP4314961 Whirlpool Lite Switch
19	WP8273564 Whirlpool Clip
