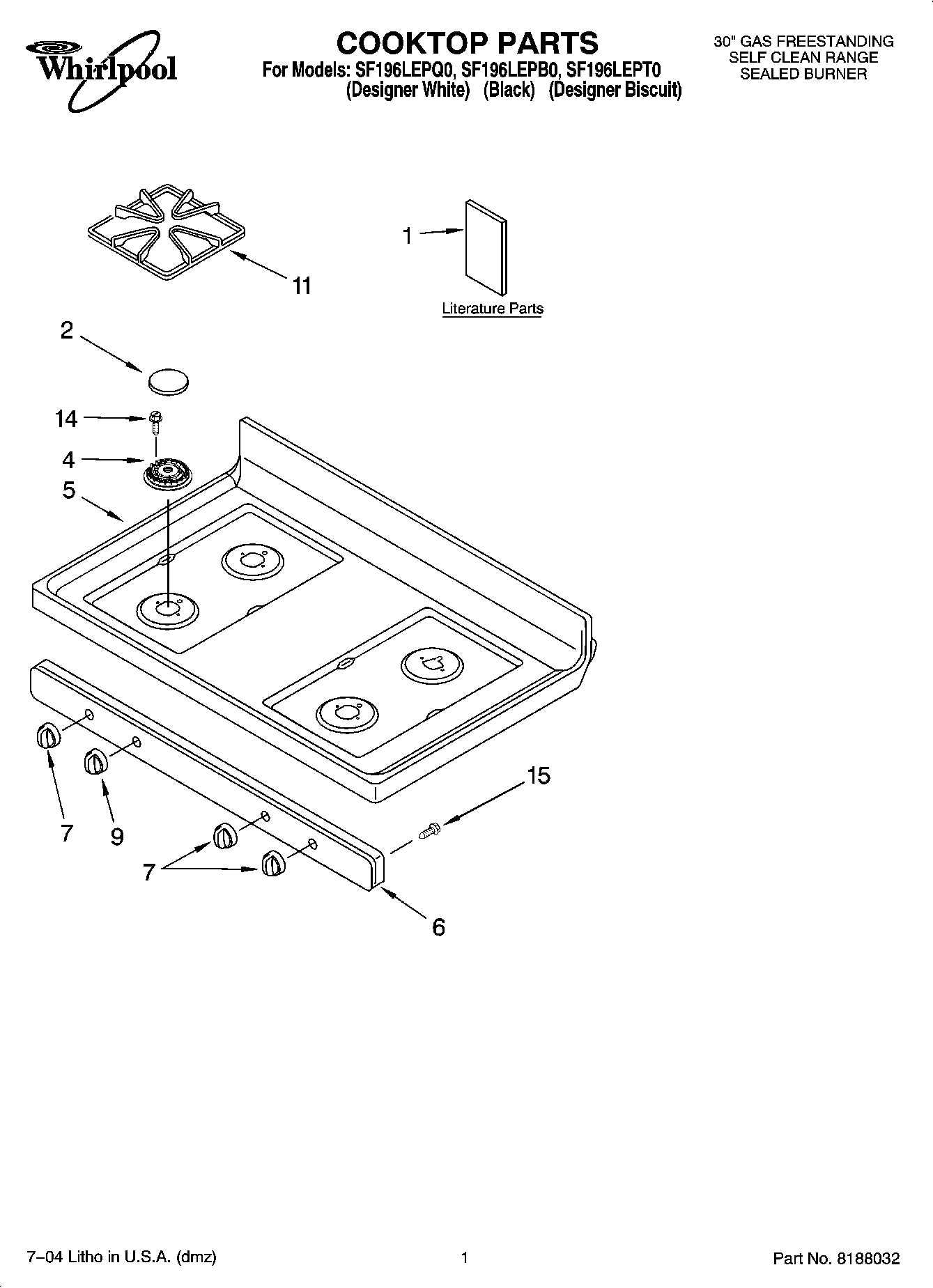

SF196LEPB0 01 – COOKTOP PARTS

SF196LEPB0 01 – COOKTOP PARTS

Written by

in

SF196LEPB0 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instructions Anti-Tip Template
1Safe Cooking Tips
1English/Spanish
1English/French
1Tech Sheet
1Guide, Use & Care
2WP8273344 Whirlpool Burner Cap
2WP8273343 Whirlpool Burner Cap
2WP3191898 Whirlpool Surface Burner Cap Black
2WP8273345 Whirlpool Burner Cap
2WP3191905 Whirlpool Burner Cap
2Cap, Burner 6K (1) (Gray)
2WP3191904 Whirlpool Burner Cap
2WP3191903 Whirlpool Burner Cap
2WP3191901 Whirlpool Burner Cap
4WP4455979 Whirlpool Range Small Burner Head
4WP4455981 Whirlpool Burner Head
4WP4455980 Whirlpool Burner Head
5W11213958 Whirlpool Oven Cooktop
5W11213959 Whirlpool Cooktop
58195546 Whirlpool Oven Cooktop O/S2
6Panel, Manifold (Biscuit)
6WP8523854 Whirlpool Manifold Panel
68523855 Whirlpool Oven Manifold Panel
7Knob, Control (2)
7W11242931 Whirlpool Knob
7Knob, Control (3) (Biscuit)
9Knob, Powerburner
9Knob, Powerburner (Biscuit)
11WPW10447925 Whirlpool Grate Kit
11Grate (4) (Espresso)
14WP3368921 Whirlpool Screw
15WP3196557 Whirlpool Screw
