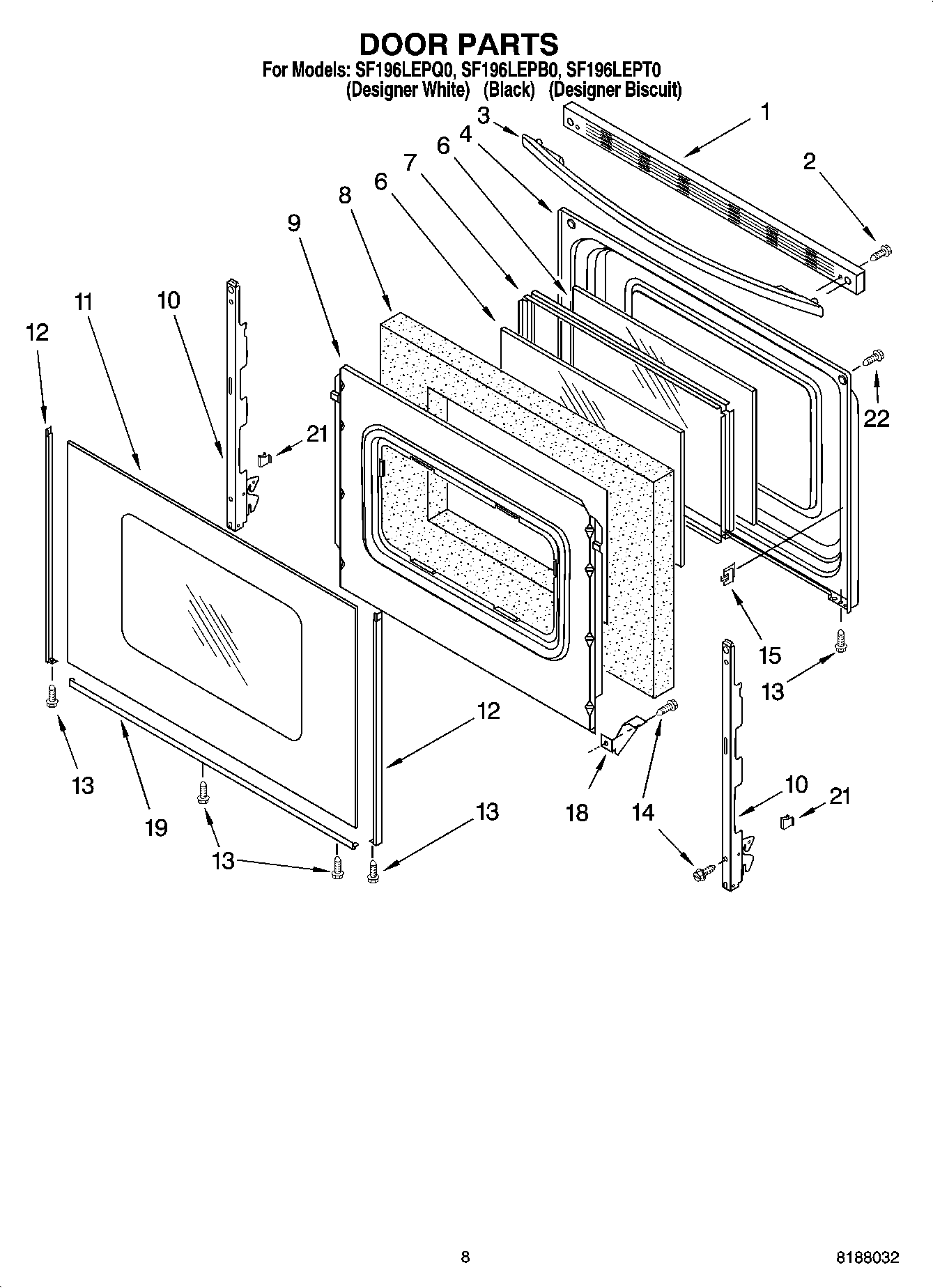

SF196LEPB0 06 – DOOR PARTS, OPTIONAL PARTS

SF196LEPB0 06 – DOOR PARTS, OPTIONAL PARTS

SF196LEPB0 06 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI162704A
3196696 Whirlpool Clip
8212471 Whirlpool Oven Paint
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
16515 Whirlpool Clip
Grease
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
3196896 Whirlpool Clip
WPL ARI162703A
WPL ARI162702A
WPL ARI162701A
WPL ARI162700A
WPL ARI162699A
WPL ARI162698A
WPL 8524207
WPL 8523424
TIE,WIRE
8523599 Whirlpool Oven Wire Harness
WPL ARI162705A
3400964 Whirlpool Oven Clip
WPL 799832
FOIL, ALUMINUM OVEN (18“ X 25 )
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
WPW10208653 Whirlpool Insulation
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
814381 Whirlpool Pin
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
1Trim, Top (Biscuit)
1Trim, Top (Black)
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3W10202219 Whirlpool Door Handle Assembly
3Handle, Door (Biscuit)
3WPW10202217 Whirlpool Door Handle
4Liner, Door
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WP8053807 Whirlpool Oven Door Hinge
11WPW10118455 Whirlpool Door Glass Assembly
11WPW10118454 Whirlpool Door Outer Glass White
11Glass, Outer (Biscuit)
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523173 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523166 Whirlpool Door Trim
12W10761014 Whirlpool Right Door Trim
13W10491985 Whirlpool Screw
14WP3196175 Whirlpool Screw
15Clip, Glass (4)
18WP3196794 Whirlpool Glass Bracket
19WP8523178 Whirlpool Door Trim
19WP8523177 Whirlpool Door Trim Assembly
19WP8523175 Whirlpool Door Trim Assembly
21WP3196925 Whirlpool Clip Assembly
22WP179051 Whirlpool Screw
