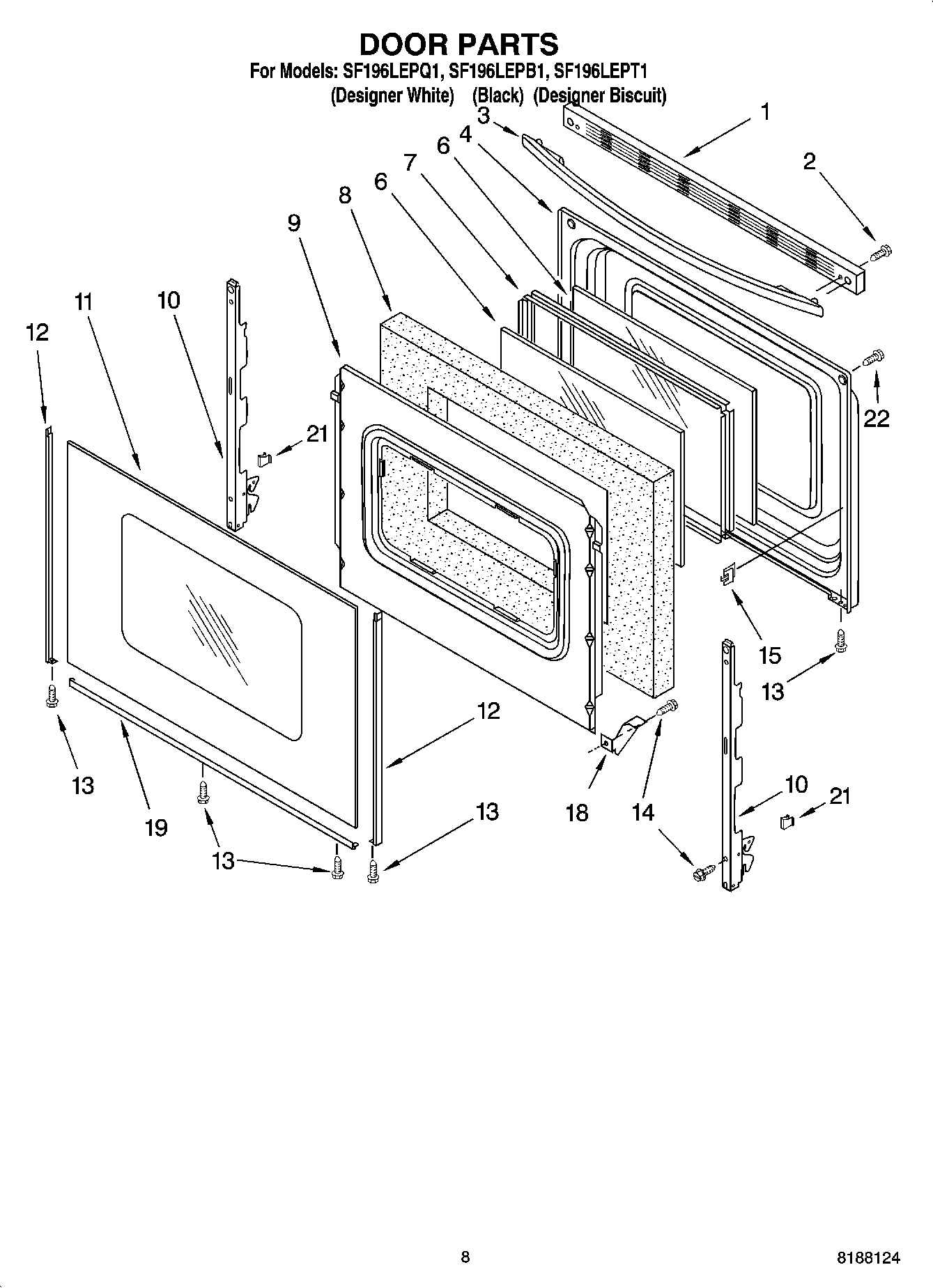

SF196LEPB1 06 – DOOR PARTS, OPTIONAL PARTS

SF196LEPB1 06 – DOOR PARTS, OPTIONAL PARTS

Written by

in

SF196LEPB1 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI162714A
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	WPL 9758205
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	16515 Whirlpool Clip
	3400964 Whirlpool Oven Clip
	8212471 Whirlpool Oven Paint
	3196696 Whirlpool Clip
	Grease
	WPL ARI162713A
	WPL ARI162712A
	WPL ARI162711A
	WPL ARI162710A
	WPL ARI162709A
	WPL ARI162708A
	WPL 8524207
	TIE,WIRE
	8523599 Whirlpool Oven Wire Harness
	WPL ARI162715A
	3196896 Whirlpool Clip
	Wire (14 Ga. 150 c Yellow)
	511873 Whirlpool Refrigerator Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPL 799832
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	814381 Whirlpool Pin
	350942 Whirlpool Spray Paint
	W11447673 Whirlpool Range Tip Anchor
	WPW10208653 Whirlpool Insulation
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	799344 Whirlpool Refrigerator Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
1	Trim, Top (Black)
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Biscuit)
2	WP3196164 Whirlpool Screw
3	W10202219 Whirlpool Door Handle Assembly
3	WPW10202217 Whirlpool Door Handle
3	Handle, Door (Biscuit)
4	Liner, Door
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	Glass, Outer (Biscuit)
11	WPW10118454 Whirlpool Door Outer Glass White
11	WPW10118455 Whirlpool Door Glass Assembly
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523173 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
12	WP8523166 Whirlpool Door Trim
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
13	W10491985 Whirlpool Screw
14	WP3196175 Whirlpool Screw
15	Clip, Glass (4)
18	WP3196794 Whirlpool Glass Bracket
19	WP8523175 Whirlpool Door Trim Assembly
19	WP8523178 Whirlpool Door Trim
19	WP8523177 Whirlpool Door Trim Assembly
21	WP3196925 Whirlpool Clip Assembly
22	WP179051 Whirlpool Screw
