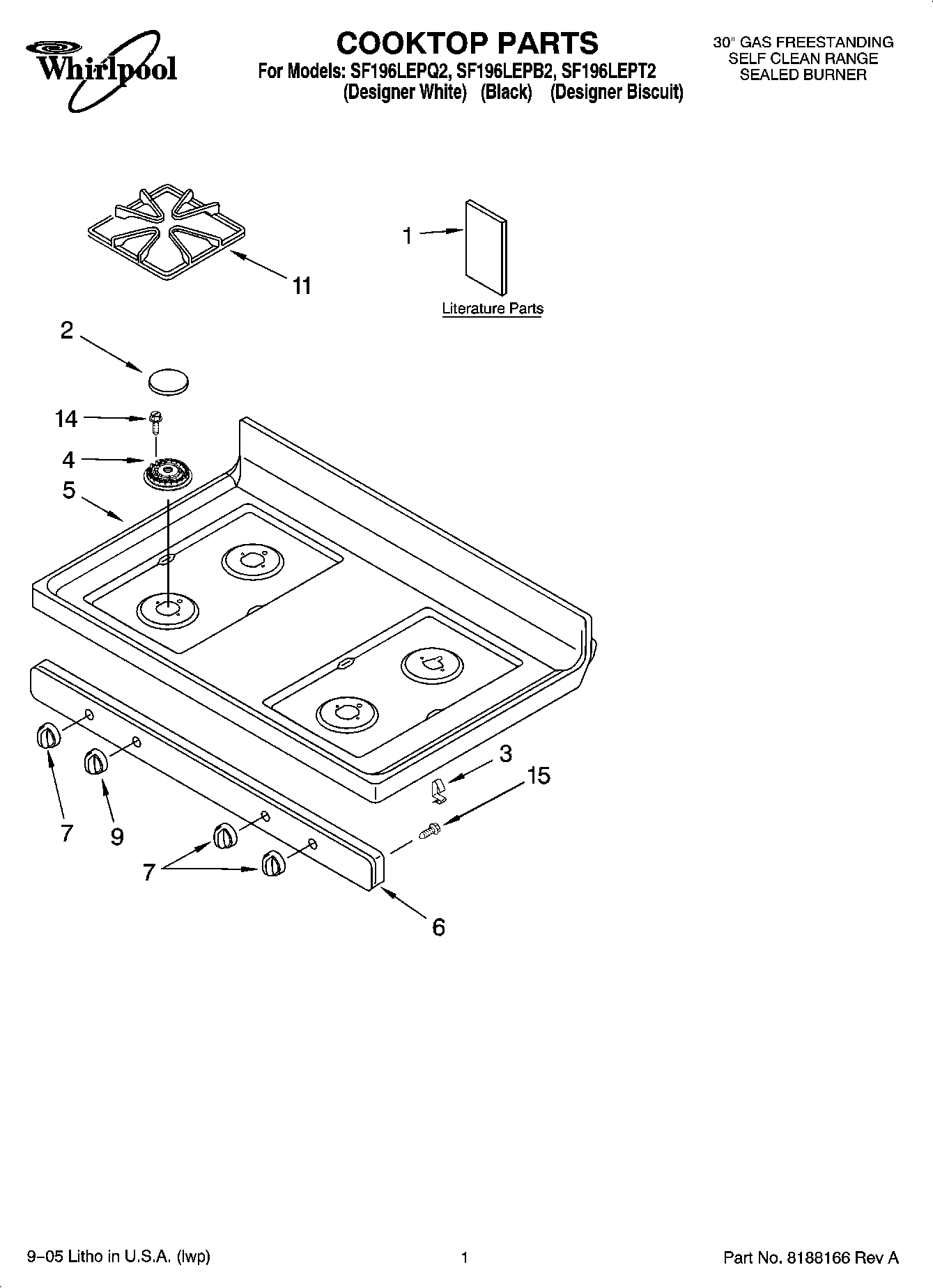

SF196LEPQ2 01 – COOKTOP PARTS

SF196LEPQ2 01 – COOKTOP PARTS

Written by

in

SF196LEPQ2 01 – COOKTOP PARTS

Products

PositionProduct
1Owner`s Manual
1Anti-Tip Template (English/French)
1Safe Cooking Tips
1Anti-Tip Template (English/Spanish)
1Tech Sheet
1Installation Instructions Anti-Tip Template
2WP8273344 Whirlpool Burner Cap
2WP8273345 Whirlpool Burner Cap
2WP3191898 Whirlpool Surface Burner Cap Black
2WP8273343 Whirlpool Burner Cap
2WP3191904 Whirlpool Burner Cap
2WP3191905 Whirlpool Burner Cap
2WP3191903 Whirlpool Burner Cap
2WP3191901 Whirlpool Burner Cap
2Cap, Burner 6K (1) (Gray)
3Clip – Mounting
4WP4455979 Whirlpool Range Small Burner Head
4WP4455980 Whirlpool Burner Head
4WP4455981 Whirlpool Burner Head
58195546 Whirlpool Oven Cooktop O/S2
5W11213958 Whirlpool Oven Cooktop
5W11213959 Whirlpool Cooktop
6WP8523854 Whirlpool Manifold Panel
6Panel, Manifold (Biscuit)
68523855 Whirlpool Oven Manifold Panel
7Knob, Control (2)
7W11242931 Whirlpool Knob
7Knob, Control (3) (Biscuit)
9Knob, Powerburner (Biscuit)
9Knob, Powerburner
11WPW10447925 Whirlpool Grate Kit
11Grate (4) (Espresso)
14WP3368921 Whirlpool Screw
15WP3196557 Whirlpool Screw
