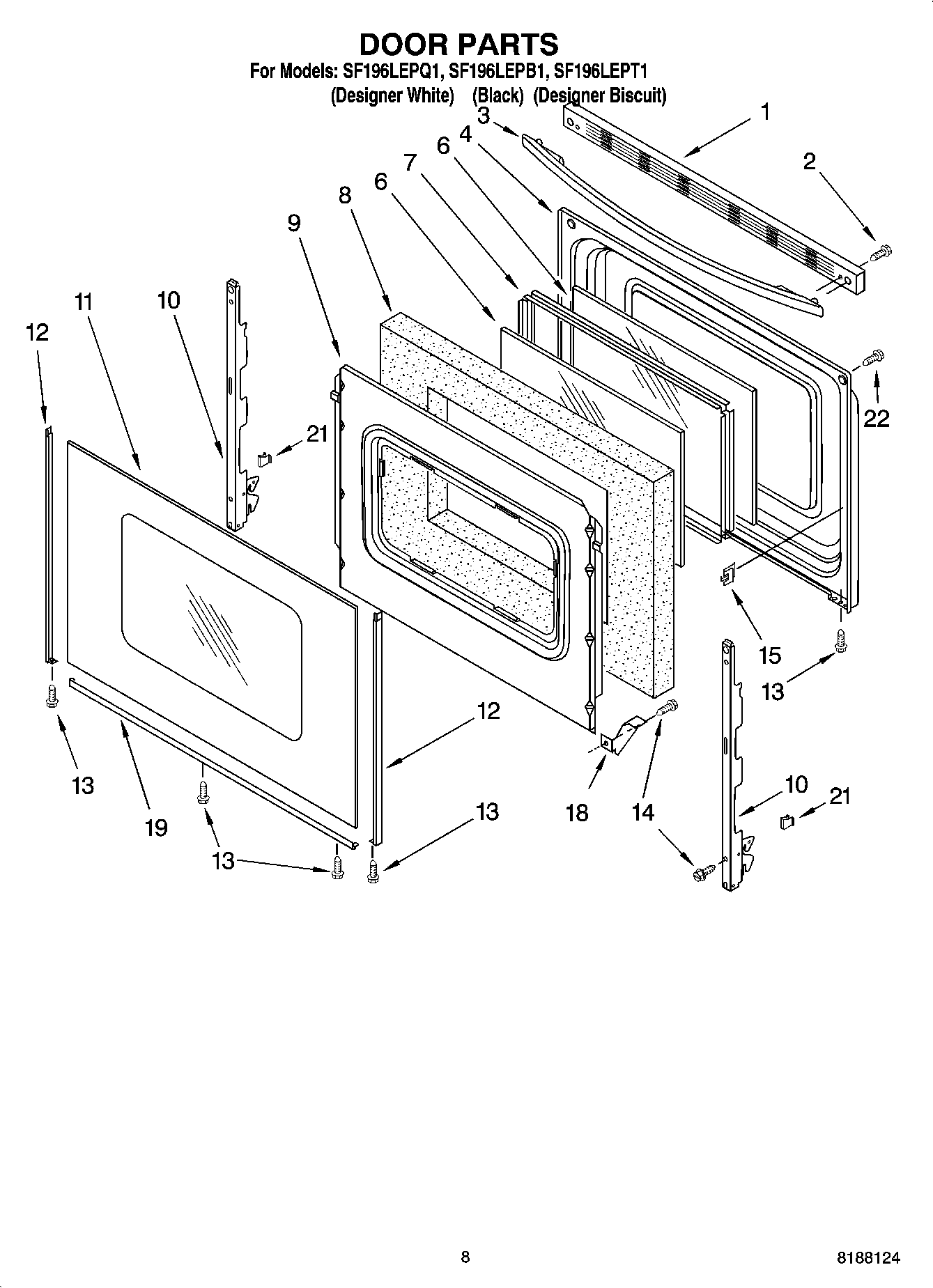

SF196LEPT1 06 – DOOR PARTS, OPTIONAL PARTS
Written by
in
SF196LEPT1 06 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
3196896 Whirlpool Clip
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
16515 Whirlpool Clip
3400964 Whirlpool Oven Clip
Wire (14 Ga. 150 c Yellow)
WPL 8524207
WPL ARI162794A
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
TIE,WIRE
WPL 9758205
8523599 Whirlpool Oven Wire Harness
Grease
3196696 Whirlpool Clip
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
WPL ARI162795A
WPL ARI162796A
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
WPL ARI162801A
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
WPL ARI162800A
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
814381 Whirlpool Pin
WPL ARI162799A
WPL ARI162798A
WPL ARI162797A
W11447673 Whirlpool Range Tip Anchor
1
WPW10016370 Whirlpool Door Trim
1
Trim, Top (Biscuit)
1
Trim, Top (Black)
2
WP3196164 Whirlpool Screw
3
W10202219 Whirlpool Door Handle Assembly
3
WPW10202217 Whirlpool Door Handle
3
Handle, Door (Biscuit)
4
Liner, Door
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
WP8053807 Whirlpool Oven Door Hinge
11
Glass, Outer (Biscuit)
11
WPW10118455 Whirlpool Door Glass Assembly
11
WPW10118454 Whirlpool Door Outer Glass White
12
WP8523172 Whirlpool Left Door Trim
12
WP8523173 Whirlpool Door Trim
12
WP8523167 Whirlpool Door Trim Assembly
12
WP8523166 Whirlpool Door Trim
12
W10761014 Whirlpool Right Door Trim
12
W10761018 Whirlpool Dishwasher Left Door Trim
13
W10491985 Whirlpool Screw
14
WP3196175 Whirlpool Screw
15
Clip, Glass (4)
18
WP3196794 Whirlpool Glass Bracket
19
WP8523175 Whirlpool Door Trim Assembly
19
WP8523177 Whirlpool Door Trim Assembly
19
WP8523178 Whirlpool Door Trim
21
WP3196925 Whirlpool Clip Assembly
22
WP179051 Whirlpool Screw
←
