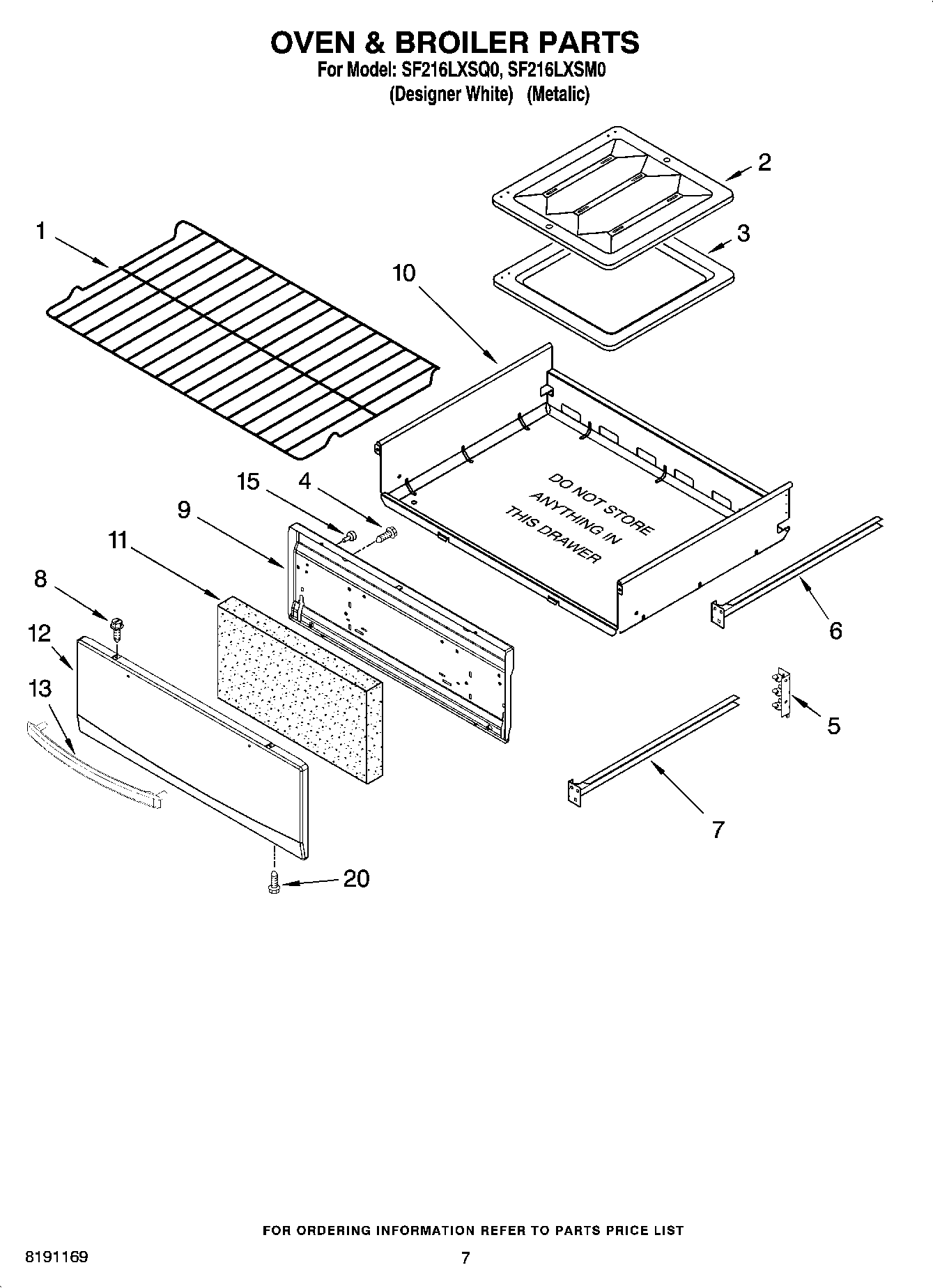

SF216LXSM0 05 – OVEN & BROILER PARTS

SF216LXSM0 05 – OVEN & BROILER PARTS

Written by

in

SF216LXSM0 05 – OVEN & BROILER PARTS

Products

PositionProduct
1Rack, Oven (2)
2WP98003480 Whirlpool Grill Pan
3WP98016005 Whirlpool Broiler Pan
4Screw
598016664 Whirlpool Oven Support Assembly
598016666 Whirlpool Oven Support
698004994 Whirlpool Oven Drawer Guide
6WPW10206639 Whirlpool Drawer Guide
7WPW10206641 Whirlpool Drawer Guide
7W10206642 Whirlpool Drawer Guide
8WP3400832 Whirlpool Screw
83196166 Whirlpool Screw
9Liner, Door
10Drawer, Broiler
11Insulation, Door
12Panel, Door (White)
12PANEL, DOOR (METALIC)
13WP98004956 Whirlpool Door Handle
13Handle, Brlr Door (White)
15BUMPER, DOOR
20WP3400805 Whirlpool Screw Assembly
