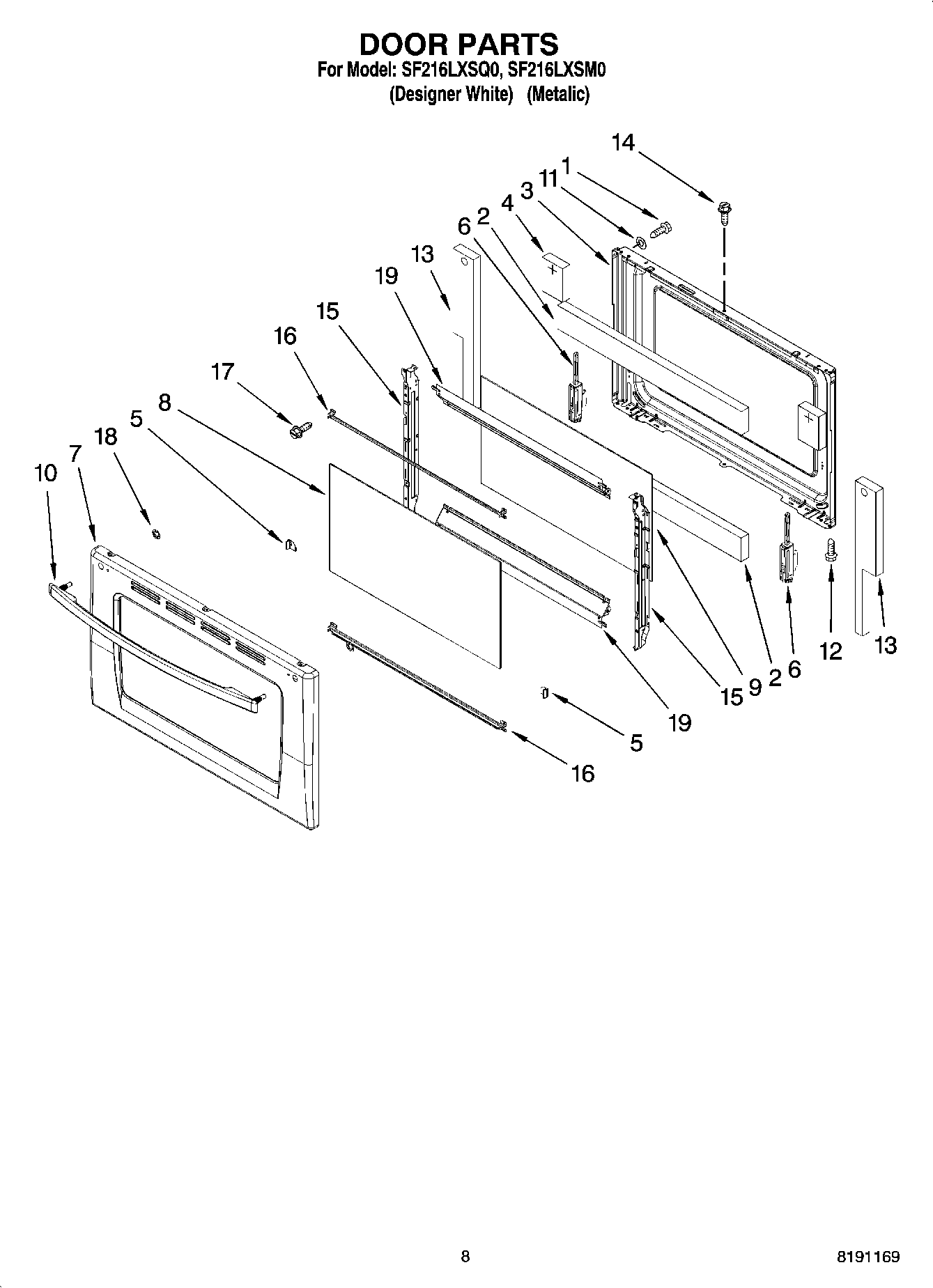

SF216LXSM0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

SF216LXSM0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

SF216LXSM0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL ARI129022A
CLIP, WIRE
8212471 Whirlpool Oven Paint
3196696 Whirlpool Clip
Grease
WPL 8316781
98015022 Whirlpool Bushing Assembly
WP3391018 Whirlpool Wire Tie
WPL ARI129021A
WPL ARI129020A
WPL ARI129019A
WPW10477747 Whirlpool Anchor Tip
WPL 98017728
WPL ARI129024A
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI129023A
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
549193 Whirlpool Refrigerator Power Clamp
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL 799832
WPW10208653 Whirlpool Insulation
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
1Screw
2W10111139 Whirlpool Insulation
3Liner, Door
4Insulation, Door
598004952 Whirlpool Oven Clip
598004953 Whirlpool Clip
6Hinge, Door (Right)
7Panel, Door (White)
7Panel, Door (Metalic)
8WPW10109950 Whirlpool Door Glass
10HANDLE, OVEN DOOR (HANDLE, OVEN DOOR)
10Handle, Oven Door (White)
11Actuator (2)
12WP59002061 Whirlpool Microwave Screw
13Insulation (Right)
13W11688784 Whirlpool Insulation
143196166 Whirlpool Screw
14WP3400832 Whirlpool Screw
1598004629 Whirlpool Oven Retainer
1598004564 Whirlpool Oven Retainer
16SUPPORT, GLASS
17WP3400805 Whirlpool Screw Assembly
18WP98004650 Whirlpool Nut
1998015806 Whirlpool Oven Retainer
