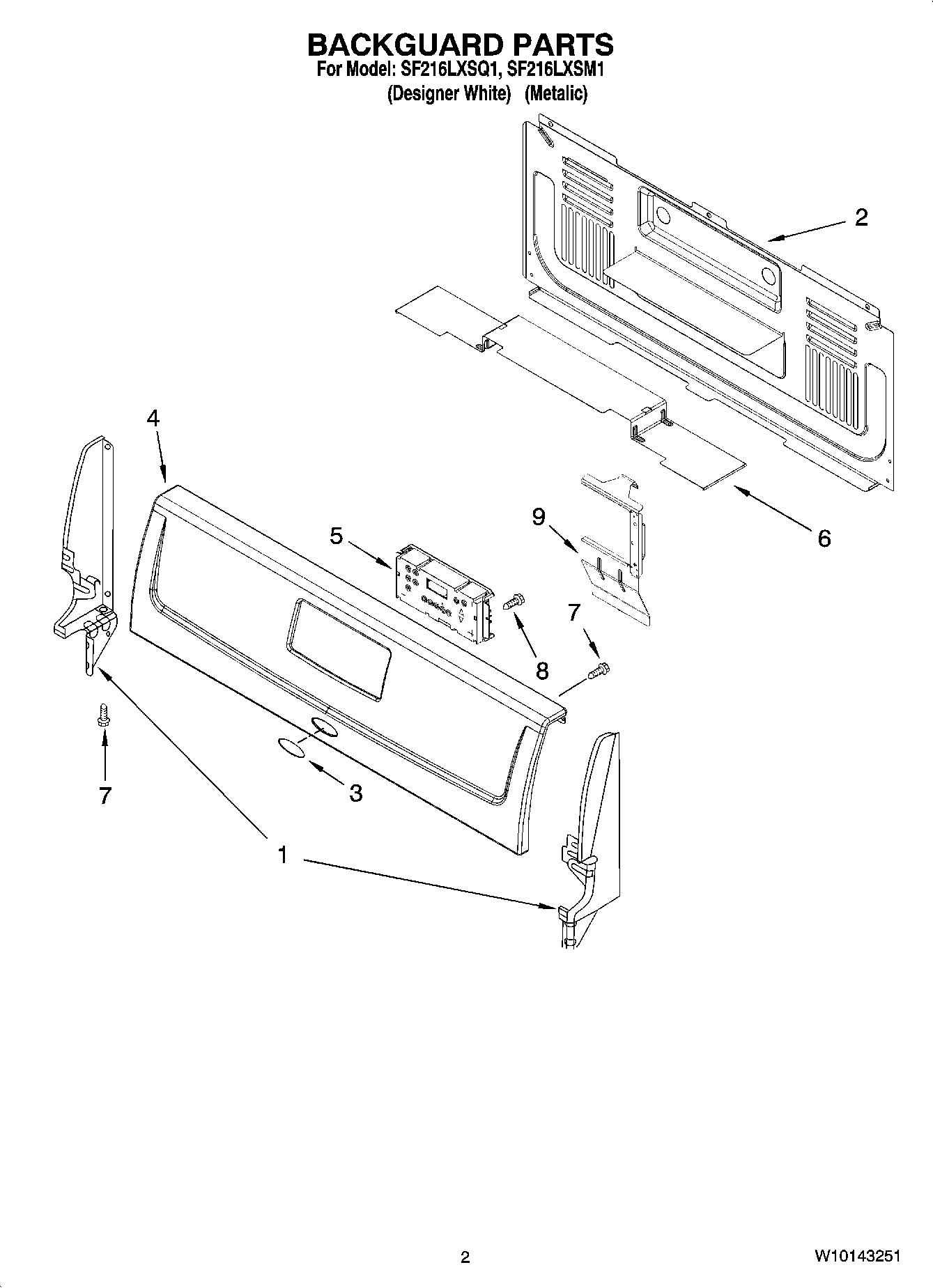

SF216LXSQ1 02 – BACKGUARD PARTS

SF216LXSQ1 02 – BACKGUARD PARTS

Written by

in

SF216LXSQ1 02 – BACKGUARD PARTS

Products

PositionProduct
198005337 Whirlpool Oven Endcap Panel
198004632 Whirlpool Oven Endcap Panel
198004633 Whirlpool Oven Endcap Panel
198005336 Whirlpool Oven Endcap Panel
298006083 Whirlpool Oven Rear Cover
3Nameplate
4Panel, Control (White)
4Panel, Control (Metalic)
5WPW10312662-includeCORE Whirlpool WPW10312662 Refrigerator Electronic Control Board + Core
5WPW10112876-includeCORE Whirlpool WPW10112876 Electronic Control Board + Core
6Deflctor, Rear Cvr
8WP3400805 Whirlpool Screw Assembly
998018144 Whirlpool Oven Timer Bracket
998018143 Whirlpool Oven Timer Bracket
