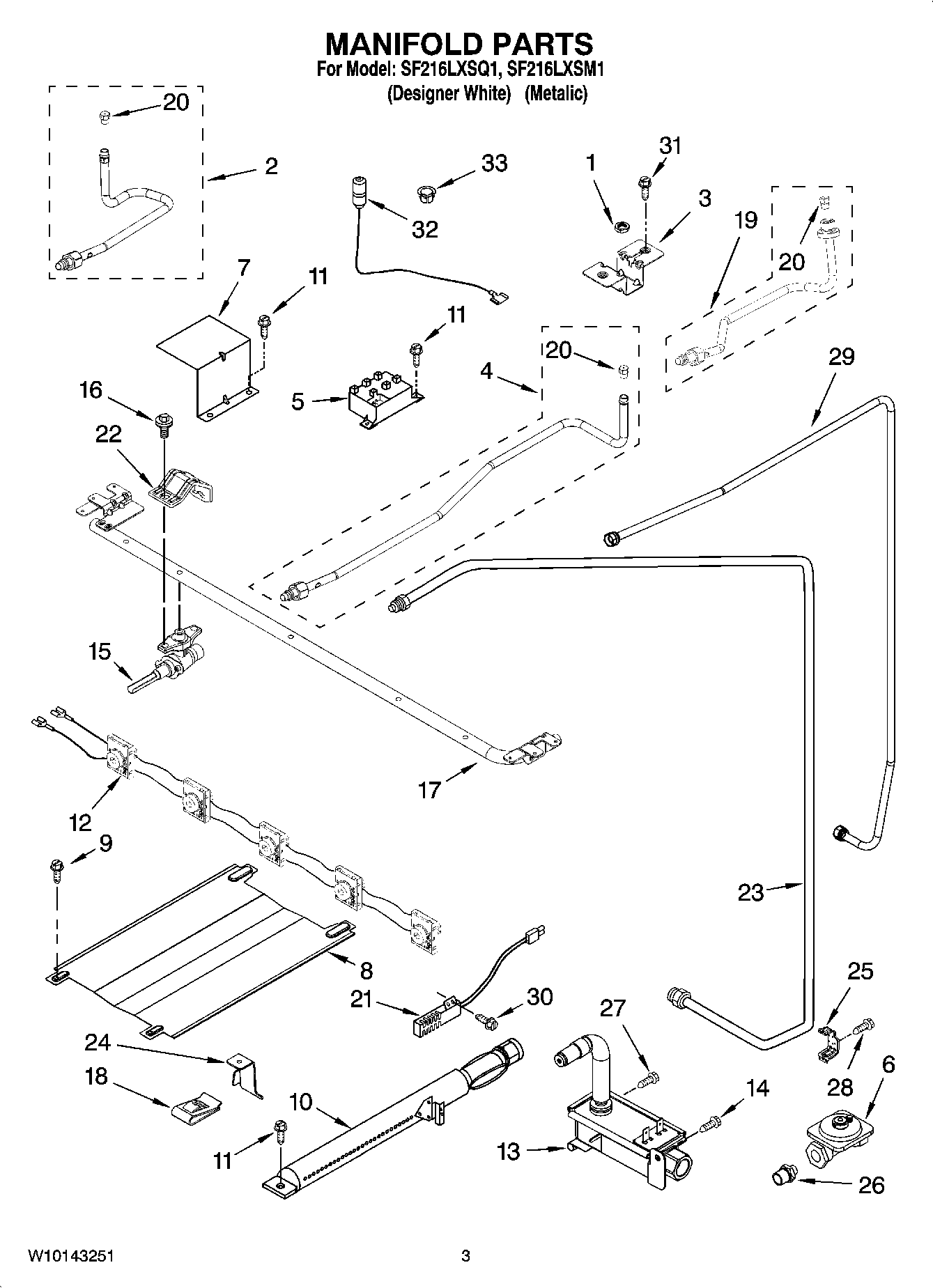

SF216LXSQ1 03 – MANIFOLD PARTS

SF216LXSQ1 03 – MANIFOLD PARTS

Written by

in

SF216LXSQ1 03 – MANIFOLD PARTS

Products

PositionProduct
1WPY703856 Whirlpool Nut
2Venturi, Front (2) (LF)
2W11661107 Whirlpool Range Venturi
3WP98017741 Whirlpool Mounting Bracket
4WPW10110342 Whirlpool Venturi
5W11565127 Whirlpool Spark Module
6Regulator
798007192 Whirlpool Cover Model
898015099 Whirlpool Oven Burner Baffle
9SCREW
10WP98012138 Whirlpool Oven Burner
12W10361493 Whirlpool Wire Harness
13WP98014893 Whirlpool Gas Safety Valve Assembly
14W10837731 Whirlpool Screw Assembly
15Valve, Burner (Center-Fish Burner)
15Valve, Burner (4)
1698017517 Whirlpool Oven Screw
17Pipe, Manifold
1898009179 Whirlpool Oven Nut
19W10110345 Whirlpool Venturi
20WP98017587 Whirlpool Orifice
20W10110355 Whirlpool Orifice
2098017586 Whirlpool Oven Orifice
21W10918546 Whirlpool Oven Range Igniter
2298017516 Whirlpool Mounting Bracket
23WPW10469571 Whirlpool Gas Tubing
2498013314 Whirlpool Oven Support Bracket
2598007410 Whirlpool Oven Mounting Bracket
2698007431 Whirlpool Oven Fitting
2798013634 Whirlpool Oven Screw
28Screw, Ground
29WP98017171 Whirlpool Gas Tubing
30W11676351 Whirlpool Screw
31W10837674 Whirlpool Screw
32WPW10209656 Whirlpool Surface Ignitor
32WPW10209657 Whirlpool Oven Surface Igniter
33WPW10278150 Whirlpool Clip Assembly
33LP Orifice Kit (For Use With LP)
33Following Parts Not Illustrated
