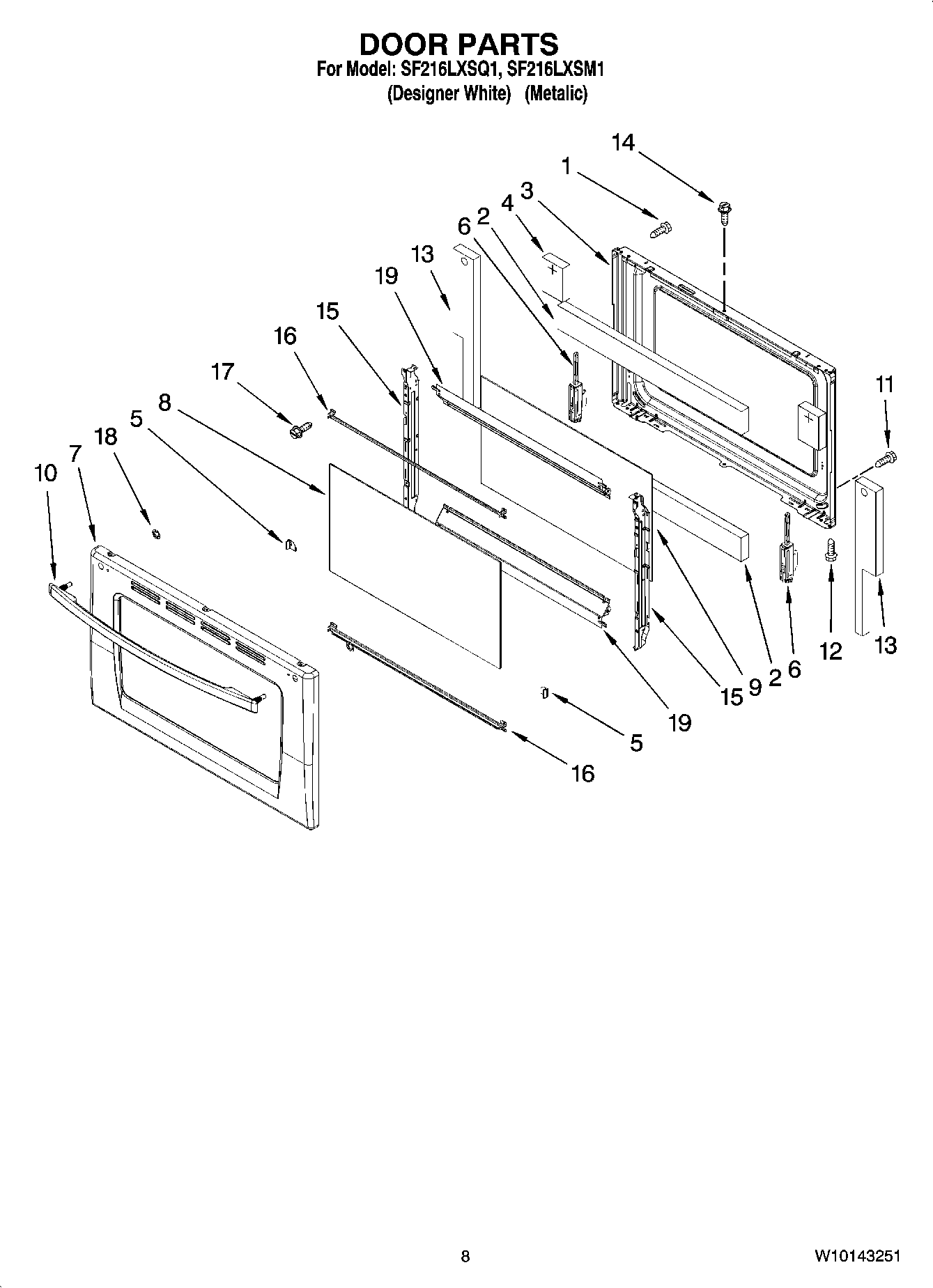

SF216LXSQ1 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

SF216LXSQ1 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

SF216LXSQ1 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
W10142307 Whirlpool Wire Harness
Wire (14 Ga. 200 c Brown)
WPL ARI129048A
WPL ARI129047A
8212471 Whirlpool Oven Paint
3196696 Whirlpool Clip
Grease
WPL 8316781
98015022 Whirlpool Bushing Assembly
WP3391018 Whirlpool Wire Tie
CLIP, WIRE
WPL ARI129046A
98012220 Whirlpool Oven Door Pin
WPL ARI129045A
WPL ARI129044A
WPW10477747 Whirlpool Anchor Tip
WPL ARI129050A
W10141515 Whirlpool Wire Harness
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
WPL ARI129049A
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
549193 Whirlpool Refrigerator Power Clamp
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
242831 Whirlpool Oven Wire
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
WPW10208653 Whirlpool Insulation
WPL 799832
1Screw
2W10111139 Whirlpool Insulation
3Liner, Door
4Insulation, Door
598004953 Whirlpool Clip
598004952 Whirlpool Oven Clip
6Hinge, Door (Right)
7Panel, Door (Metalic)
7Panel, Door (White)
8WPW10109950 Whirlpool Door Glass
10HANDLE, OVEN DOOR (HANDLE, OVEN DOOR)
10Handle, Oven Door (White)
11W11206744 Whirlpool Screw
12WP59002061 Whirlpool Microwave Screw
13W11688784 Whirlpool Insulation
13Insulation (Right)
143196166 Whirlpool Screw
14WP3400832 Whirlpool Screw
1598004564 Whirlpool Oven Retainer
1598004629 Whirlpool Oven Retainer
16SUPPORT, GLASS
17WP3400805 Whirlpool Screw Assembly
18WP98004650 Whirlpool Nut
1998015806 Whirlpool Oven Retainer
