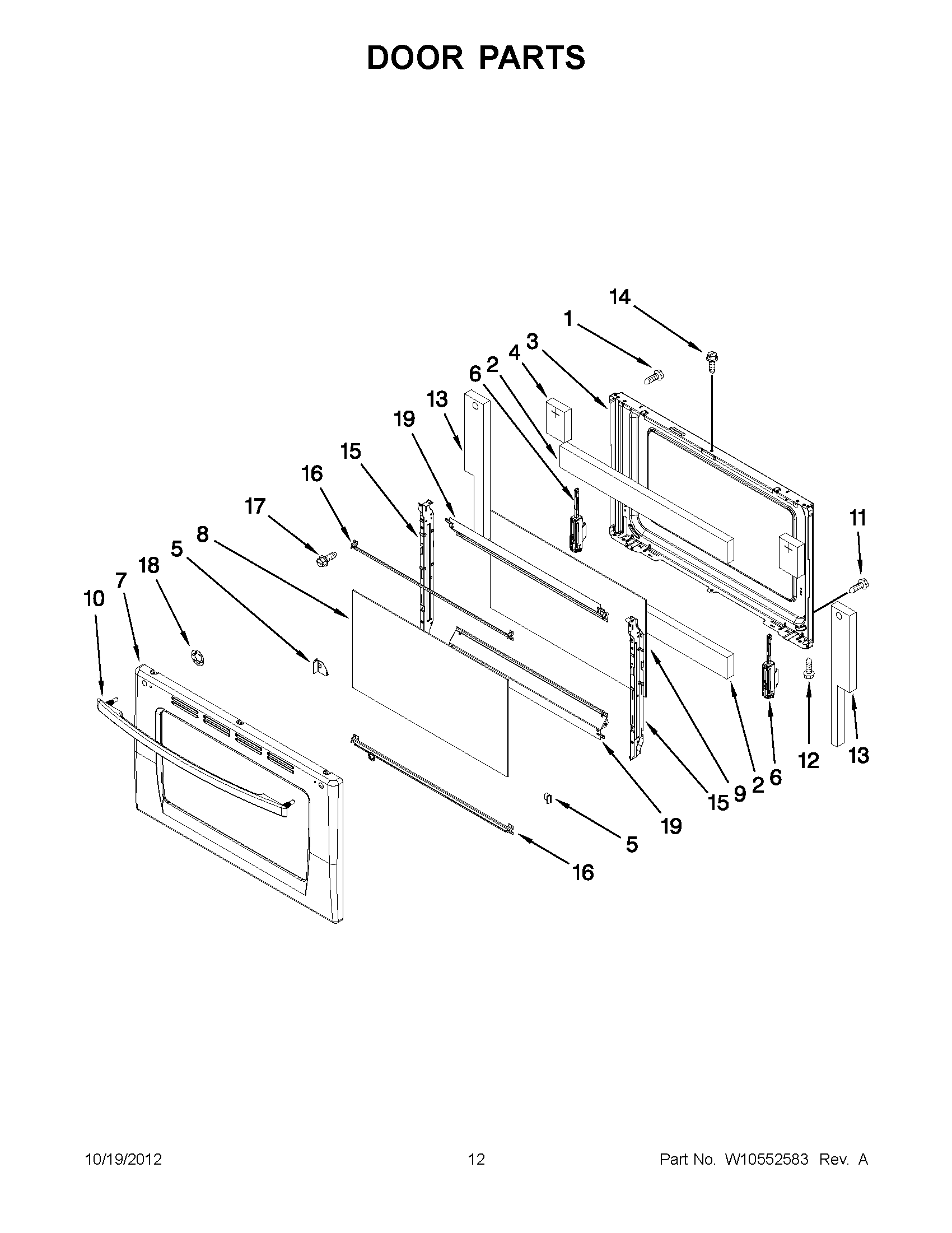

SF216LXSQ3 06 – DOOR PARTS

Products

Position	Product
1	Screw
2	W10111139 Whirlpool Insulation
3	Liner, Door
4	Insulation, Door
5	98004953 Whirlpool Clip
5	98004952 Whirlpool Oven Clip
6	Hinge, Door (Right)
7	Panel, Door (White)
8	WPW10109950 Whirlpool Door Glass
10	Handle, Oven Door (White)
11	W11206744 Whirlpool Screw
12	WP59002061 Whirlpool Microwave Screw
13	Insulation (Right)
13	W11688784 Whirlpool Insulation
14	3196166 Whirlpool Screw
15	98004629 Whirlpool Oven Retainer
15	98004564 Whirlpool Oven Retainer
16	SUPPORT, GLASS
17	WP3400805 Whirlpool Screw Assembly
18	WP98004650 Whirlpool Nut
19	98015806 Whirlpool Oven Retainer
