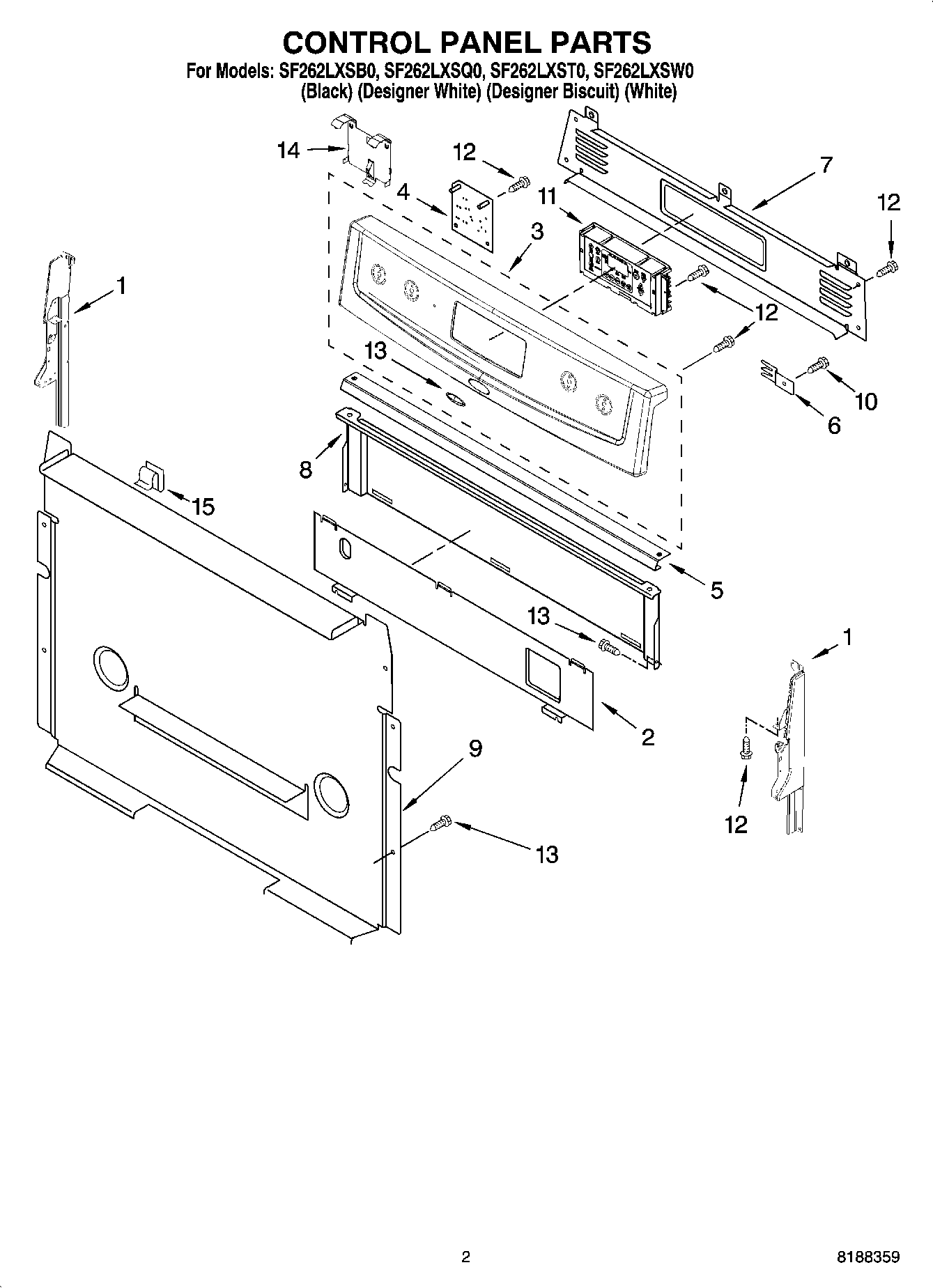

SF262LXSB0 02 – CONTROL PANEL PARTS

SF262LXSB0 02 – CONTROL PANEL PARTS

Written by

in

SF262LXSB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11230612 Whirlpool Panel End Cap
1Endcap (Biscuit Left Hand)
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
28053505 Whirlpool Oven Shield
3Panel, Control (Black)
3Panel, Control (Biscuit)
3Panel, Control (White)
4WPW10331686 Whirlpool Oven Spark Module
5BRACKET, MOUNTING EOC
5Bracket, Console
68523412 Whirlpool Mounting Bracket
7Cover, Upper
8Shield, Heat
9Cover, Lower
10WP3196557 Whirlpool Screw
11WPW10114374 Whirlpool Electronic Control Board
11WPW10114373 Whirlpool Electronic Control Board
11Control, Range (Biscuit)
12SCREW
13Nameplate
14Brkt-Mntg, DSI
15WP8273564 Whirlpool Clip
