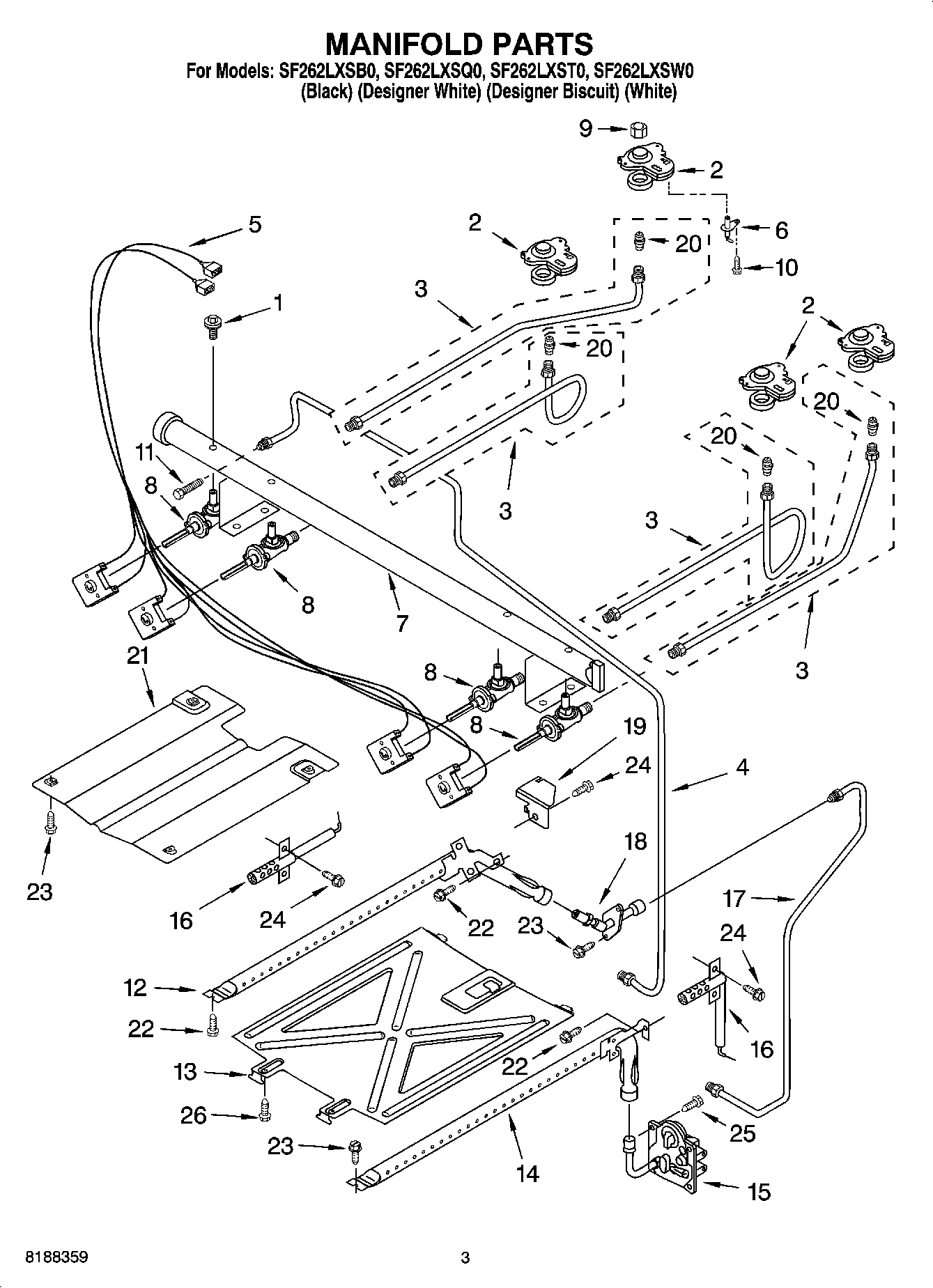

SF262LXSB0 03 – MANIFOLD PARTS

SF262LXSB0 03 – MANIFOLD PARTS

Written by

in

SF262LXSB0 03 – MANIFOLD PARTS

Products

PositionProduct
1WP8273096 Whirlpool Screw
2Burner Base (Small (1))
2WP8273700 Whirlpool Base Burner
3WP8273693 Whirlpool Gas Tubing
3Tubing, Burner W/Orifice (Left Rear)
3Tubing, Burner W/Orifice (Right Front)
3Tubing, Burner W/Orifice (Right Rear)
4Tubing (Manifold to Regulator)
5WPW10295998 Whirlpool Wire Harness
6WP8523793 Whirlpool Oven Surface Igniter
7Pipe, Manifold
8Valve (Right Rear)
8WP9757218 Whirlpool Burner Valve
9Nut (4)
10WP8273062 Whirlpool Screw
11Bolt
12WP8054078 Whirlpool Broiler Burner
13Spreader, Flame (Oven)
14WP9758078 Whirlpool Oven Burner
15WPW10293048 Whirlpool Gas Valve
16WP9758079 Whirlpool Oven Igniter
16WP8054129 Whirlpool Oven Igniter
17Tubing (Broiler Fitting To Valve)
18Fitting, Broiler
19Cover, Igniter
20WP8273066 Whirlpool Orifice
20WP8273065 Whirlpool Orifice
20WP8273064 Whirlpool Orifice
20WP8273067 Whirlpool Orifice
21W10137062 Whirlpool Burner Baffle
223196265 Whirlpool Oven Screw
23SCREW
24W11684507 Whirlpool Screw
25WP3400016 Whirlpool Screw Assembly
26Spuds, LP Gas (Kit of 4)
26Screw
26Following Parts Not Illustrated
