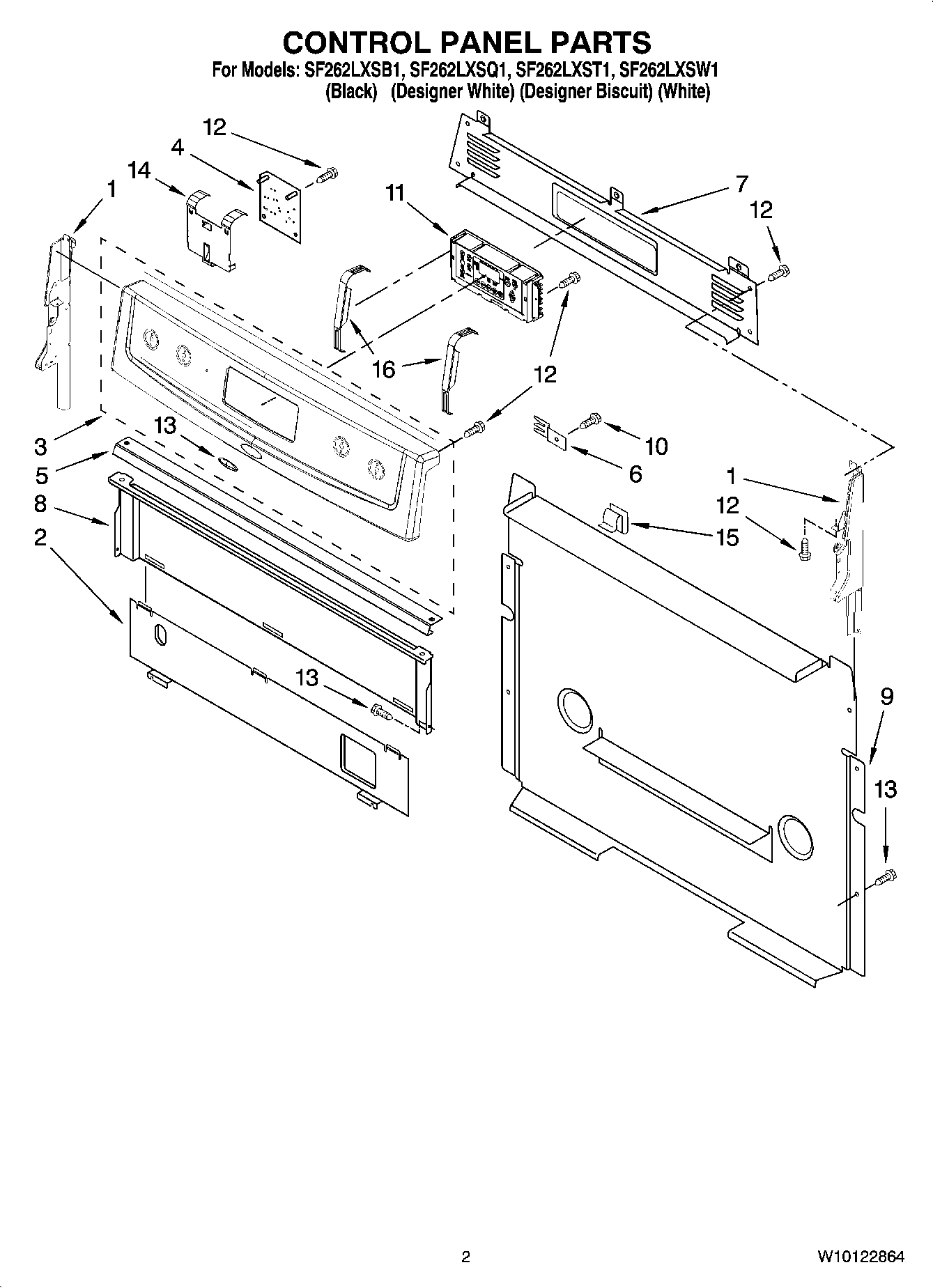

SF262LXSB1 02 – CONTROL PANEL PARTS
Written by
in
SF262LXSB1 02 – CONTROL PANEL PARTS
Products
Position
Product
1
W11230612 Whirlpool Panel End Cap
1
W11219664 Whirlpool Endcap Panel
1
W11219665 Whirlpool Panel Endcap
1
W11219365 Whirlpool Panel Endcap
1
W11219370 Whirlpool Endcap Panel
1
Endcap (Biscuit Left Hand)
2
8053505 Whirlpool Oven Shield
3
Panel, Control (Biscuit)
3
Panel, Control (Black)
3
Panel, Control (White)
4
WPW10331686 Whirlpool Oven Spark Module
5
Bracket, Console
6
8523412 Whirlpool Mounting Bracket
7
Cover, Upper
8
Shield, Heat
9
Cover, Lower
10
WP3196557 Whirlpool Screw
11
Control, Range (White)
11
WPW10108260 Whirlpool Electronic Control Board
11
Control, Range (Biscuit)
12
SCREW
13
Nameplate
14
Brkt-Mntg, DSI
15
WP8273564 Whirlpool Clip
16
BRACKET, MOUNTING EOC
←
