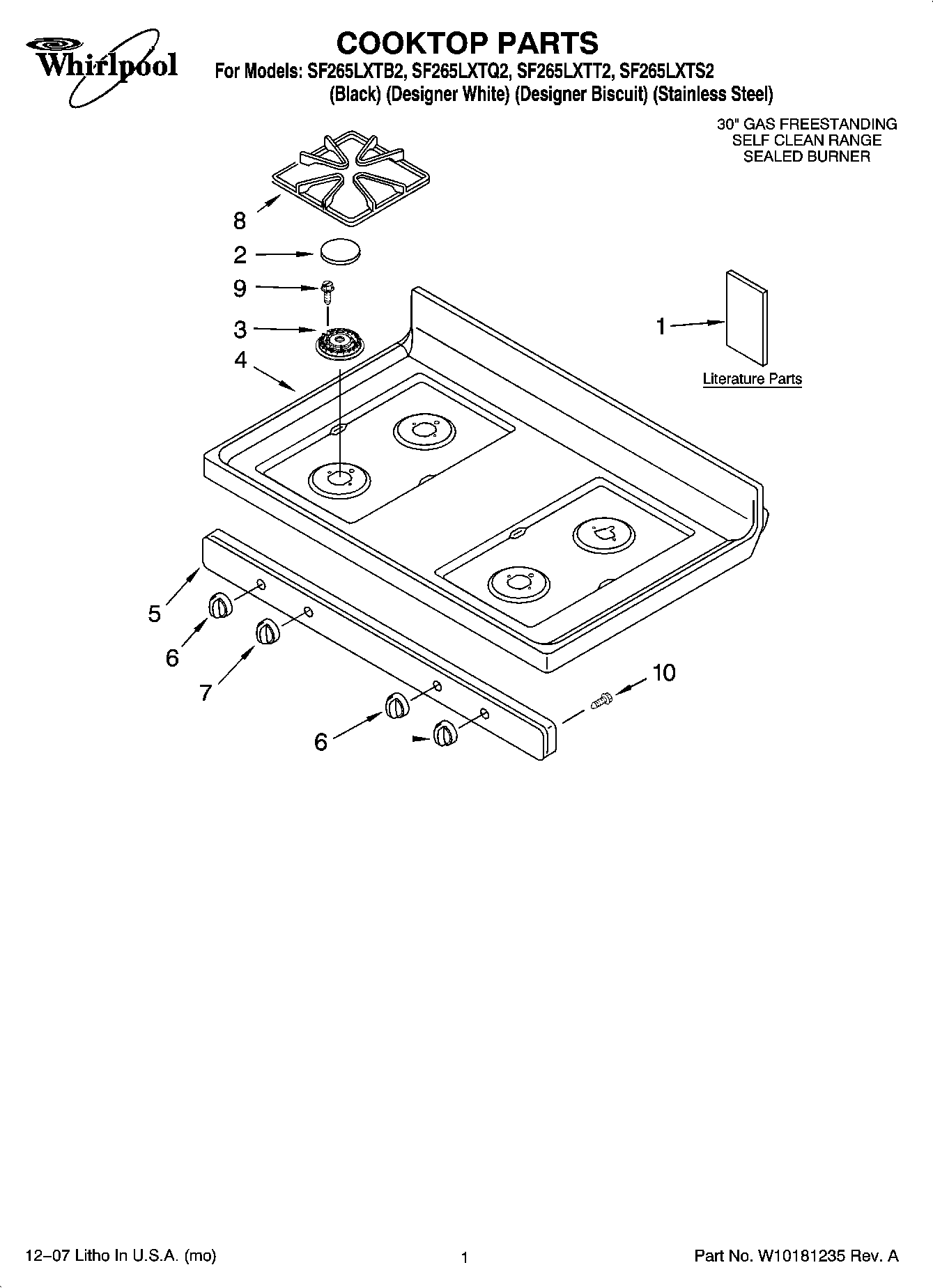

SF265LXTB2 01 – COOKTOP PARTS

SF265LXTB2 01 – COOKTOP PARTS

Written by

in

SF265LXTB2 01 – COOKTOP PARTS

Products

PositionProduct
1Owners Manual
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
1SAFER COOKING TIPS (ENGLISH
1Installation Instructions
1Tech Sheet
2WP8273344 Whirlpool Burner Cap
2WP8273345 Whirlpool Burner Cap
2WP3191898 Whirlpool Surface Burner Cap Black
2WP8273343 Whirlpool Burner Cap
2WP3191904 Whirlpool Burner Cap
2WP3191905 Whirlpool Burner Cap
2WP3191903 Whirlpool Burner Cap
2WP3191901 Whirlpool Burner Cap
2Cap, Burner 6K (1) (Gray)
3WP4455979 Whirlpool Range Small Burner Head
3WP4455980 Whirlpool Burner Head
3WP4455981 Whirlpool Burner Head
48195546 Whirlpool Oven Cooktop O/S2
4W11213958 Whirlpool Oven Cooktop
4W11213959 Whirlpool Cooktop
5WP8523854 Whirlpool Manifold Panel
5Panel, Manifold (Biscuit)
58523855 Whirlpool Oven Manifold Panel
6Knob, Control (2)
6W11242931 Whirlpool Knob
6Knob, Control (3) (Biscuit)
7Knob, Powerburner (Biscuit)
7Knob, Powerburner
8WPW10447925 Whirlpool Grate Kit
8Grate (4) (Espresso)
9WP3368921 Whirlpool Screw
10WP3196557 Whirlpool Screw
