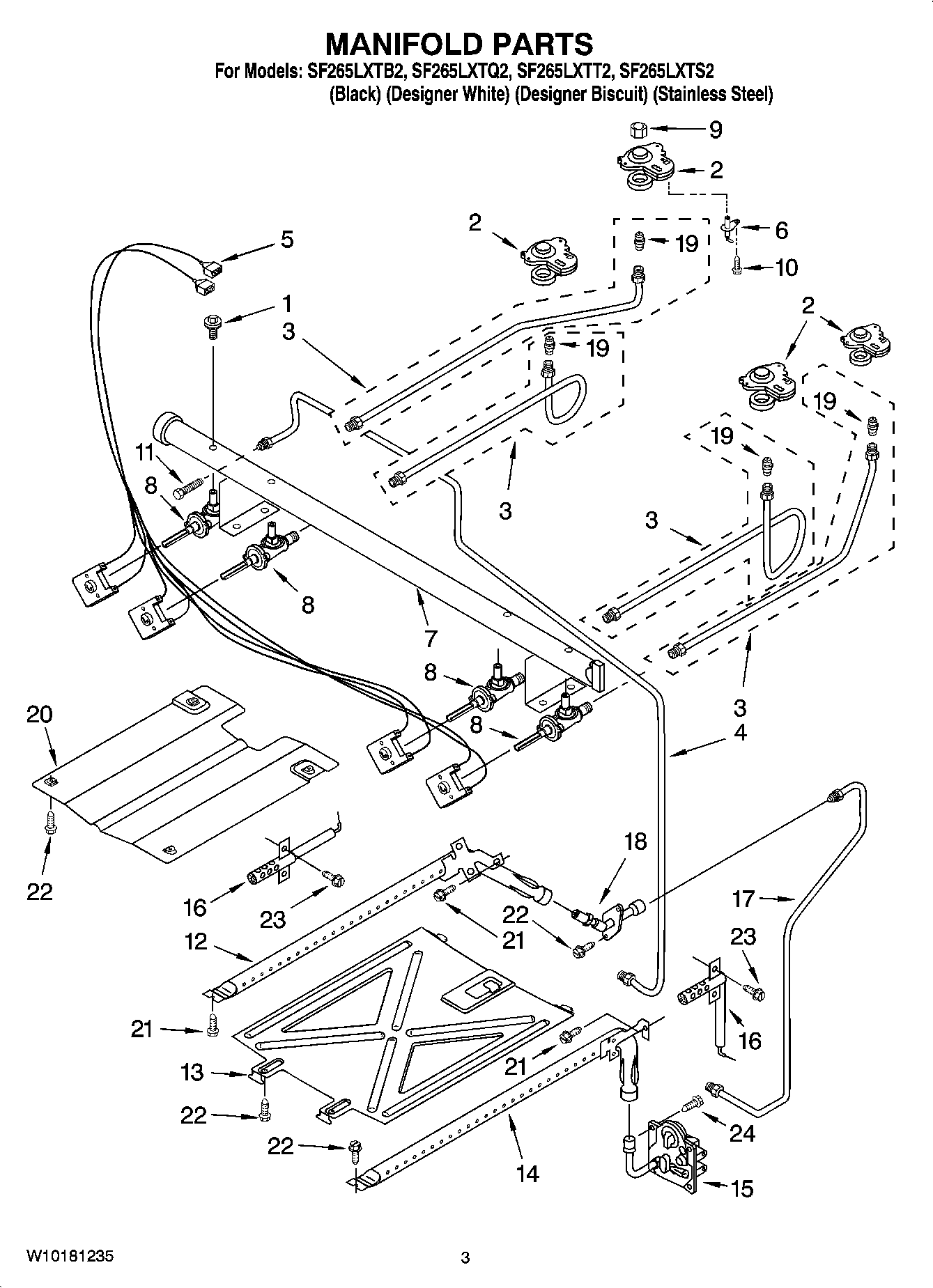

SF265LXTB2 03 – MANIFOLD PARTS

Products

Position	Product
	Following Parts Not Illustrated
	Spuds, LP Gas (Kit of 4)
1	WP8273096 Whirlpool Screw
2	WP8273700 Whirlpool Base Burner
2	Burner Base (Small (1))
3	Tubing, Burner W/Orifice (Right Rear)
3	Tubing, Burner W/Orifice (Left Rear)
3	Tubing, Burner W/Orifice (Right Front)
3	WP8273693 Whirlpool Gas Tubing
4	Tubing (Manifold to Regulator)
5	WPW10295998 Whirlpool Wire Harness
6	WP8523793 Whirlpool Oven Surface Igniter
7	Pipe, Manifold
8	WP9757218 Whirlpool Burner Valve
8	Valve (Right Rear)
9	Nut (4)
10	WP8273062 Whirlpool Screw
11	Bolt
12	WP8054078 Whirlpool Broiler Burner
13	Spreader, Flame (Oven)
14	WP9758078 Whirlpool Oven Burner
15	WPW10293048 Whirlpool Gas Valve
16	WP9758079 Whirlpool Oven Igniter
16	WP8054129 Whirlpool Oven Igniter
17	Tubing (Broiler Fitting To Valve)
18	Fitting, Broiler
19	WP8273064 Whirlpool Orifice
19	WP8273067 Whirlpool Orifice
19	WP8273066 Whirlpool Orifice
19	WP8273065 Whirlpool Orifice
20	W10137062 Whirlpool Burner Baffle
21	3196265 Whirlpool Oven Screw
22	SCREW
23	W11684507 Whirlpool Screw
24	WP3400016 Whirlpool Screw Assembly
