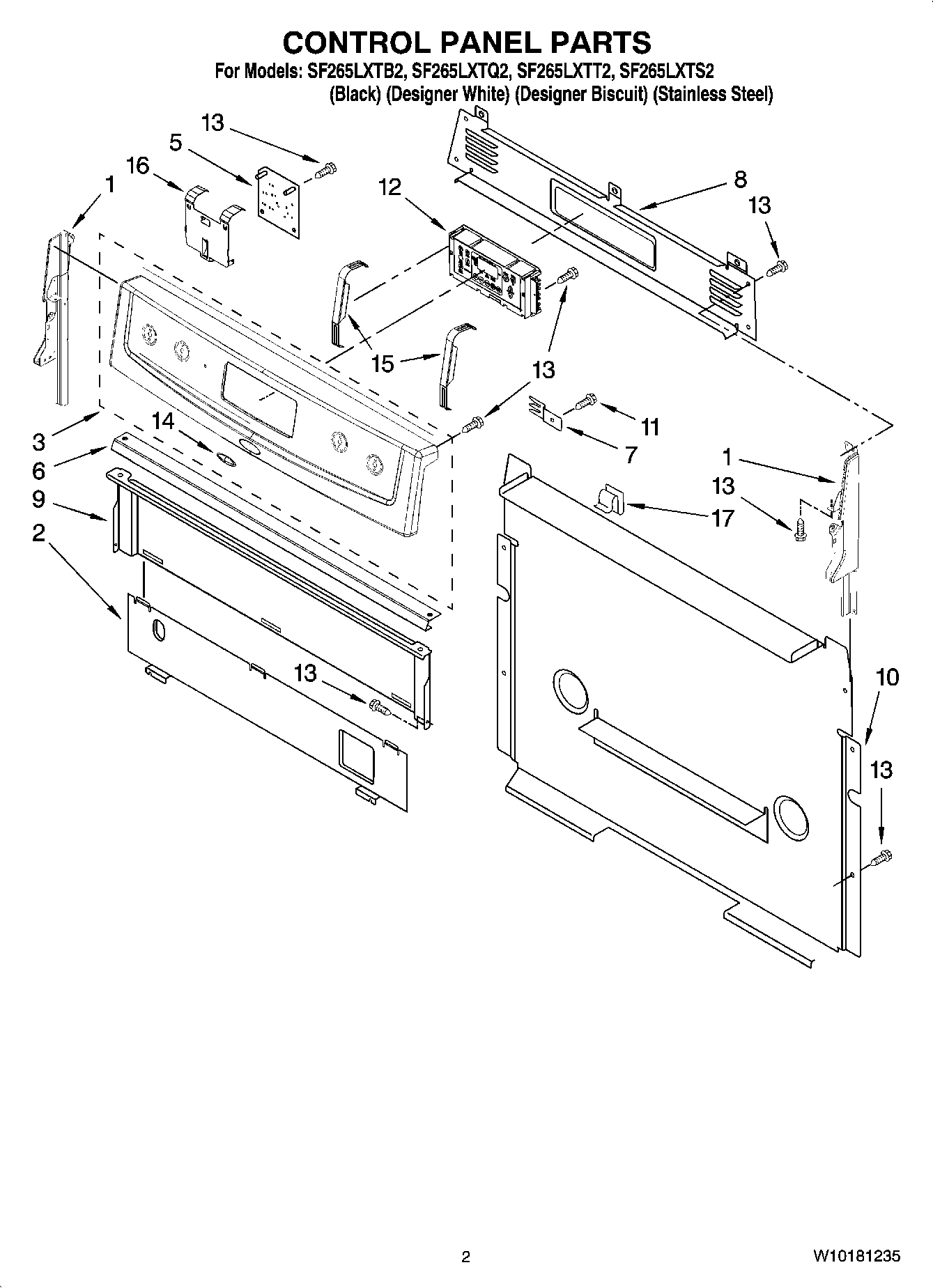

SF265LXTQ2 02 – CONTROL PANEL PARTSadmin2025-04-26T12:54:30+00:00SF265LXTQ2 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | W11230612 Whirlpool Panel End Cap |
| 1 | Endcap (Biscuit Left Hand) |
| 1 | W11219664 Whirlpool Endcap Panel |
| 1 | W11219665 Whirlpool Panel Endcap |
| 1 | W11219370 Whirlpool Endcap Panel |
| 1 | W11219365 Whirlpool Panel Endcap |
| 2 | 8053505 Whirlpool Oven Shield |
| 3 | Panel, Backguard (Black) |
| 3 | Panel, Backguard (Biscuit) |
| 3 | Panel, Backguard (Silver for Stnlss) |
| 3 | Panel, Backguard (White) |
| 5 | WPW10331686 Whirlpool Oven Spark Module |
| 6 | Bracket, Console |
| 7 | 8523412 Whirlpool Mounting Bracket |
| 8 | Cover, Upper |
| 9 | Shield, Heat |
| 10 | Cover, Lower |
| 11 | WP3196557 Whirlpool Screw |
| 12 | WPW10108200 Whirlpool Electronic Control Board |
| 12 | WPW10108190 Whirlpool Electronic Control Board |
| 13 | SCREW |
| 14 | Nameplate |
| 15 | BRACKET, MOUNTING EOC |
| 16 | Brkt-Mntg, DSI |
| 17 | WP8273564 Whirlpool Clip |
