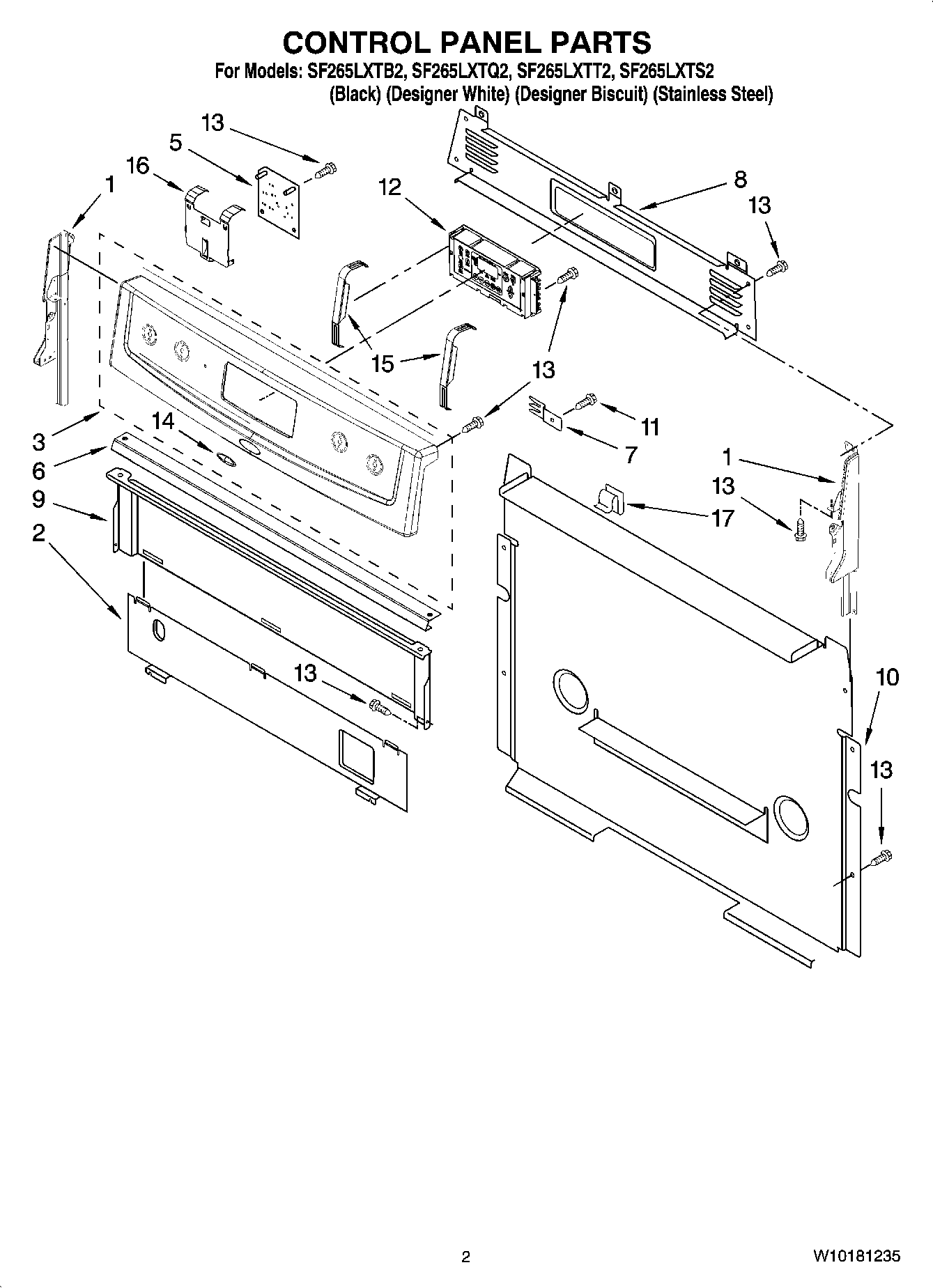

SF265LXTS2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11230612 Whirlpool Panel End Cap
1	Endcap (Biscuit Left Hand)
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
2	8053505 Whirlpool Oven Shield
3	Panel, Backguard (Black)
3	Panel, Backguard (Biscuit)
3	Panel, Backguard (Silver for Stnlss)
3	Panel, Backguard (White)
5	WPW10331686 Whirlpool Oven Spark Module
6	Bracket, Console
7	8523412 Whirlpool Mounting Bracket
8	Cover, Upper
9	Shield, Heat
10	Cover, Lower
11	WP3196557 Whirlpool Screw
12	WPW10108200 Whirlpool Electronic Control Board
12	WPW10108190 Whirlpool Electronic Control Board
13	SCREW
14	Nameplate
15	BRACKET, MOUNTING EOC
16	Brkt-Mntg, DSI
17	WP8273564 Whirlpool Clip
