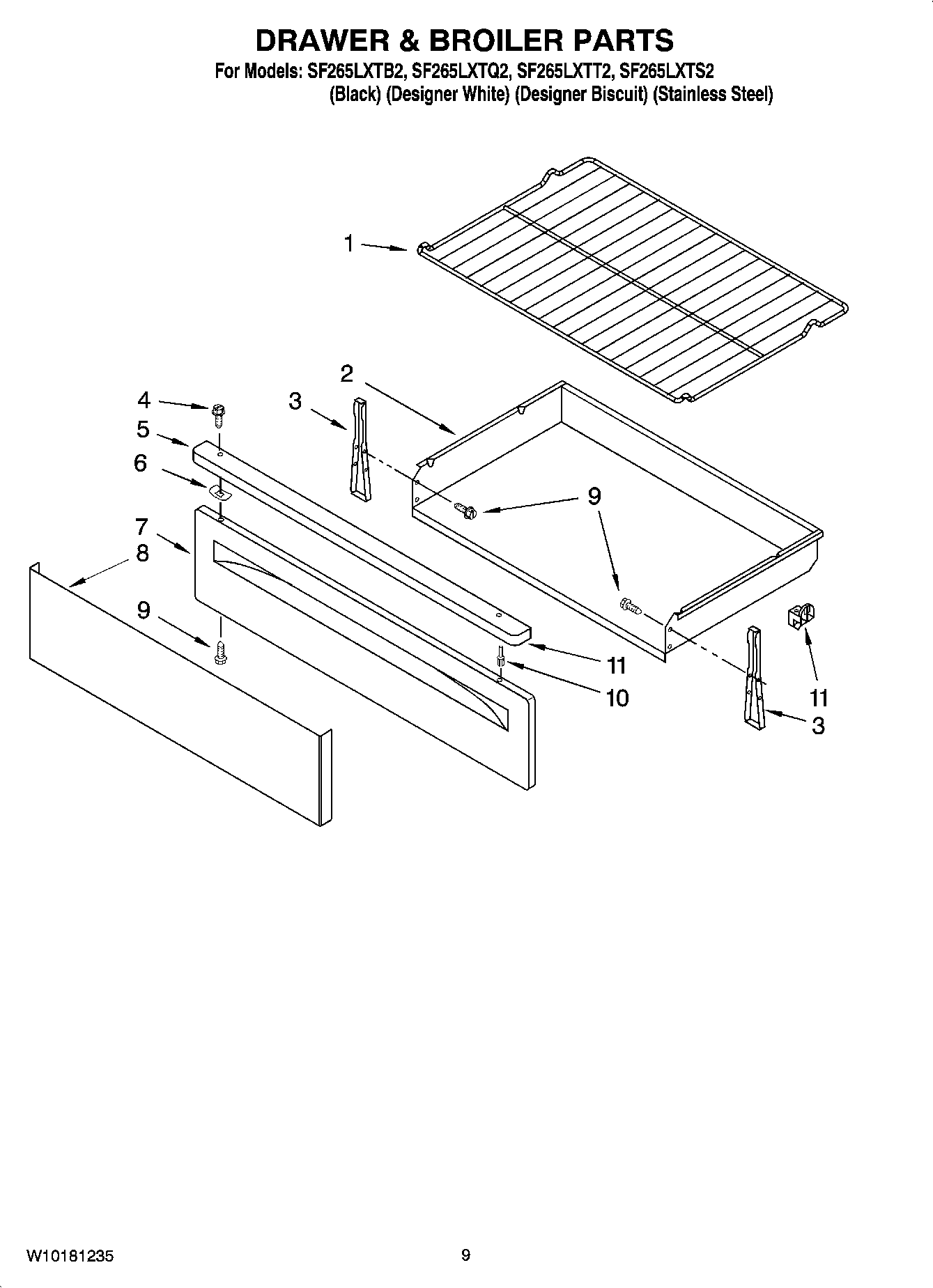

SF265LXTT2 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI129202A
	Grease
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	WP3196174 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	3196896 Whirlpool Clip
	W10045060 Whirlpool Grounding Wire
	WPL ARI129201A
	WPL ARI129200A
	WPL ARI129199A
	WPL ARI129198A
	WPL ARI129197A
	WPL ARI129196A
	WPL W10082160
	WPL 8524207
	8523599 Whirlpool Oven Wire Harness
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	350930 Whirlpool White Spray Paint
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	Wire, 25` Roll (Red 14 Ga.)
	16515 Whirlpool Clip
	285006 Whirlpool Spray
	W11447673 Whirlpool Range Tip Anchor
	3400964 Whirlpool Oven Clip
1	WPW10256908 Whirlpool Oven Range Rack
2	Drawer, Storage
3	BRKT-MNTG
4	WPW10031790 Whirlpool Screw
5	Handle (Black)
6	WP9781235 Whirlpool Clip
7	Panel, Drawer Front (Biscuit)
7	W11230490 Whirlpool Drawer Panel
7	W11230486 Whirlpool Drawer Panel
8	Panel, Stnls & US
9	WP3400832 Whirlpool Screw
10	WP3196813 Whirlpool Rivet
10	WP3196814 Whirlpool Rivet
10	3196815 Whirlpool Oven Rivet
11	WP8053334 Whirlpool Drawer Glide
