SF272LXTD0 01 – COOKTOP PARTS

SF272LXTD0 01 – COOKTOP PARTS

Written by

in

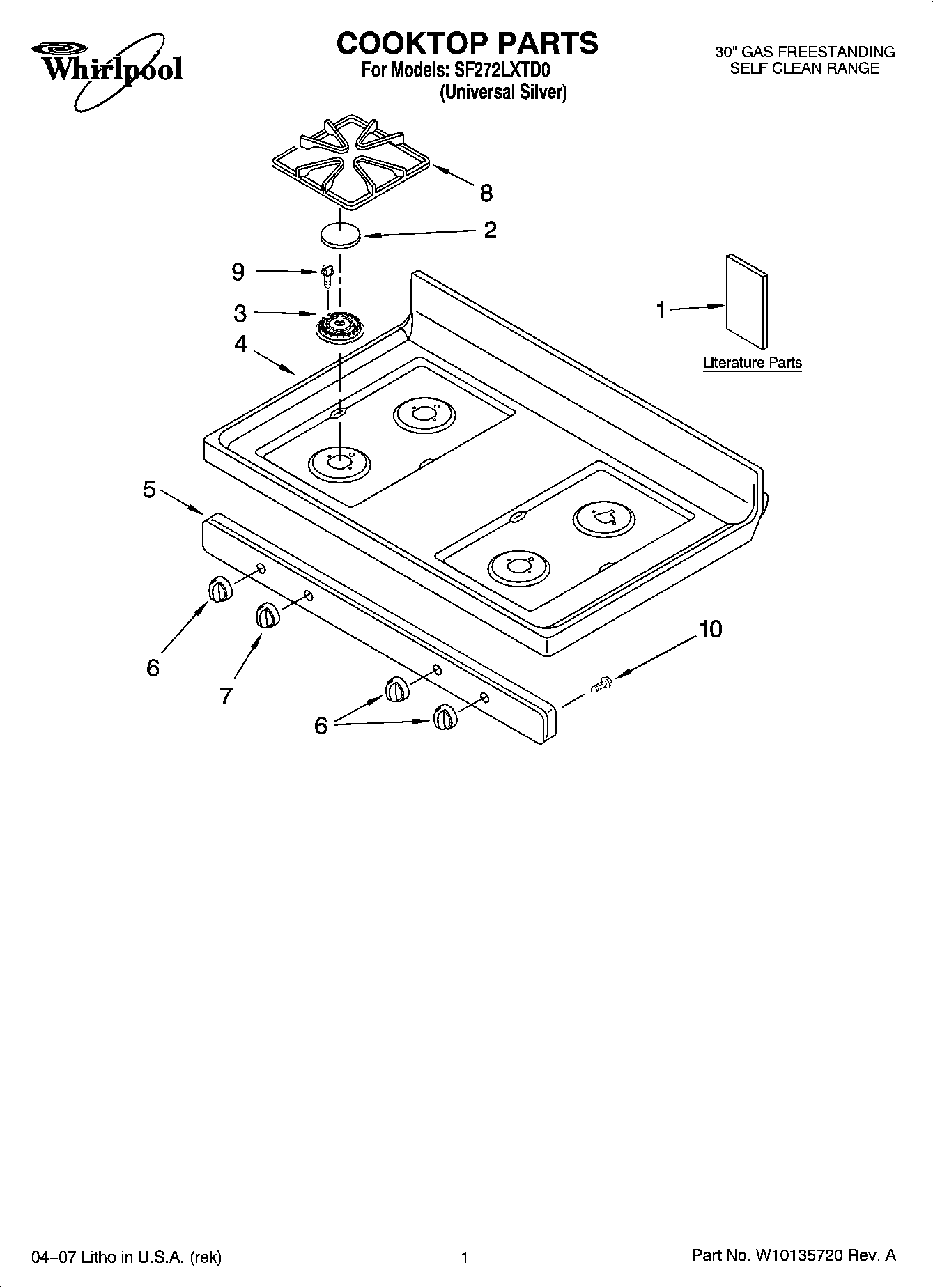

SF272LXTD0 01 – COOKTOP PARTS

Products

PositionProduct
1Tech Sheet
1Owners Manual
1Installation Instructions
1Anti-Tip Template (English/French)
1Anti-Tip Template (English/Spanish)
1SAFER COOKING TIPS (ENGLISH
2WP3191898 Whirlpool Surface Burner Cap Black
2WP3191901 Whirlpool Burner Cap
2WP3191904 Whirlpool Burner Cap
3WP4455981 Whirlpool Burner Head
3WP4455980 Whirlpool Burner Head
3WP4455979 Whirlpool Range Small Burner Head
4W11213958 Whirlpool Oven Cooktop
58523855 Whirlpool Oven Manifold Panel
6WP8273103 Whirlpool Black Control Knob
8WPW10268483 Whirlpool Grate Kit
9WP3368921 Whirlpool Screw
10WP3196557 Whirlpool Screw
