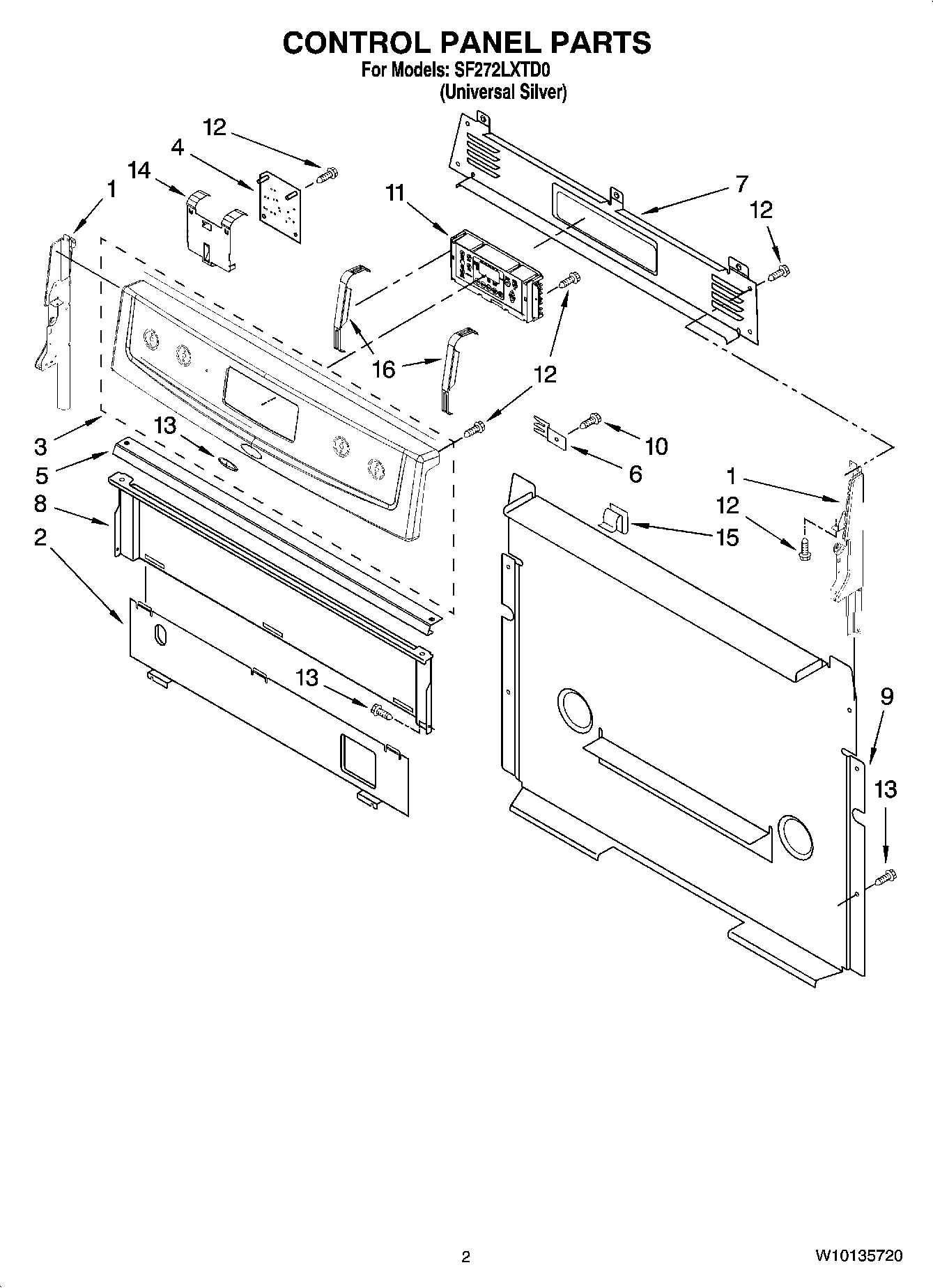

SF272LXTD0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
2	8053505 Whirlpool Oven Shield
3	Panel, Control (Silver for Stnlss)
4	WPW10331686 Whirlpool Oven Spark Module
5	Bracket, Console
6	8523412 Whirlpool Mounting Bracket
7	Cover, Upper
8	Shield, Heat
9	Cover, Lower
10	WP3196557 Whirlpool Screw
11	WPW10114374 Whirlpool Electronic Control Board
12	SCREW
13	Nameplate
14	Brkt-Mntg, DSI
15	WP8273564 Whirlpool Clip
16	BRACKET, MOUNTING EOC
