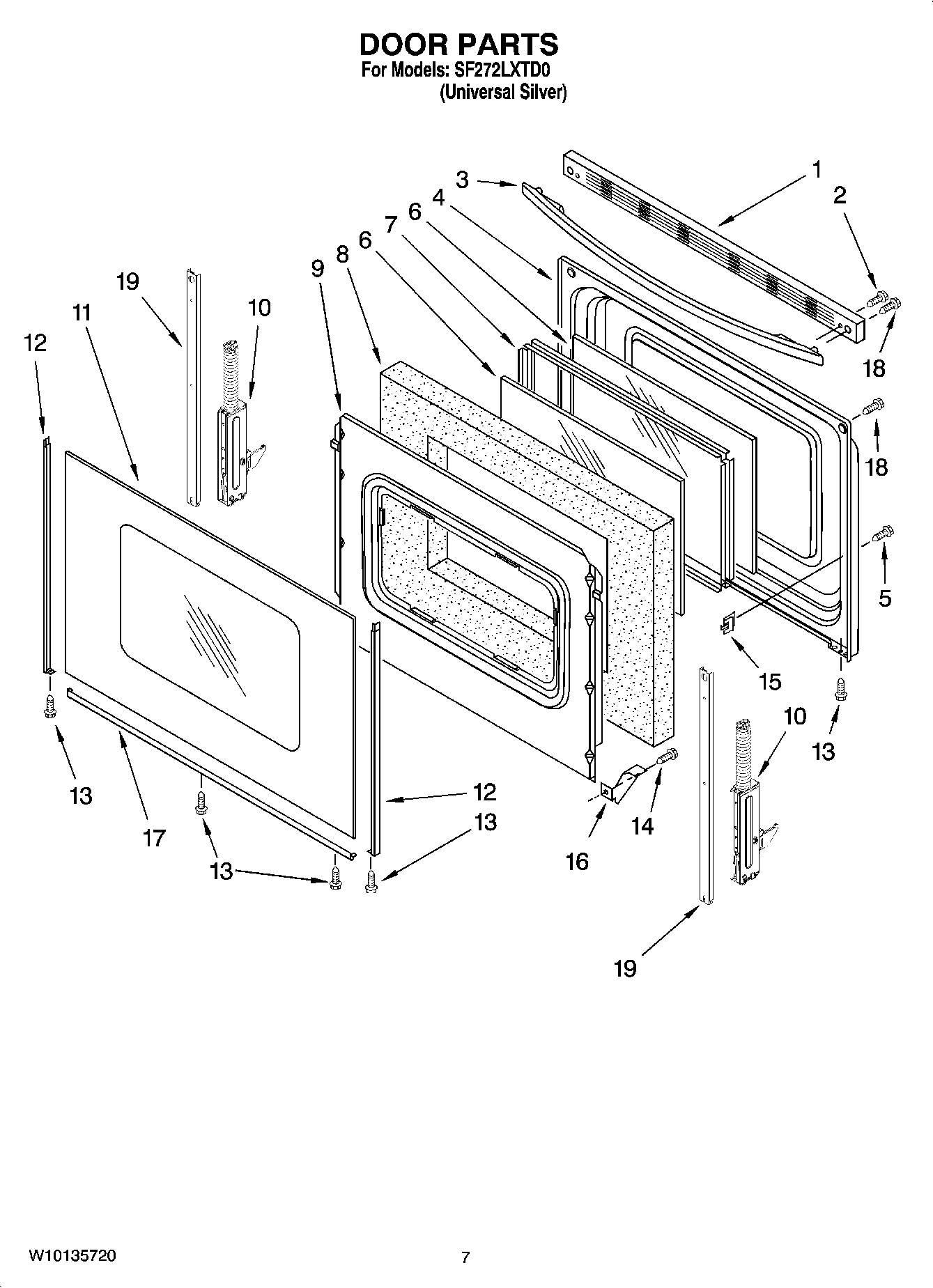

SF272LXTD0 05 – DOOR PARTS

Products

Position	Product
1	WP9762391 Whirlpool Door Trim Assembly
2	WP3196164 Whirlpool Screw
3	Handle, Door (Black)
4	WP9761344 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	W10347464 Whirlpool Door Hinge
11	Glass, Outer Door
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	W10761014 Whirlpool Right Door Trim
13	W10491985 Whirlpool Screw
14	WP3196175 Whirlpool Screw
15	Clip, Glass (4)
16	WP3196794 Whirlpool Glass Bracket
17	WP8523180 Whirlpool Door Trim Assembly
18	W10777162 Whirlpool Screw
19	W11502236 Whirlpool Door Trim
