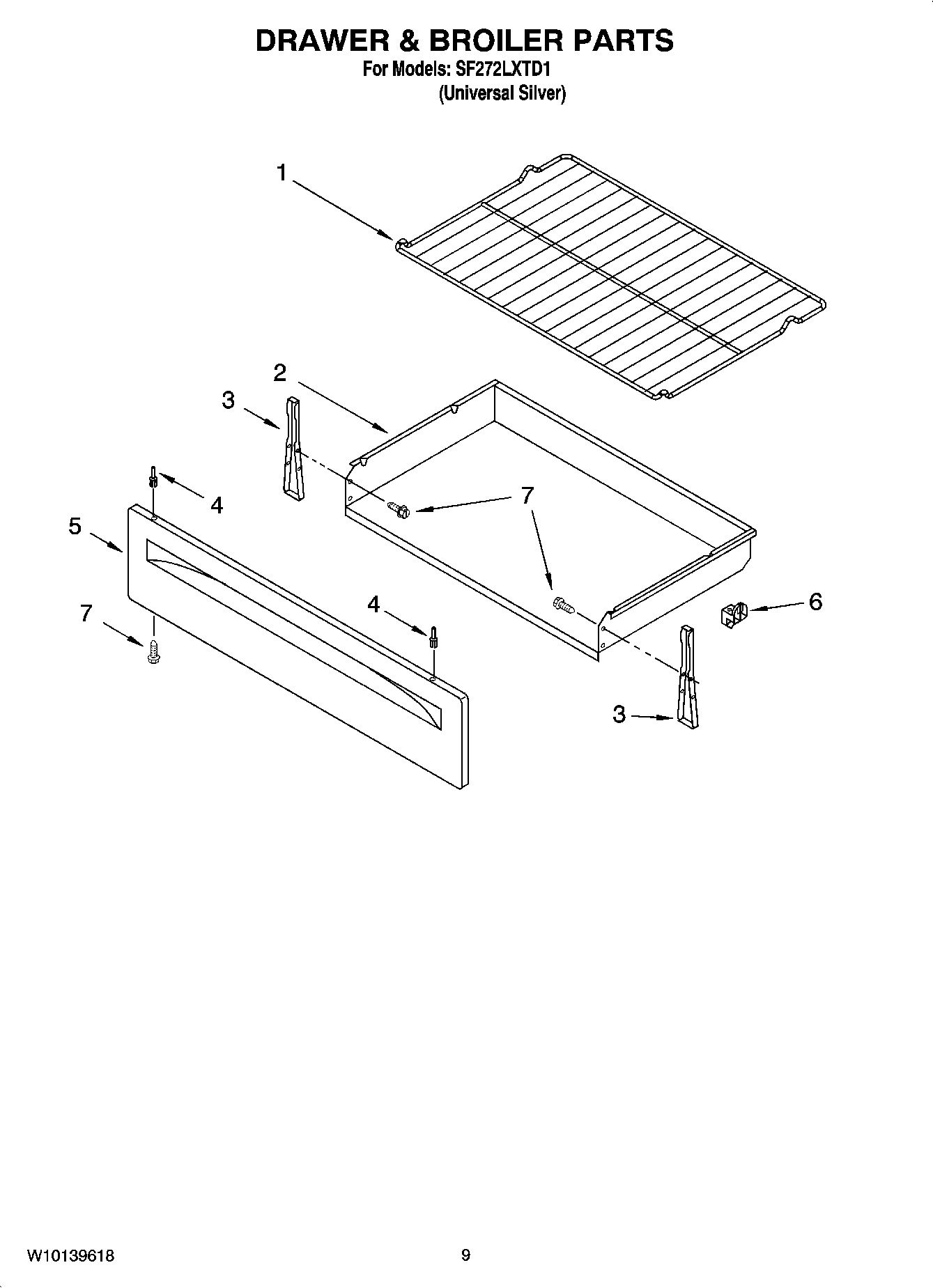

SF272LXTD1 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI129220A
	Grease
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	WP3196174 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	3196896 Whirlpool Clip
	W10045060 Whirlpool Grounding Wire
	8523599 Whirlpool Oven Wire Harness
	WPL ARI129219A
	WPL ARI129218A
	WPL ARI129217A
	WPL ARI129216A
	WPL ARI129215A
	Parts Not Illustrated and Optional Parts
	WPL W10082160
	WPL 8524207
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	Wire, 25` Roll (Red 14 Ga.)
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	242831 Whirlpool Oven Wire
	W11447673 Whirlpool Range Tip Anchor
	W11244557 Whirlpool Screw
	16515 Whirlpool Clip
	3400964 Whirlpool Oven Clip
1	WPW10256908 Whirlpool Oven Range Rack
2	Drawer, Storage
3	BRKT-MNTG
4	WP3196813 Whirlpool Rivet
5	W11226776 Whirlpool Drawer Panel
6	WP8053334 Whirlpool Drawer Glide
7	WP3400832 Whirlpool Screw
