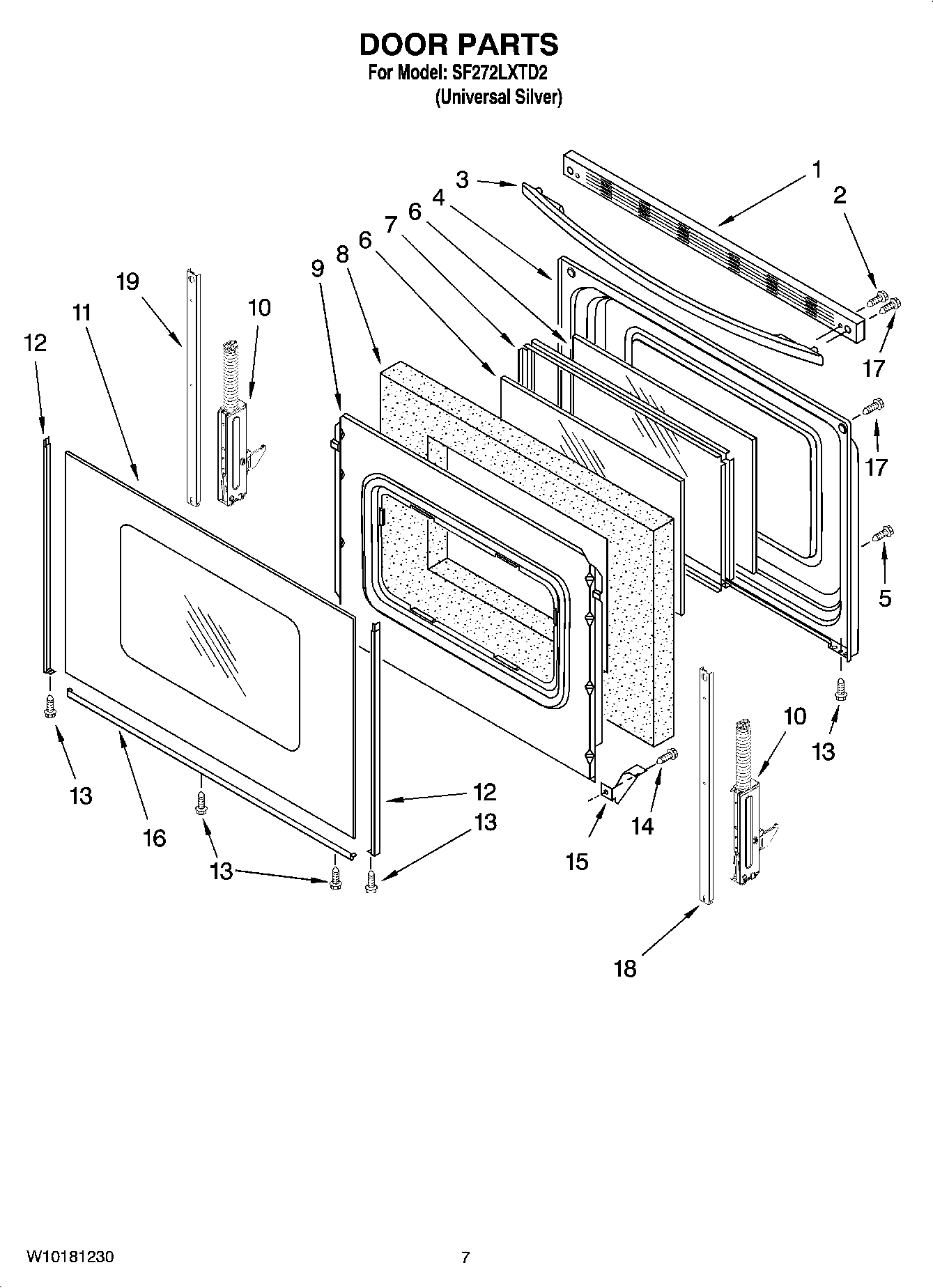

SF272LXTD2 05 – DOOR PARTS
Written by
in
SF272LXTD2 05 – DOOR PARTS
Products
Position
Product
1
WP9762391 Whirlpool Door Trim Assembly
2
WP3196164 Whirlpool Screw
3
Handle, Door (Black)
4
WP9761344 Whirlpool Door Liner
5
WPW10031790 Whirlpool Screw
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
W10347464 Whirlpool Door Hinge
11
Glass, Outer Door
12
W10761018 Whirlpool Dishwasher Left Door Trim
12
W10761014 Whirlpool Right Door Trim
13
W10491985 Whirlpool Screw
14
WP3196175 Whirlpool Screw
15
WP3196794 Whirlpool Glass Bracket
16
WP8523180 Whirlpool Door Trim Assembly
17
W10777162 Whirlpool Screw
18
W11502236 Whirlpool Door Trim
←
