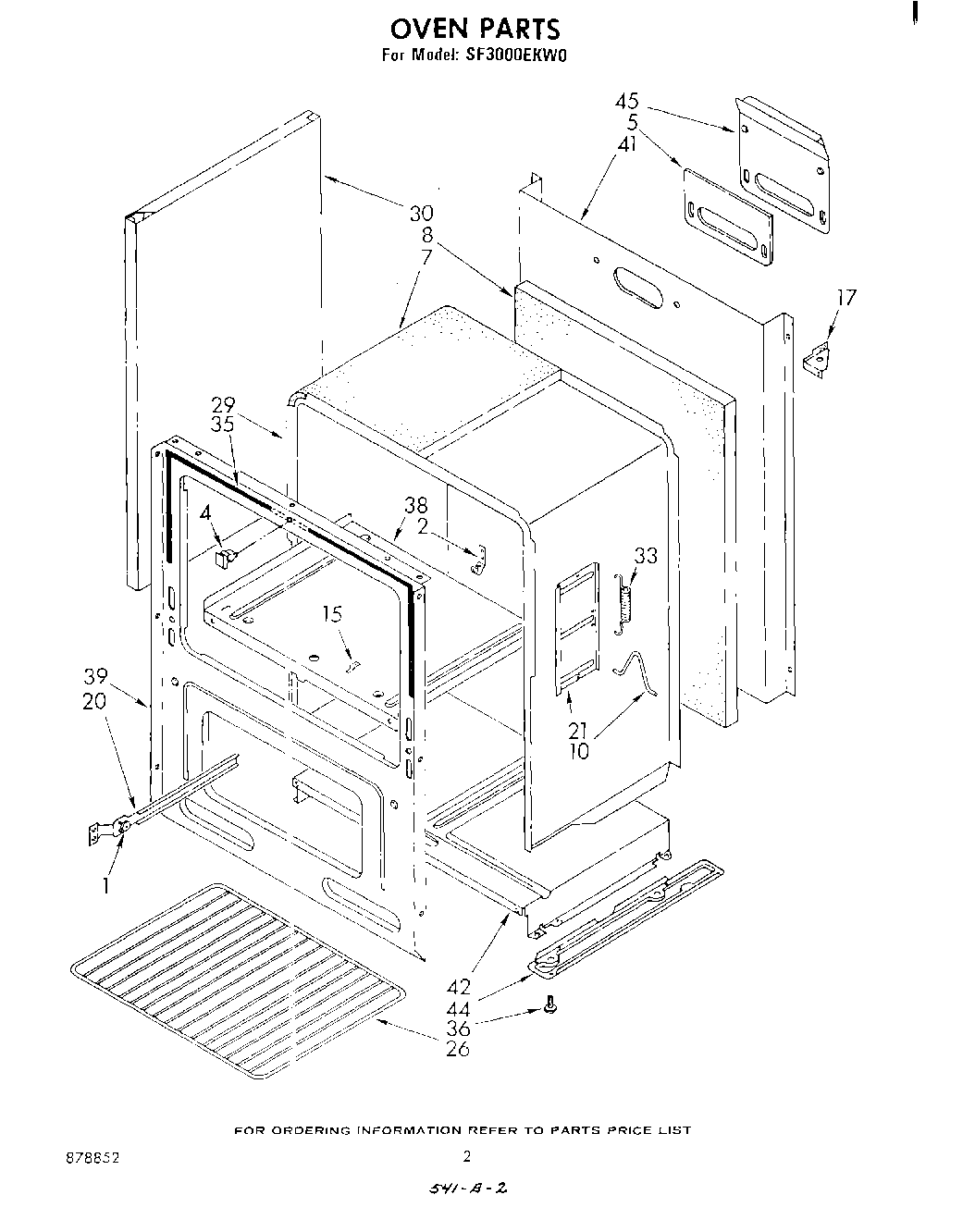

SF3000EKW0 02 – OVEN , LITERATURE

Products

Position	Product
1	Bearing, Roller (4)
2	98005642 Whirlpool Clip
4	Clip, Door Seal
5	Gasket, Vent Deflector
7	WPW10208653 Whirlpool Insulation
10	Link, Oven Door Spring (2)
15	Clip, Oven Bottom Plate (2)
17	Bracket, Corner Support (Left Side)
17	Bracket, Corner Support (Right Side)
20	Track, Broiler (Left Side)
20	Track, Broiler (Right Side)
21	Cover, Hinge (2)
26	Rack, Oven (2)
29	Oven, 30“ Standard (Not Serviceable)
30	Panel, End (2) (Coffee)
30	Panel, End (2) (Harvest Gold)
30	Panel, End (2) (White)
30	Panel, End (2) (Almond)
33	Spring, Oven Door (2)
35	Seal, Oven Door (Top)
35	Seal, Oven Door (Side (2))
36	Screw, Leveling (4)
38	Plate, Oven Bottom
39	Front, Main
41	Back, Main
42	Bottom, Main
44	Runner, Base (Left Side)
44	Runner, Base (Right Side)
45	Diagram, Wiring
45	Instructions, Installation
45	Booklet, Use & Care
45	Deflector, Vent
45	List, Repair Parts
