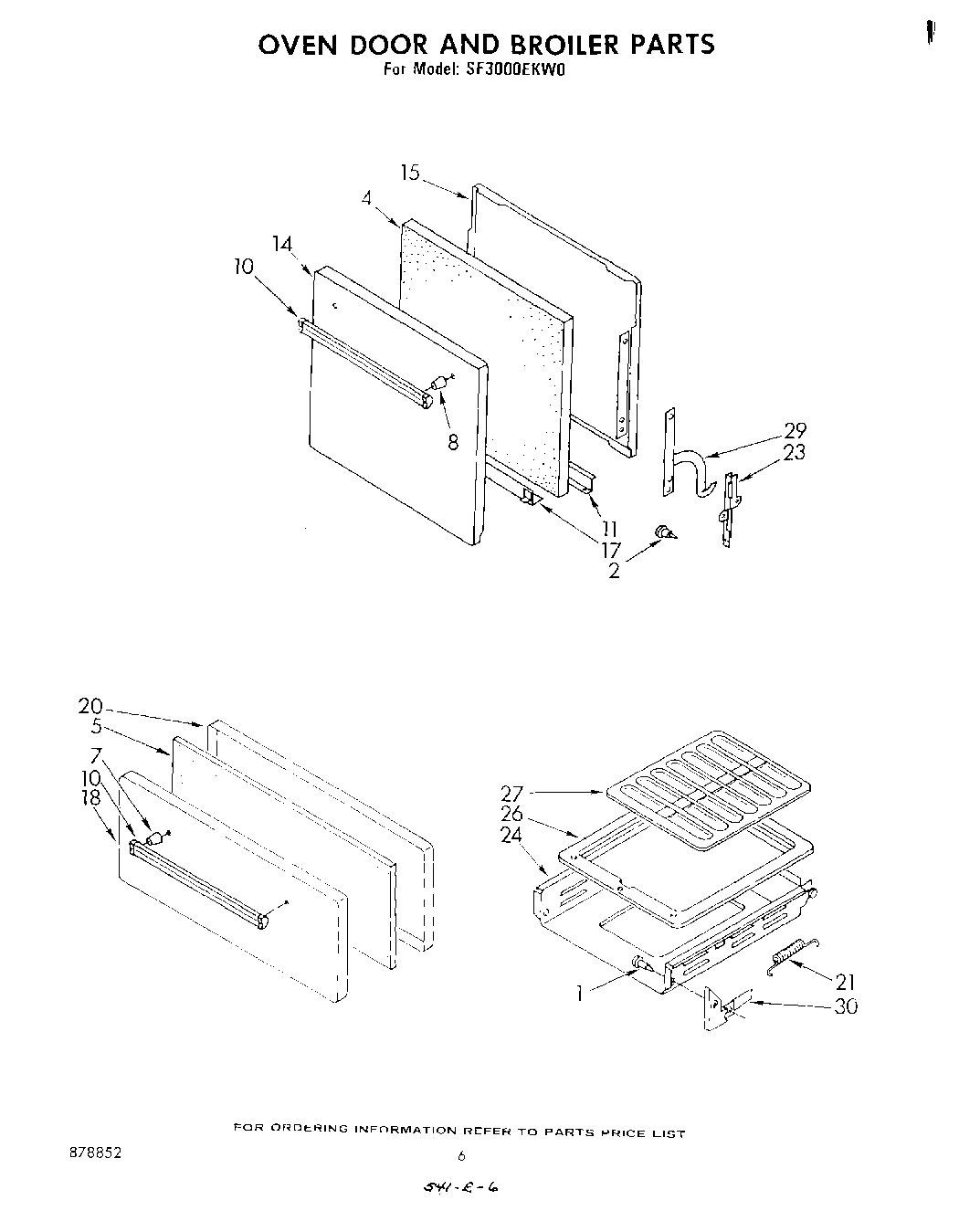

SF3000EKW0 04 – OVEN DOOR AND BROILER
Written by
in
SF3000EKW0 04 – OVEN DOOR AND BROILER
Products
Position
Product
1
Bolt, Shoulder 10-24 x 7/16
2
Bolt, Shoulder 10-24 x 7/16 (2)
4
WPW10208653 Whirlpool Insulation
5
Insulation, Broiler Door
7
Spacer, Broiler Door Handle (2)
8
Spacer, Oven Door Handle (2)
10
Handle, Broiler Door
11
Strip, Door Seal
14
Panel, Oven Door (Almond)
14
Panel, Oven Door (White)
14
Panel, Oven Door (Coffee)
14
Panel, Oven Door (Harvest Gold)
15
Lining, Oven Door
17
Retainer, Insulation
18
Panel, Broiler Door (Coffee)
18
Panel, Broiler Door (Harvest Gold)
18
Panel, Broiler Door (Black)
18
Panel, Broiler Door (White)
18
Panel, Broiler Door (Almond)
20
Lining, Broiler Door
21
Spring, Broiler Door (2)
23
Support, Oven Door Hinge (Left Side)
23
Support, Oven Door Hinge (Right Side)
24
Drawer, Broiler
26
Pan, Broiler
27
Tray, Broiler Pan
29
Hinge, Oven Door (2)
30
Hinge, Broiler Door (Left Side)
30
Hinge, Broiler Door (Right Side)
←
