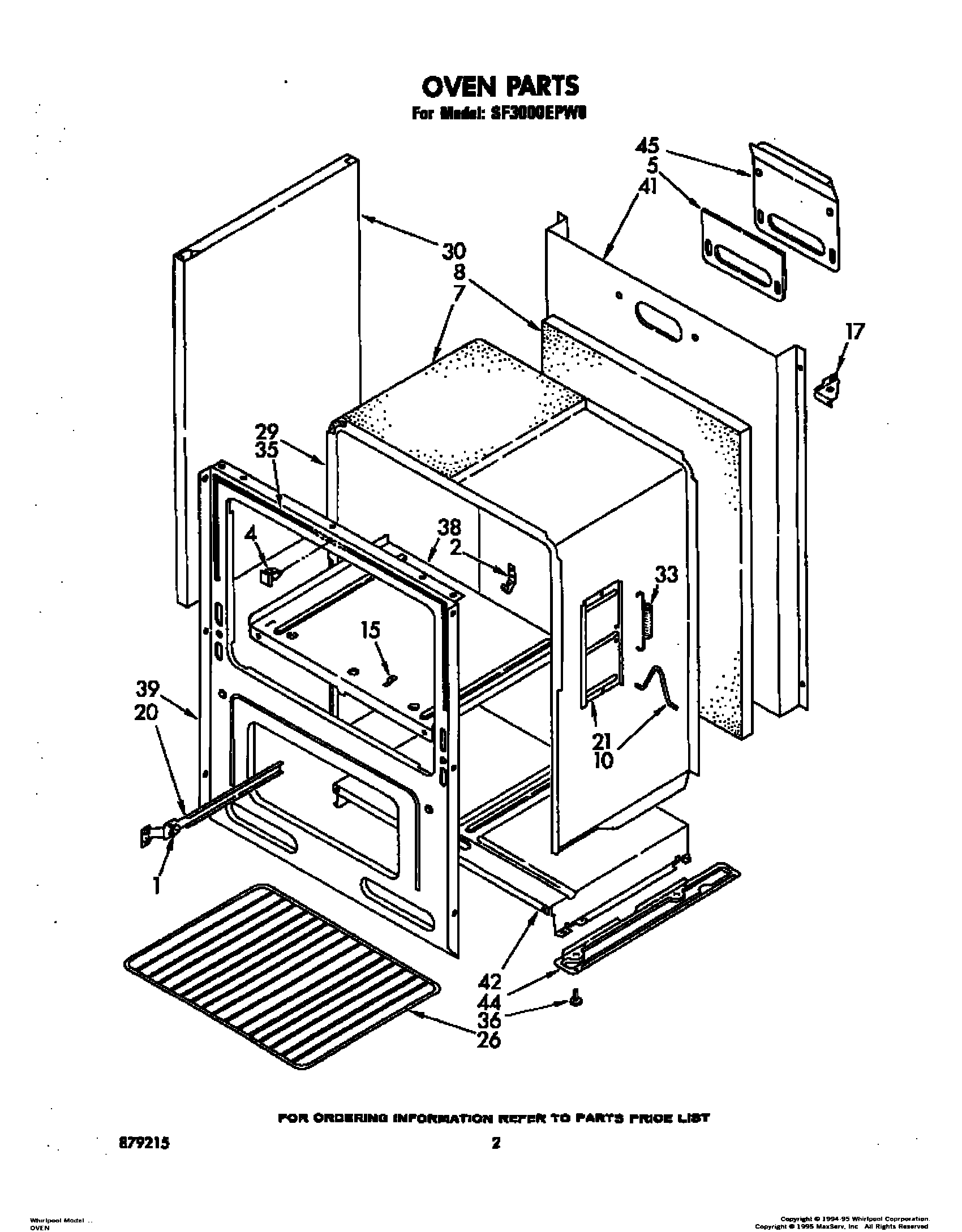

SF3000EPW0 02 – OVEN, LIT/OPTIONALadmin2025-04-26T12:55:43+00:00SF3000EPW0 02 – OVEN, LIT/OPTIONAL
Products
| Position | Product |
|---|
| List, Repair Parts |
| Diagram, Wiring |
| Diagram, Installation Instructions |
| Guide, Use & Care |
| Instructions, Installation |
| 1 | Bearing, Roller (4) |
| 2 | 98005642 Whirlpool Clip |
| 4 | Clip, Door Seal |
| 5 | Gasket, Vent Deflector |
| 7 | WPW10208653 Whirlpool Insulation |
| 10 | Link, Oven Door Spring (2) |
| 15 | Clip, Oven Bottom Plate (2) |
| 17 | Bracket, Corner Support (Left Side) |
| 17 | Bracket, Corner Support (Right Side) |
| 20 | Track, Broiler (Right Side) |
| 20 | Track, Broiler (Left Side) |
| 21 | Cover, Hinge (2) |
| 26 | Rack, Oven (2) |
| 29 | Oven, 30`` Standard (Not Serviceable) |
| 30 | Panel, End (2) (Platinum) |
| 30 | Panel, End (2) (Toast) |
| 30 | Panel, End (2) (Almond) |
| 30 | Panel, End (2) (White) |
| 33 | Spring, Oven Door (2) |
| 35 | Seal, Oven Door (Top) |
| 35 | Seal, Oven Door (Side (2)) |
| 36 | Screw, Leveling (4) |
| 38 | Plate, Oven Bottom |
| 39 | Front, Main |
| 41 | Back, Main |
| 42 | Bottom, Main |
| 44 | Runner, Base (Right Side) |
| 44 | Runner, Base (Left Side) |
| 45 | Deflector, Vent |
