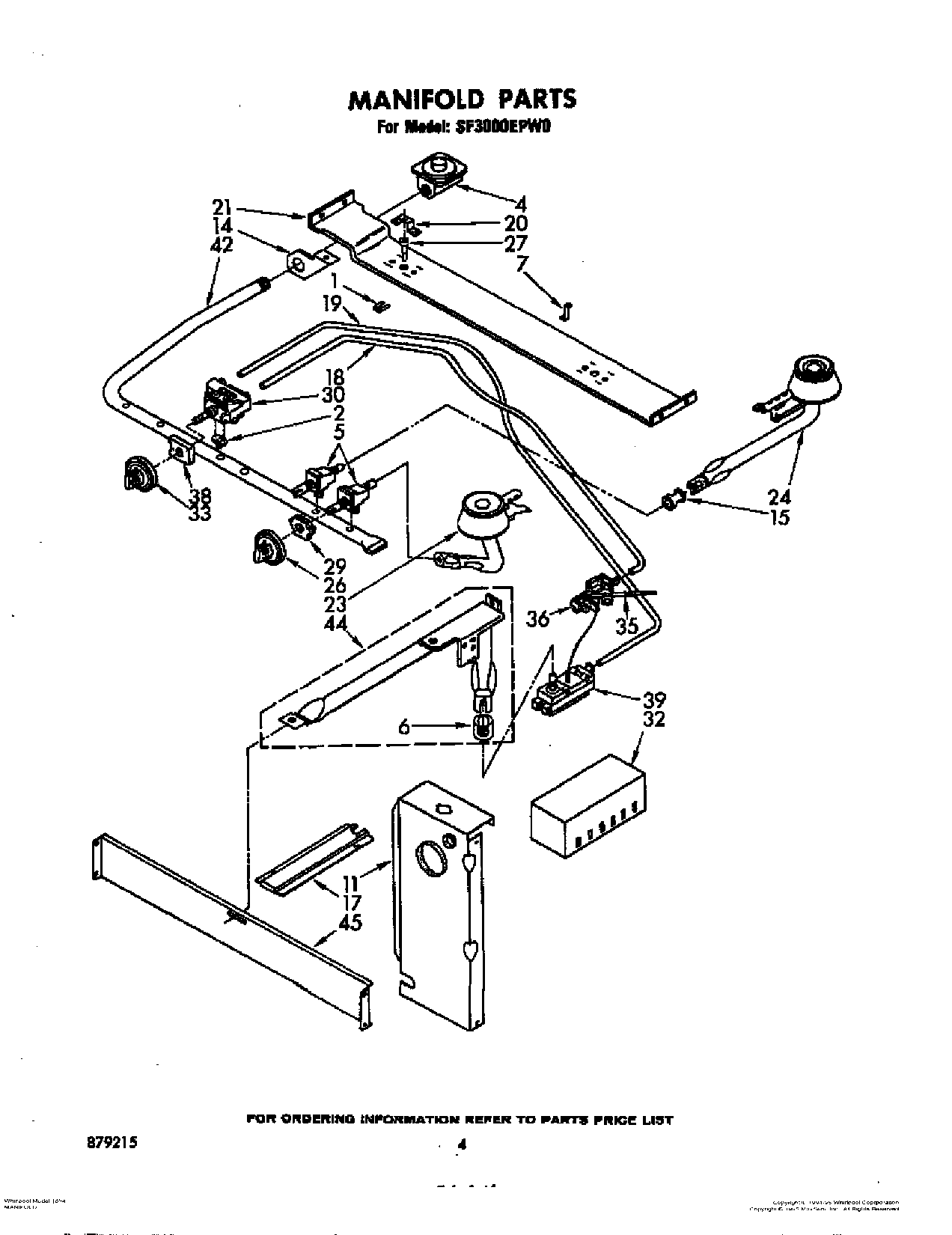

SF3000EPW0 03 – MANIFOLD

Products

Position	Product
1	Clip, Top Ignitor (2)
2	Fitting, Flange
4	Regulator, Pressure
5	Valve, Top Burner (4)
6	Shutter, Oven Burner Air
7	Support, Burner Hanger
11	Bracket, Wire
14	Support, Inlet Pipe
15	Cap, Top Burner Air Mixer
17	Raceway Wire
18	Tubing, Control/Pilot
19	Tubing, Oven
20	Target, Top Ignitor (2)
21	Hanger, Top Burner
23	Burner, Top Front (2) (Includes Illus. 16)
24	Burner, Top Rear (2) (Includes Illus. 16)
26	Handle, Top Valve (4)
27	Ignitor, Top Burner (Right Side)
27	Ignitor, Top Burner (Left Side)
29	Switch, Top Ignitor (4)
30	Control, Oven
32	Control, Ignitor
33	Dial, Oven Control
35	Ignitor, Oven Burner
36	Lighter, Oven Burner
38	WP878009 Whirlpool Igniter Switch
39	Valve, Oven Light Safety
42	Pipe, Manifold
44	Burner, Oven
45	Deflector, Heat
