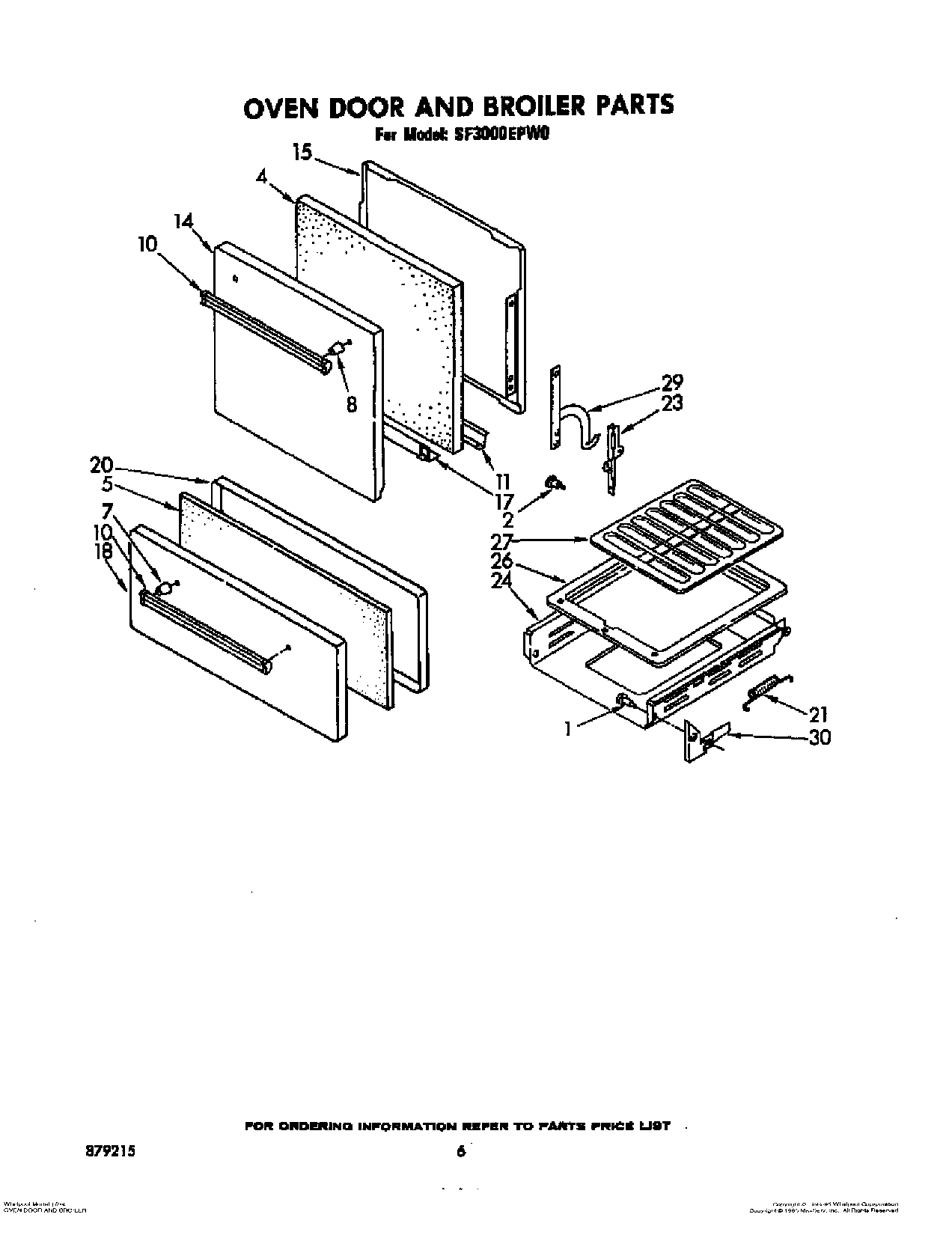

SF3000EPW0 05 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bolt, Shoulder 10-24 x 7/16
2	Bolt, Shoulder 10-24 x 7/16 (2)
4	WPW10208653 Whirlpool Insulation
5	Insulation, Broiler Door
7	Spacer, Broiler Door Handle (2)
8	Spacer, Oven Door Handle (2)
10	Handle, Broiler Door
11	Strip, Door Seal
14	Panel, Oven Door (Toast)
14	Panel, Oven Door (White)
14	Panel, Oven Door (Almond)
14	Panel, Oven Door (Platinum)
15	Lining, Oven Door
17	Retainer, Insulation
18	Panel, Broiler Door (White)
18	Panel, Broiler Door (Almond)
18	Panel, Broiler Door (Toast)
18	Panel, Broiler Door (Platinum)
20	Lining, Broiler Door
21	Spring, Broiler Door (2)
23	Support, Oven Door Hinge (Right Side)
23	Support, Oven Door Hinge (Left Side)
24	Drawer, Broiler
26	Pan, Broiler
27	Tray, Broiler Pan
29	Hinge, Oven Door (2)
30	Hinge, Broiler Door (Right Side)
30	Hinge, Broiler Door (Left Side)
