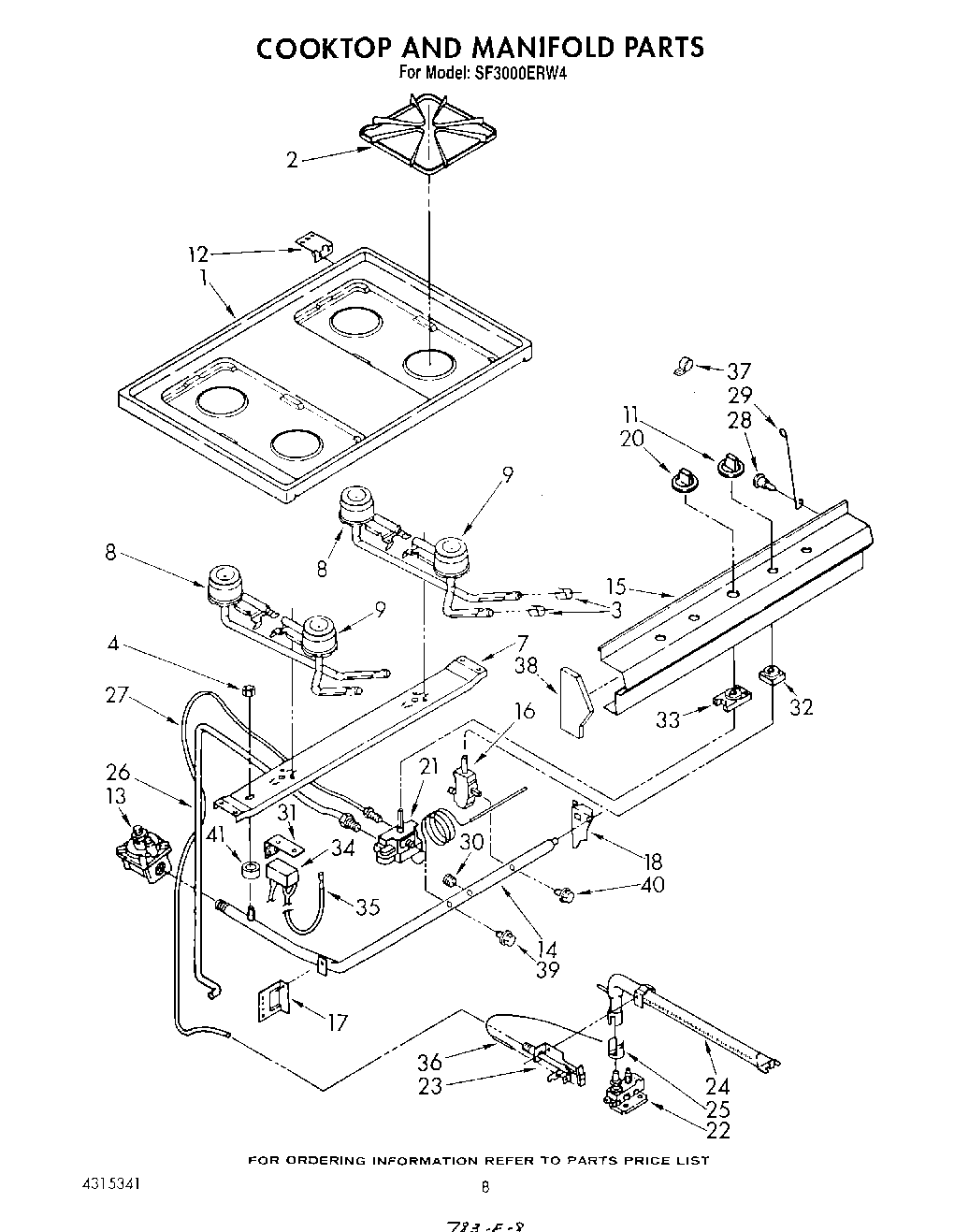

SF3000ERW4 06 – COOK TOP AND MANIFOLD , LIT/OPTIONAL

Products

Position	Product
	WPL LIT4315341
	Guide, Use & Care
	WPL LIT786735
	Guide, Cooking
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
11	WP4179282 Whirlpool Knob
12	Hinge, Maintop (2)
12	SCREW
12	Speed Clip (4)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat (Includes Ill. No. 45)
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	W10295523 Whirlpool Plug
31	Plate, Spark Module
32	WP4157180 Whirlpool Surface Burner Ignition Switch
33	WP878009 Whirlpool Igniter Switch
34	Module, Spark
35	Ignitor (Screw, 8 X 1/2 (4))
35	Ignitor (L.H.)
35	Ignitor (R.H.)
36	Ignitor, Oven
37	Strain Relief
38	Endcap (R.H.)
38	Endcap (L.H.)
39	Bolt, Thermostat Mounting (2)
40	Bolt, Valve Mounting
41	FOIL, ALUMINUM OVEN (18“ X 25 )
41	WPW10208653 Whirlpool Insulation
41	Spacer, Manifold
