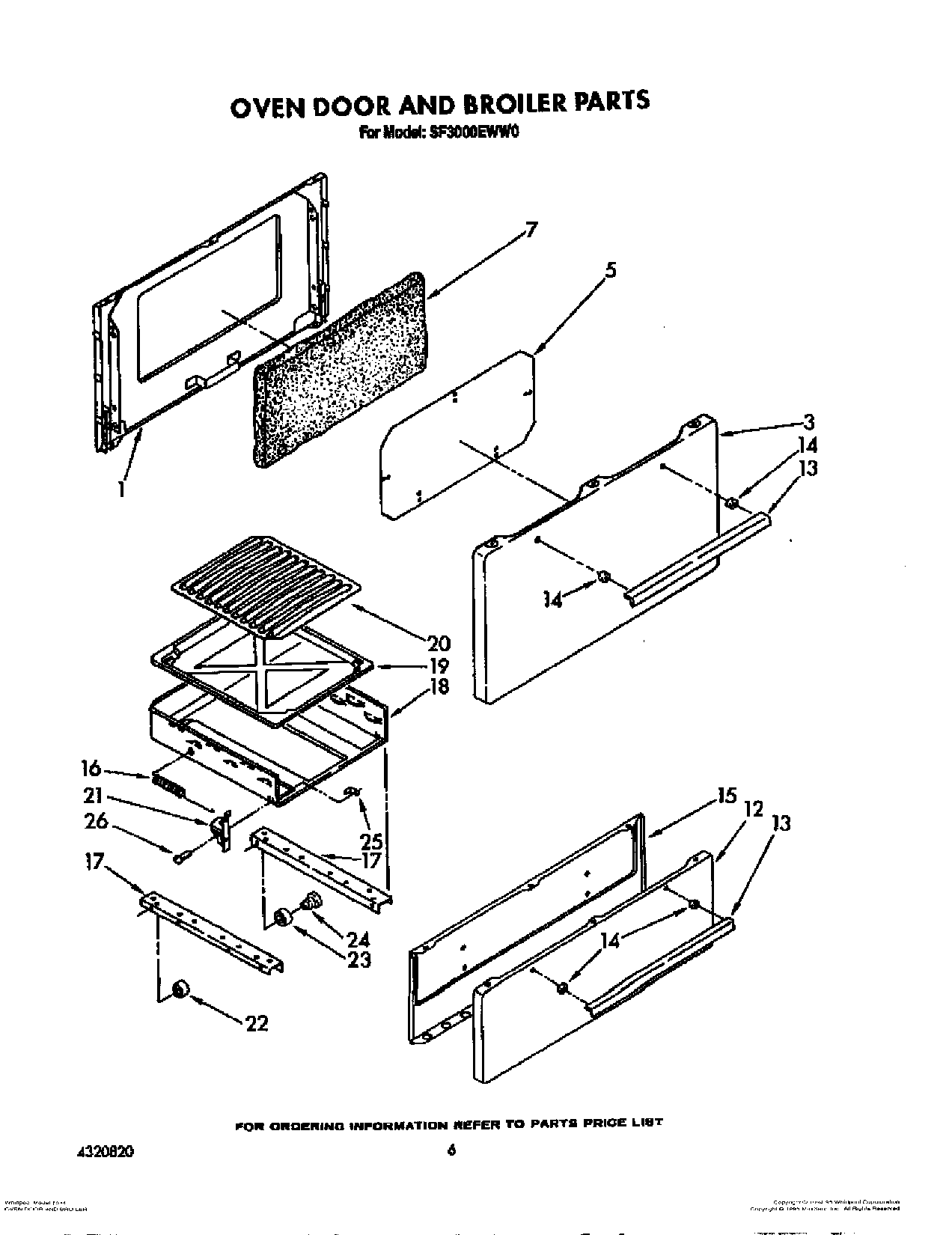

SF3000EWN0 05 – OVEN DOOR AND BROILER

SF3000EWN0 05 – OVEN DOOR AND BROILER

Written by

in

SF3000EWN0 05 – OVEN DOOR AND BROILER

Products

PositionProduct
1Lining
3Panel, Door (Almond)
3Panel, Door (White)
5Ring, Hold Down
7Insulation
12Panel, Broiler (Screw)
12Panel, Broiler (Almond)
12Panel, Broiler (White)
13Screw
13Handle, Door (2)
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (2)
18Liner, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21WP308685 Whirlpool Microwave Screw
21Hinge, Door (R.H.)
21W10080180 Whirlpool Nut
21Hinge, Door (L.H.)
22Bumper, Nylon (4)
23Roller (2)
24Pin, Roller (2)
25Plate (2)
26Screw (2)
