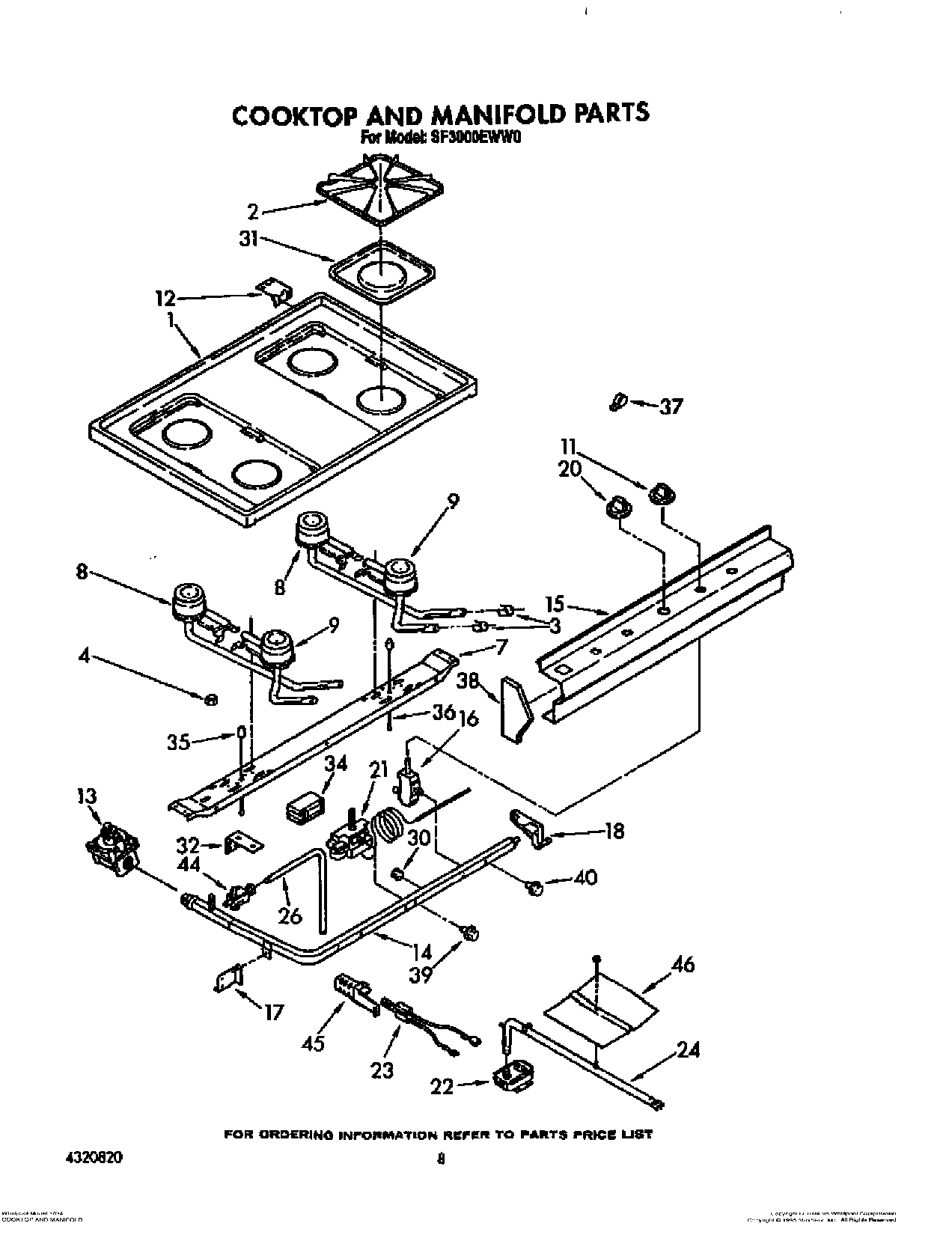

SF3000EWN0 06 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Use & Care Guide
	Instuctions, Installation
	Guide, Cooking
	R
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
11	WP4320580 Whirlpool Knob Assembly
12	Bracket, Support (2)
12	Hinge, Maintop (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
20	Knob, Thermostat
21	Thermostat
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
26	Burner, Oven
30	W10295523 Whirlpool Plug
31	Plate, Spark Module
32	WP4157180 Whirlpool Surface Burner Ignition Switch
34	Module, Spark
35	Ignitor (R.H.)
35	Ignitor (L.H.)
37	Strain Relief
38	Endcap (L.H.)
38	Endcap (R.H.)
39	Bolt, Thermostat Mounting (2)
40	Bolt, Valve Mounting
44	Valve, Shut Off
45	Bracket, Ignitor
46	Support, Rear (2)
46	WPW10208653 Whirlpool Insulation
46	FOIL, ALUMINUM OVEN (18“ X 25 )
46	Spreader, Flame
