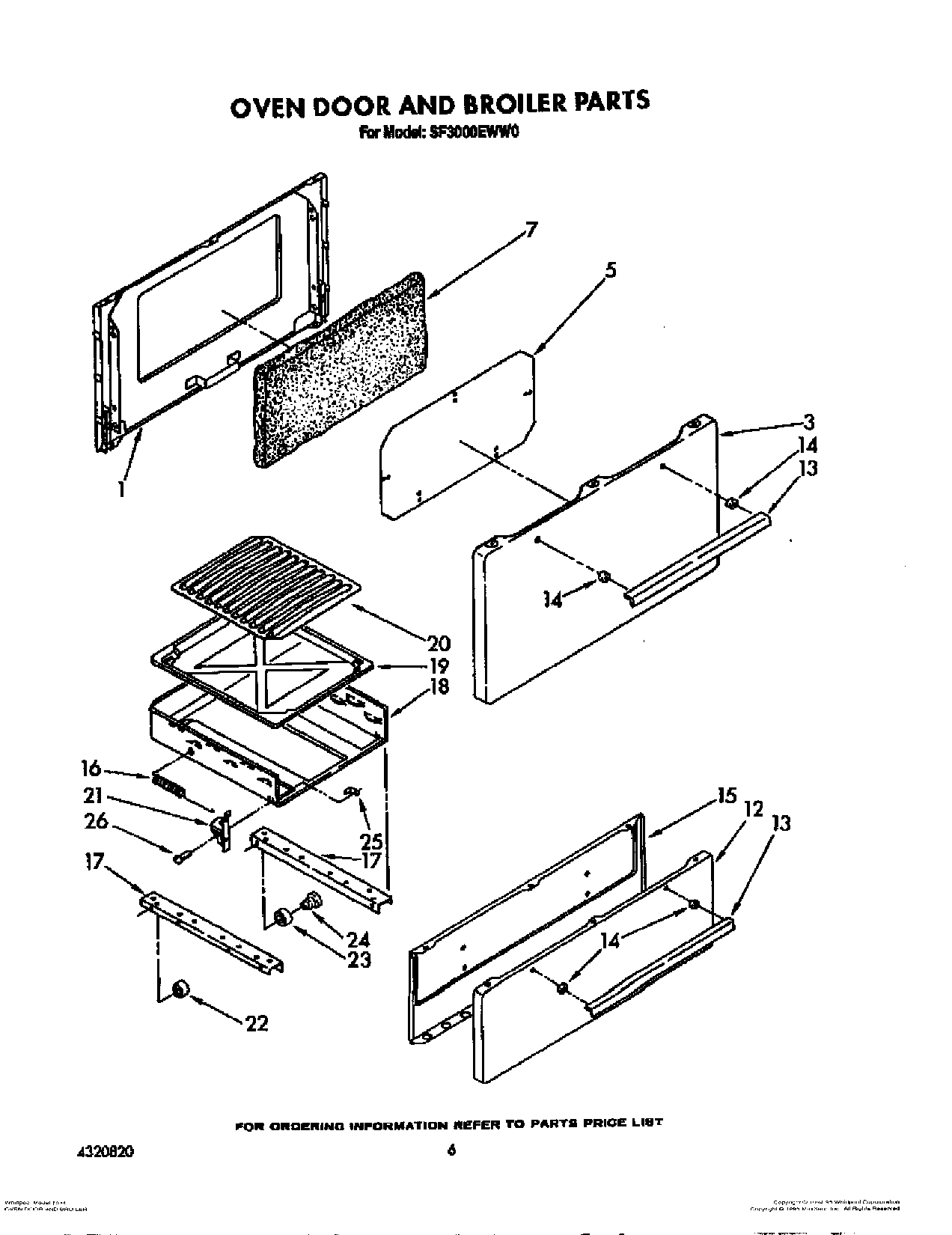

SF3000EWW0 05 – OVEN DOOR AND BROILER

Products

Position	Product
1	Lining
3	Panel, Door (Almond)
3	Panel, Door (White)
5	Ring, Hold Down
7	Insulation
12	Panel, Broiler (Screw)
12	Panel, Broiler (Almond)
12	Panel, Broiler (White)
13	Screw
13	Handle, Door (2)
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Upper (2)
18	Liner, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	WP308685 Whirlpool Microwave Screw
21	Hinge, Door (R.H.)
21	W10080180 Whirlpool Nut
21	Hinge, Door (L.H.)
22	Bumper, Nylon (4)
23	Roller (2)
24	Pin, Roller (2)
25	Plate (2)
26	Screw (2)
