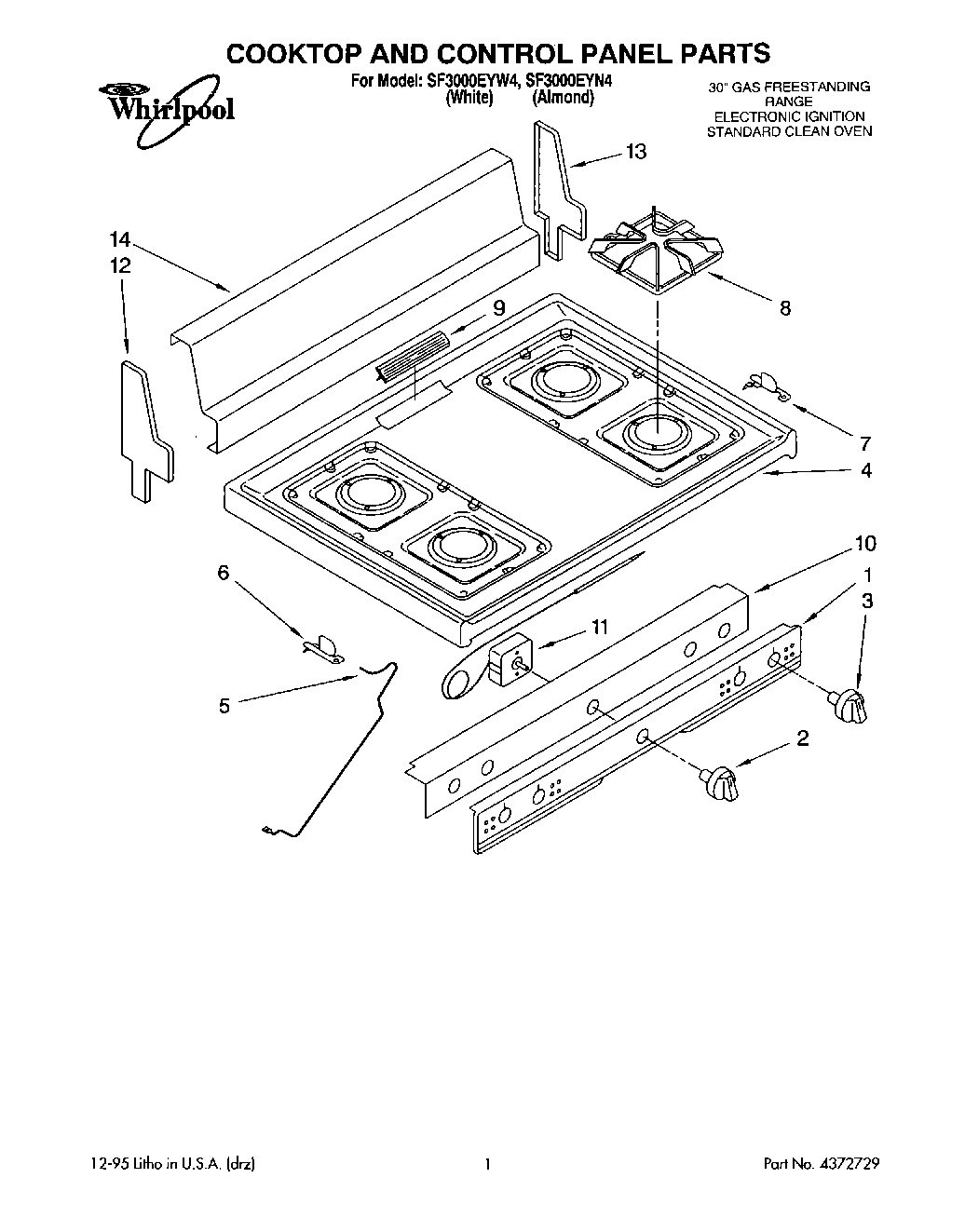

SF3000EYW4 01 – COOKTOP AND CONTROL PANEL, LITERATURE

Products

PositionProduct
Instructions, Installation
Guide, Use & Care
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (Almond)
4Top, Main (White)
5Rod, Support
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate (4)
9Cover, Vent
10Cover, Manifold
11Thermostat, Oven
12Endcap LH
13Endcap RH
14Panel, Backguard
