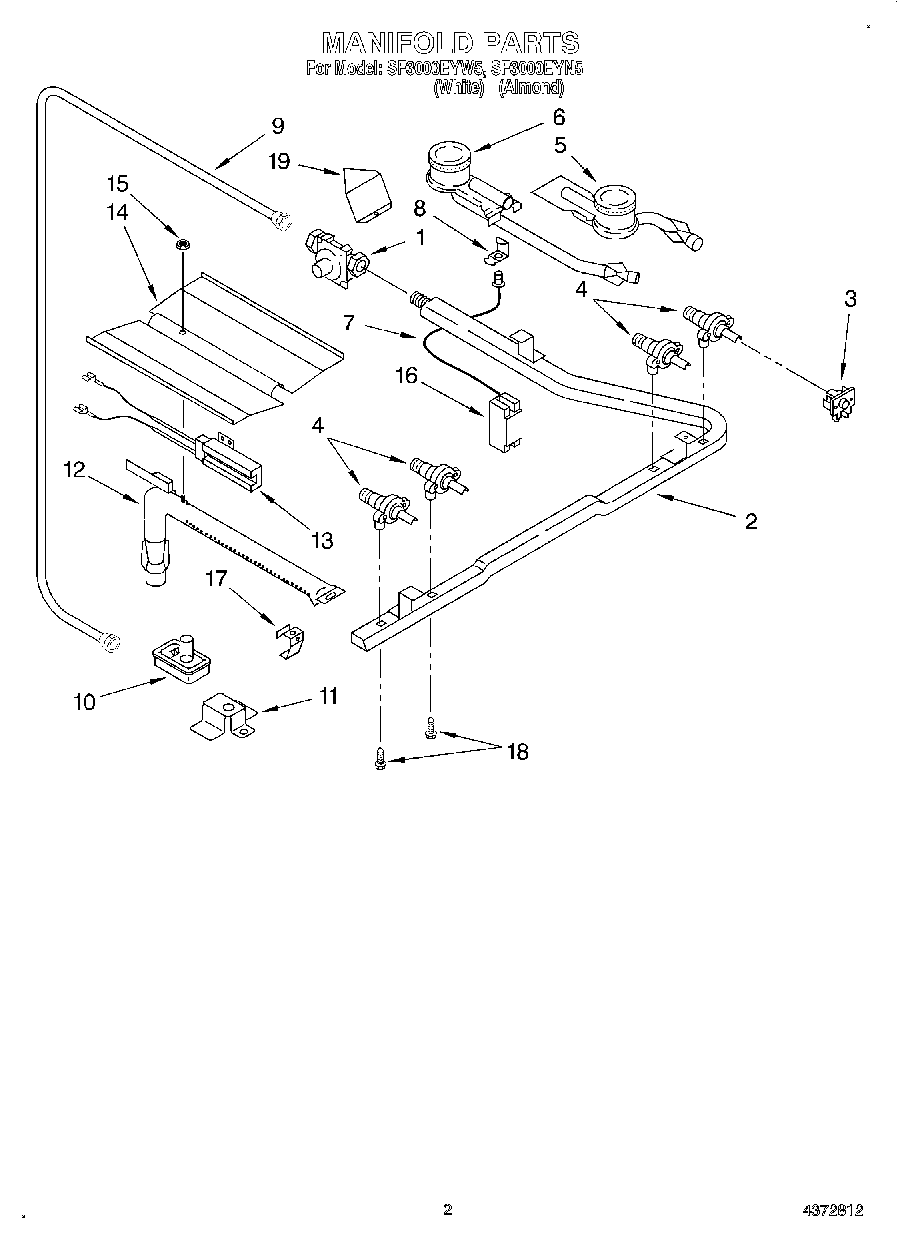

SF3000EYW5 02 – MANIFOLD

SF3000EYW5 02 – MANIFOLD

Written by

in

SF3000EYW5 02 – MANIFOLD

Products

Position	Product
1	Regulator, Pressure
2	Pipe, Manifold
3	Switch, Ignitor (4)
4	Valve, 2 pos (4) Includes Illus. 18
5	Burner, Front (2)
6	Burner, Rear (2)
7	Ignitor, Top Burner
8	Retainer, Ignitor
9	Tubing, Alum 3/8
10	Valve, Safety
11	Bracket, Valve
12	Burner, Oven
13	814269 Whirlpool Oven Flat Igniter
14	Baffle, Oven Burner
15	Nut, Hex (2)
16	Module, Spark
17	Bracket, Burner
18	WP3186217 Whirlpool Screw
19	Shield, Ignitor
